MIKROTIK Cloud Router Switch (CRS326-24S+2Q+RM)

MPN: CRS326-24S+2Q+RM
Order code: CRS326-24S+2Q+RM
Quick code: #1778

2x 40G QSFP+ ports, 24x 10G SFP+ ports, total nonblocking throughput of 320 Gbps, switching capacity of 640 Gbps with forwarding rate of 252 Mpps, dual power supply, RouterOS/SwOS (License level 5)

Price exc. VAT: Price inc. VAT: For orders (total sum):
333.64£ 400.37£ >0£
>300£
327.84£ 393.41£ >1000£
Qty:
  In stock


Features:

If you are working with substantial amount of data – like providing Internet access or maintaining a huge data center – this is the perfect upgrade for your setup. CRS326-24S+2Q+RM is MikroTik'a first product with 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection.

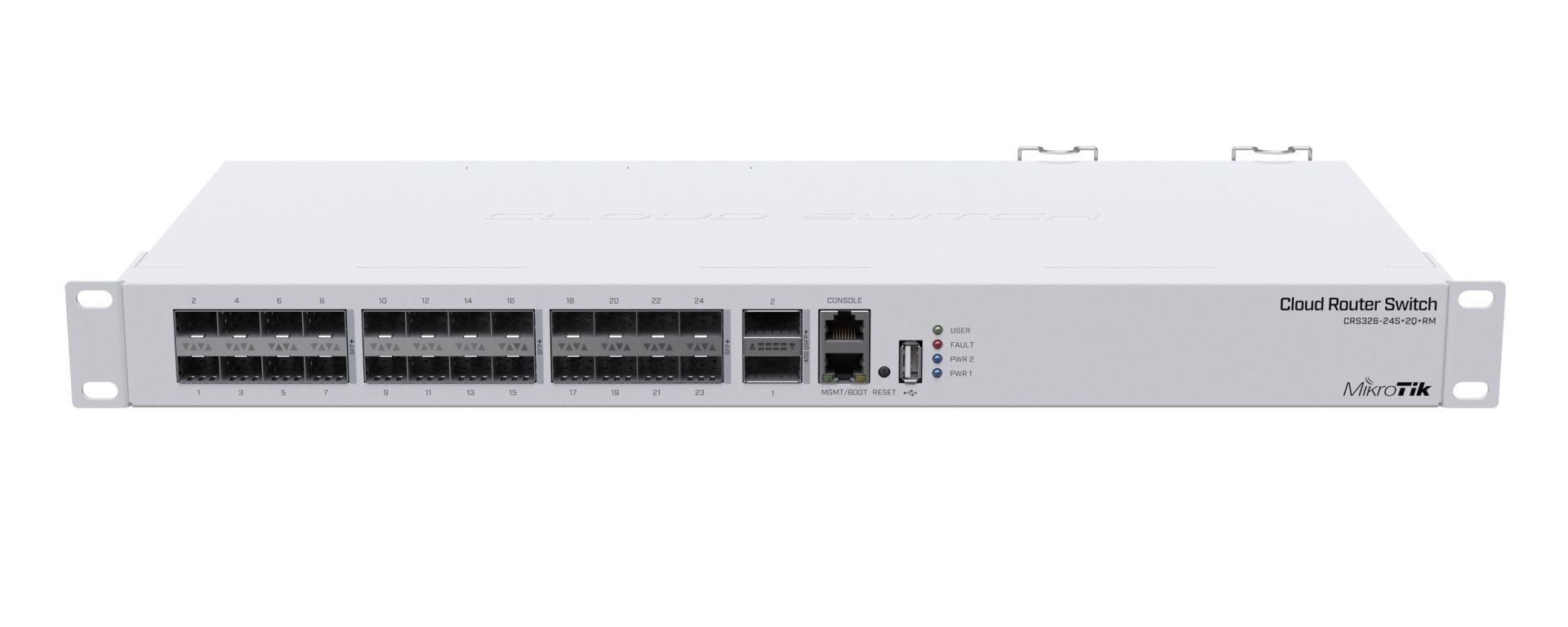

Overall it has two 40 Gbps QSFP+ ports and twenty four 10 Gbps SFP+ ports, which provides total nonblocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets.

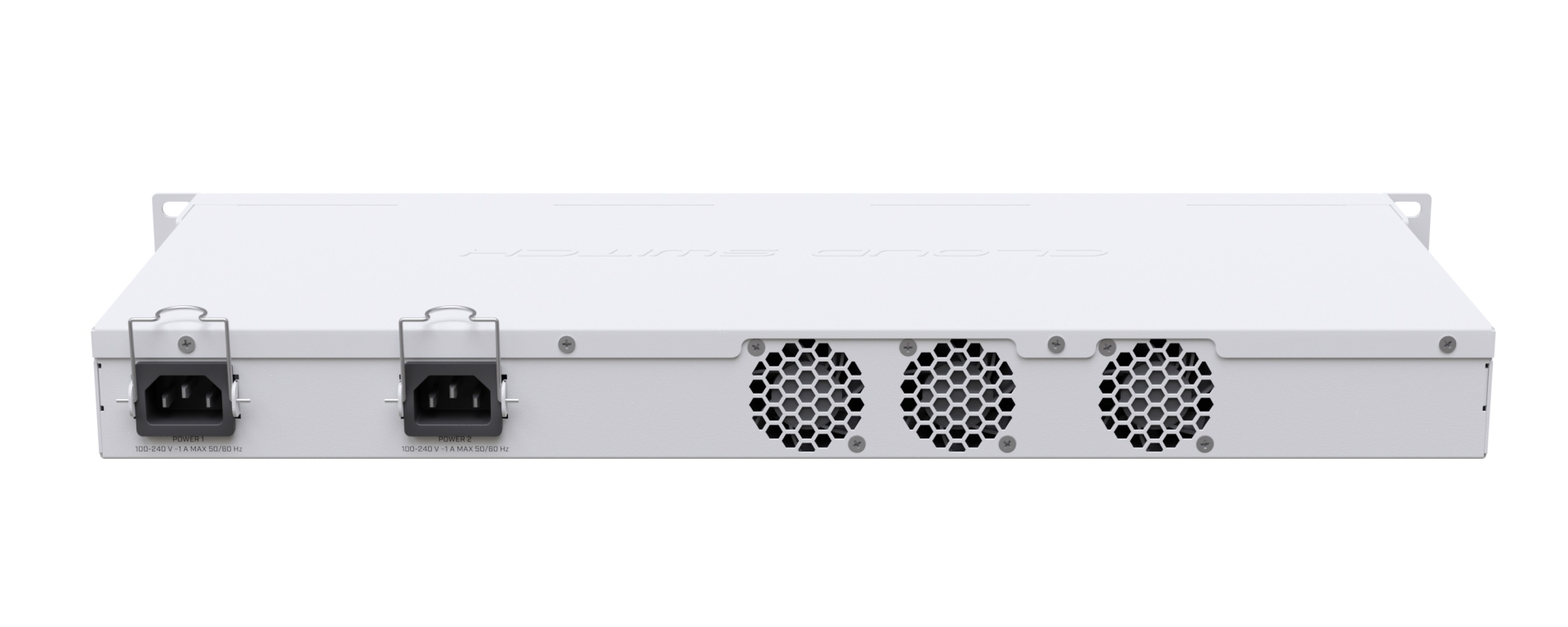

CRS326-24S+2Q+RM is easy to manage – it has a full size USB port for configuration and dual power supply for redundancy – no unexpected downtime, your clients and colleagues will be thankful!

You can choose between our legendary feature-packed RouterOS for booting or a simpler, but still powerful SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS

Specification:

Product code: CRS326-24S+2Q+RM
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Dimensions: 443 x 183 x 44 mm
Operating System: RouterOS or SwitchOS (License level 5)
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
Tested ambient temperature: -20°C to 60°C

Powering

Number of AC inputs: 2
AC input range: 100-240
Max power consumption: 69 W
Max power consumption without attachments: 42 W

Ethernet

10/100 Ethernet ports: 1

Fiber

SFP+ ports: 24
Number of 40G QSFP+ ports: 2

Peripherals

Serial port: RJ45
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
