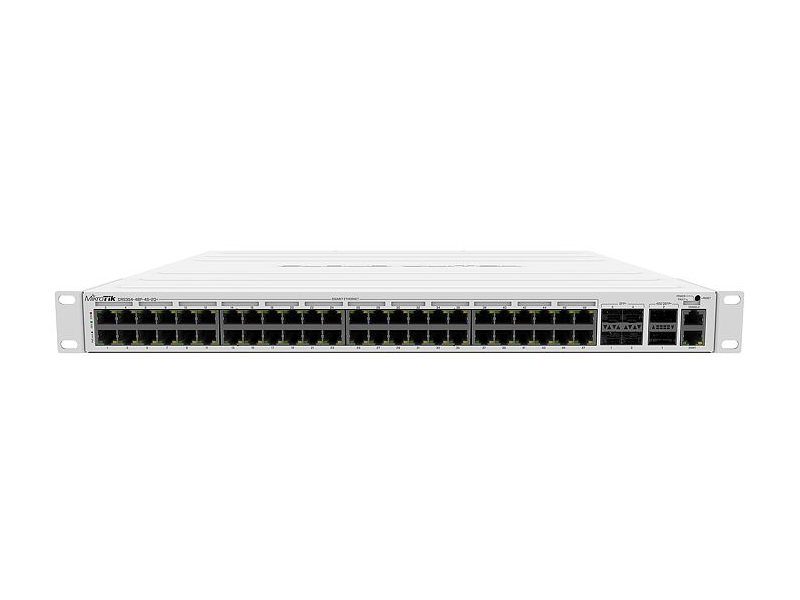

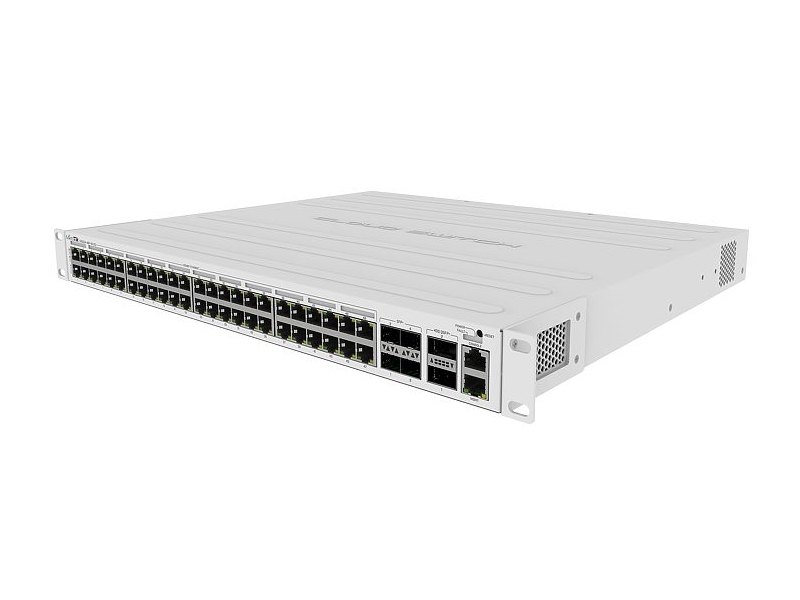

MIKROTIK Cloud Router Switch (CRS354-48P-4S+2Q+RM) (License level 5)

MPN: CRS354-48P-4S+2Q+RM
Order code: CRS354-48P-4S+2Q+RM
Quick code: #2269

Switch | The 48 port champion you’ve been waiting for - now with PoE-out! | 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports | Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing | The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Price exc. VAT: Price inc. VAT: For orders (total sum):
604.92£ 725.90£ >0£
599.71£ 719.65£ >300£
589.27£ 707.12£ >1000£
Qty:


Features:

If you are looking for a single switch that will put your network setup ahead of the curve and power all the necessary devices – look no further! The new CRS354-48P-4S+2Q+RM is an effective and adaptable rackmount solution for managing networks in the most demanding environments. Unlike many other switches out there, our products are made with the system administrator in mind.

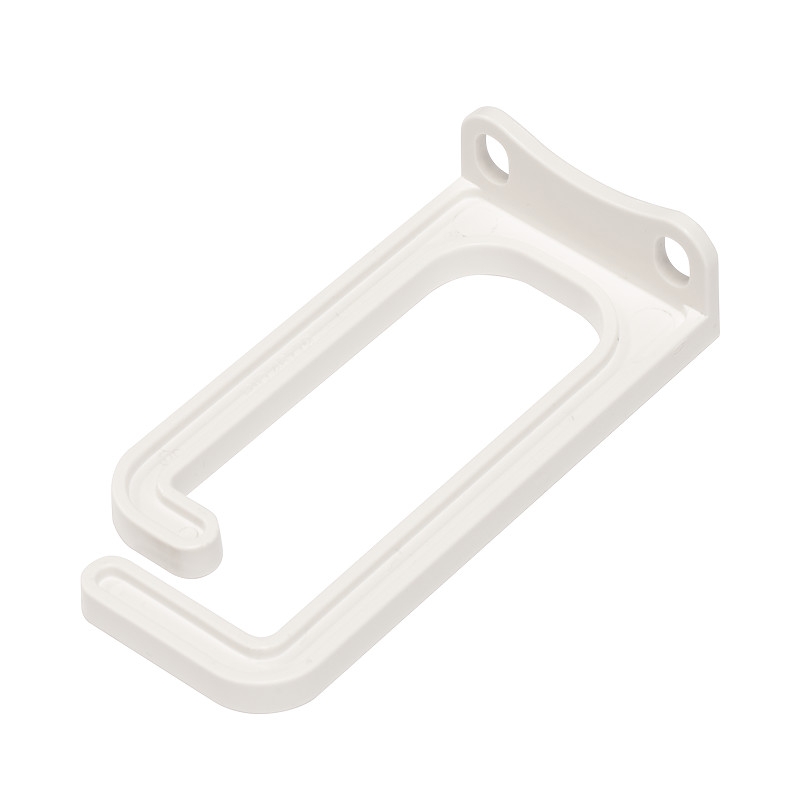

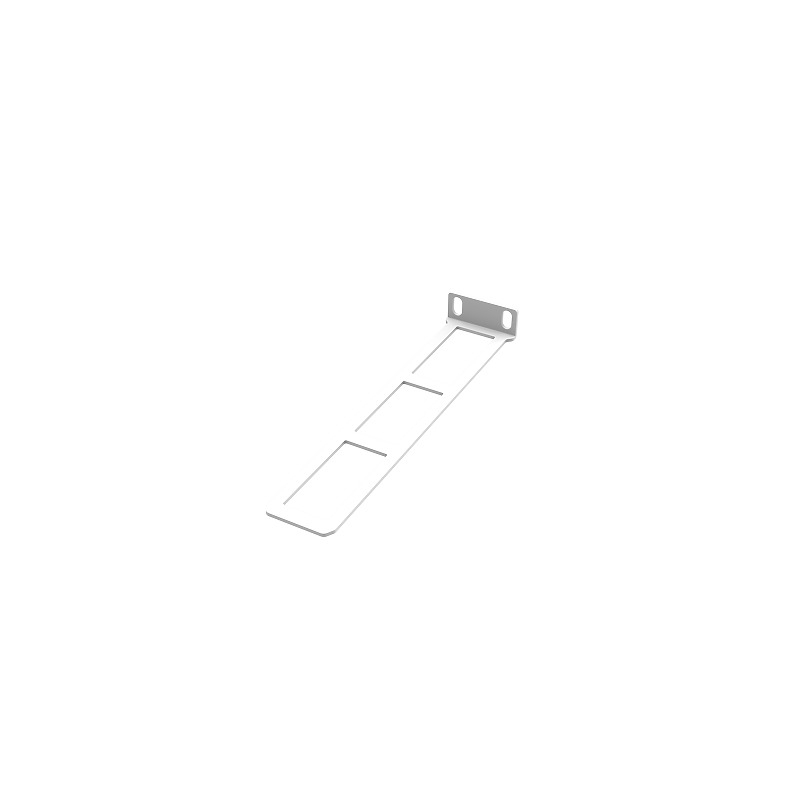

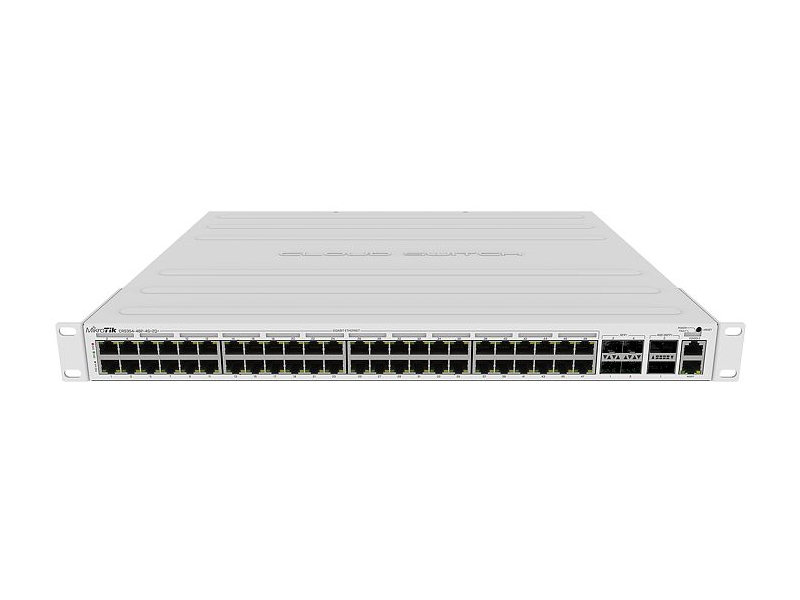

This powerful switch has 48 x 1G RJ45 ports and 4 x 10G SFP+ ports. There are also 2 x 40G QSFP+ ports for extremely fast fiber connections or linking with other 40 Gbps devices. All 48 Ethernet ports offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing, making this switch the easiest solution to power even the largest setups. We have included a mighty power supply that can provide 750 W of power – this switch can handle a lot. And there is a special bracket for easy cable management.

CRS354-48P-4S+2Q+RM is extremely functional, and it has the best price-point on the market – it will make the perfect addition to a professional setup.

The total non-blocking throughput is 168 Gbps, switching capacity is 336 Gbps and the forwarding rate reaches 235 Mpps.

Specification:

Product code

CRS354-48P-4S+2Q+RM

Architecture

MIPSBE

CPU

QCA9531

CPU core count

1

CPU nominal frequency

650 MHz

Dimensions

443 x 382 x 44 mm

License level

5

Operating System

RouterOS

Size of RAM

64 MB

Storage size

16 MB

Storage type

FLASH

Tested ambient temperature

-20°C to 60°C

Suggested price

$899.00

Powering

Number of AC inputs

1

AC input range

100-240

Max power consumption

800 W

Max power consumption without attachments

85 W

PoE-out

PoE-out ports

48 ports with 802.3af/at and passive modes

PoE out

802.3af/at

Max out per port output (input < 30 V)

1000 mA

Max out per port output (input > 30 V)

570 mA

Total output current

27A at 26V OR 13.2A at 53V

Total output power

700W

Ethernet

10/100 Ethernet ports

1

10/100/1000 Ethernet ports

48

Fiber

SFP+ ports

4

Number of 40G QSFP+ ports

2

Peripherals

Serial port

RJ45

Other

CPU temperature monitor

Yes

Current Monitor

Yes

PCB temperature monitor

Yes

Voltage Monitor

Yes

Certification & Approvals

Certification

CE/RED, EAC, ROHS
