MIKROTIK Cat.7 LTE Outdoor Router SXT LTE7 kit (SXTR&R11e-LTE7)
CAT.7 (up to 300Mbit/s Downlink and 50Mbit/s Uplink) LTE modem | 1x 802.3af/at PoE in and 1x Passive PoE (up to 57V) out 10/100 Ethernet ports | 2x Micro SIM slots | 1x MiniPCI-e slots | MIMO DL (2x2) | MIMO DL (1x1) | Carrier Aggregation | Router OS (License level 3)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 70.31£ | 84.37£ | >0£ |
| 69.71£ | 83.65£ | >300£ |
| 68.51£ | 82.21£ | >1000£ |
Features:
A rugged outdoor LTE CPE with the new R11e-LTE7 modem inside. Delivers stable, fast Internet where phones fail – ideal for farms, off-grid connections, and countryside estates. Now with better uplink, PoE in/out, and a wide 12–57 V power range. Mount it, connect, and stay online.

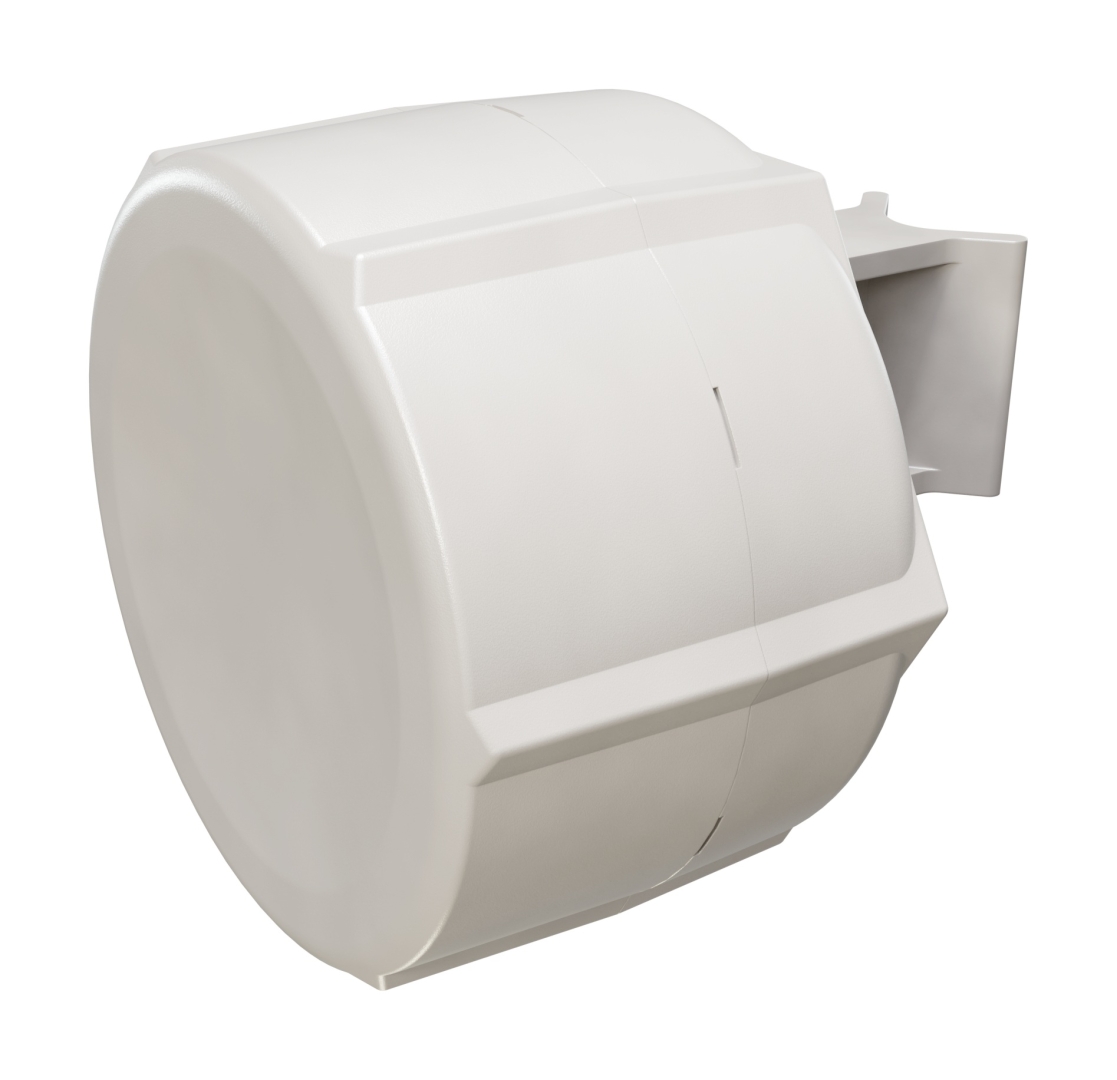

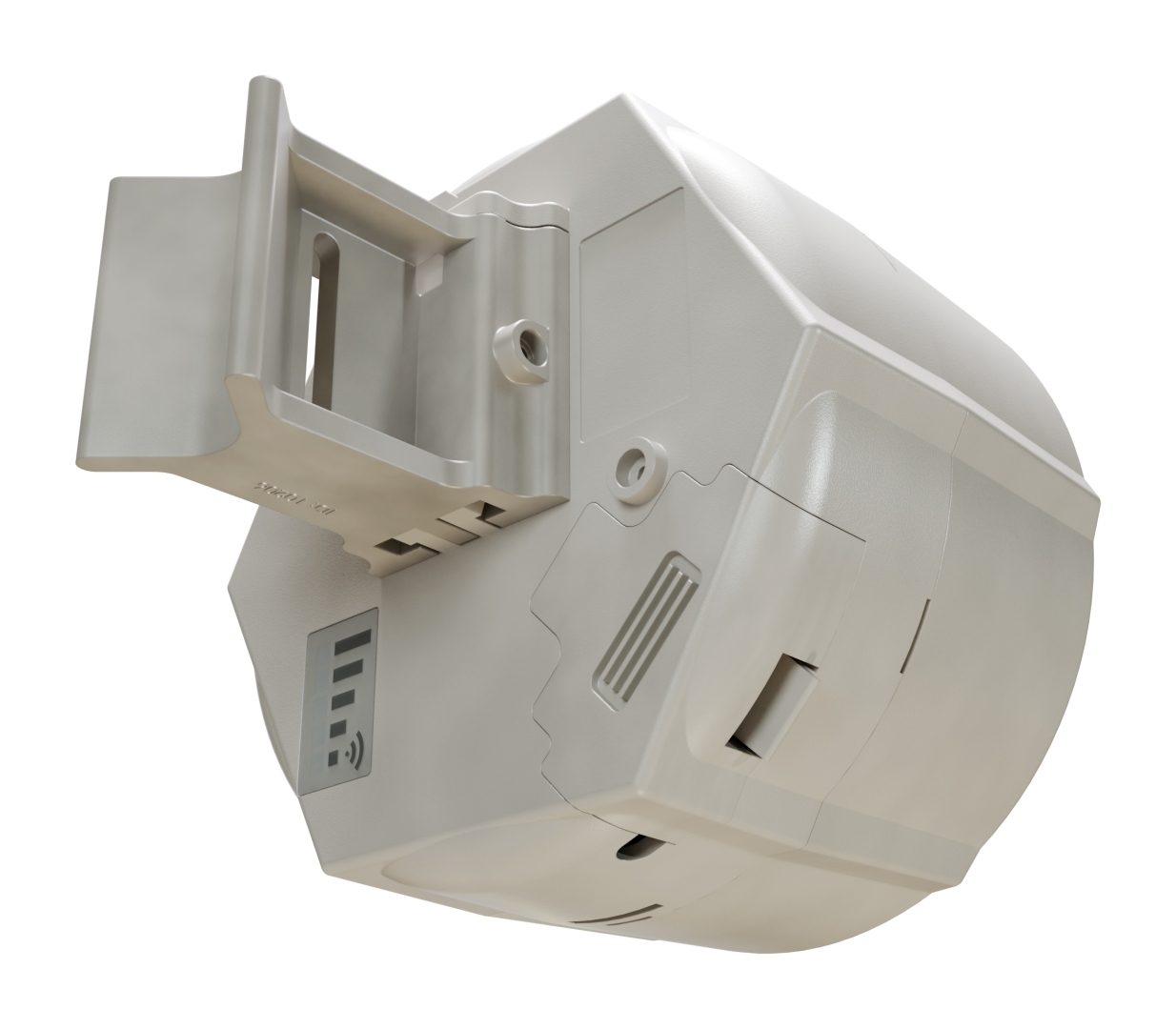

The SXT LTE7 kit is a rugged, outdoor LTE access point designed for remote and hard-to-reach locations that are still within cellular network coverage. It keeps the same trusted SXT enclosure that has proven itself in thousands of deployments worldwide – but now features a faster LTE Category 7 modem, delivering higher speeds, better stability, and improved performance in crowded or rural LTE networks.
Mount it outside, point it at the nearest tower, and always stay connected!
SXT has always been about reliable connectivity with minimal visual impact:
• Weatherproof/Snow-resistant
• Unobtrusive, durable and discreet
• Designed to attract less unwanted attention
The SXT LTE7 kit keeps everything that made the platform popular – and upgrades what matters most: mobile performance. With LTE Category 7, you get faster uploads, better responsiveness, and stronger connections without changing your installation or setup.
Two Micro-SIM slots included (2nd for backup). It never hurts to have extra options when itcomes to mobile network coverage. Also, the Category 7 LTE modem enables carrier aggregation,allowing SXT to use multiple LTE bands simultaneously. That’s a huge advantage when there area lot of mobile users in the area. It offers better responsiveness in a crowded environment. Andhigher efficiency for weaker signal situations in the countryside.

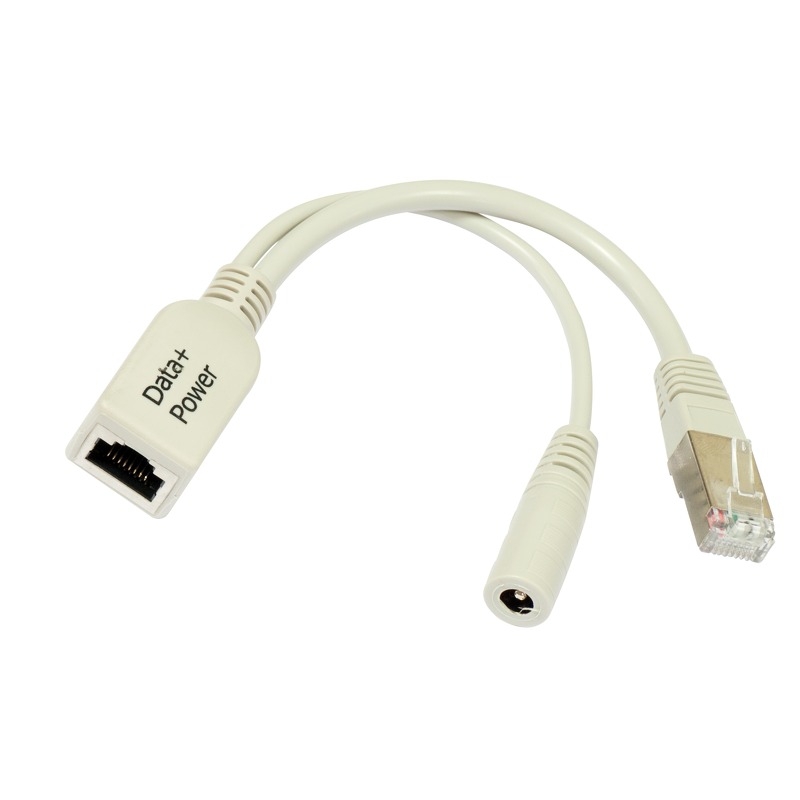

The unit is equipped with two Ethernet ports and PoE functionality: PoE-in on Ether1, PoE-out on Ether2. That means SXT can power other devices or be powered by other devices, making your cable management so much easier!
Unit is shipped with a 24 V power supply, but can support a wide range of 12-57 V and is 802.3af/at compliant.
Specification:
Product code: SXTR&R11e-LTE7
Architecture: MIPSBE
CPU: QCA9531
CPU core count: 1
CPU nominal frequency: 650 MHz
Switch chip model: QCA9531
RouterOS license: 3
Operating System: RouterOS v7
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 60°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 24 W
Max power consumption without attachments: 7 W
PoE in: 802.3af/at
Cooling type: Passive
PoE in input Voltage: 12-57 V
PoE-out
PoE-out ports: Ether2
PoE out: Passive PoE up to 57V
Low voltage PoE-Out current limit: 600 mA
High voltage PoE-Out current limit: 400 mA
Max total out (A): 600 mA
Mobile
3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
8 (900 MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100 MHz)
3 (1800 MHz)
5 (850 MHz)
7 (2600 MHz)
8 (900 MHz)
20 (800 MHz)
28 (700 MHz)
32 (1500 MHz)
LTE TDD bands
38 (2600 MHz)
40 (2300 MHz)
41 (2500 MHz)
TAC 35312597
Ethernet
10/100 Ethernet ports: 2
Peripherals
Number of SIM slots: 2 Modem (Micro SIM)
MiniPCI-e slots: 1
Other
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 54
