MIKROTIK outdoor wireless device with an integrated antenna SXTsq Lite5 (RBSXTsq5nD)
16dBi outdoor wireless CPE with built-in 5 GHz 802.11a/n, 1 x PoE LAN, Router OS (Licenese level 3)
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 29.59£ | 35.51£ | >0£ |
| 29.34£ | 35.21£ | >300£ |
| 28.83£ | 34.60£ | >1000£ |
Features:

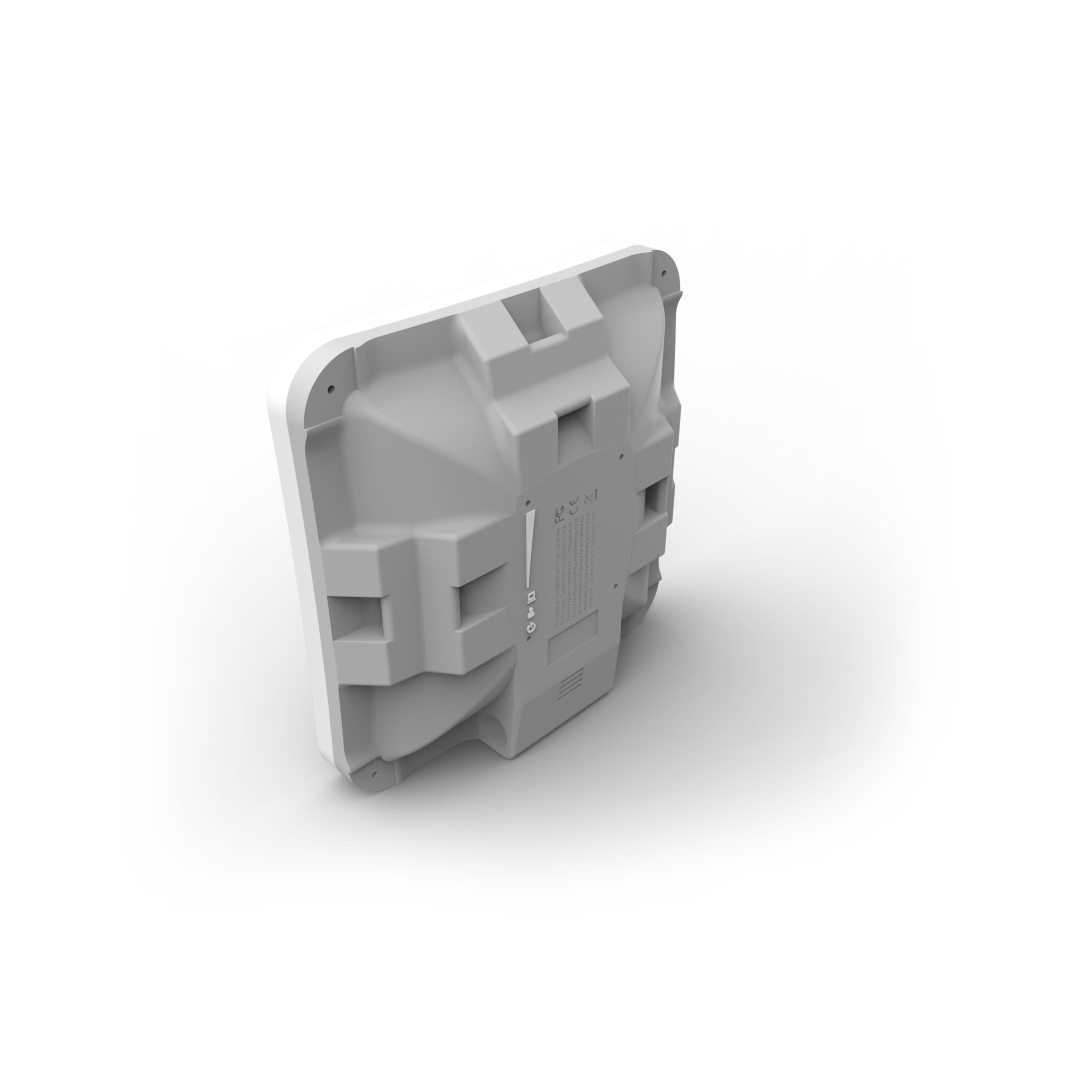

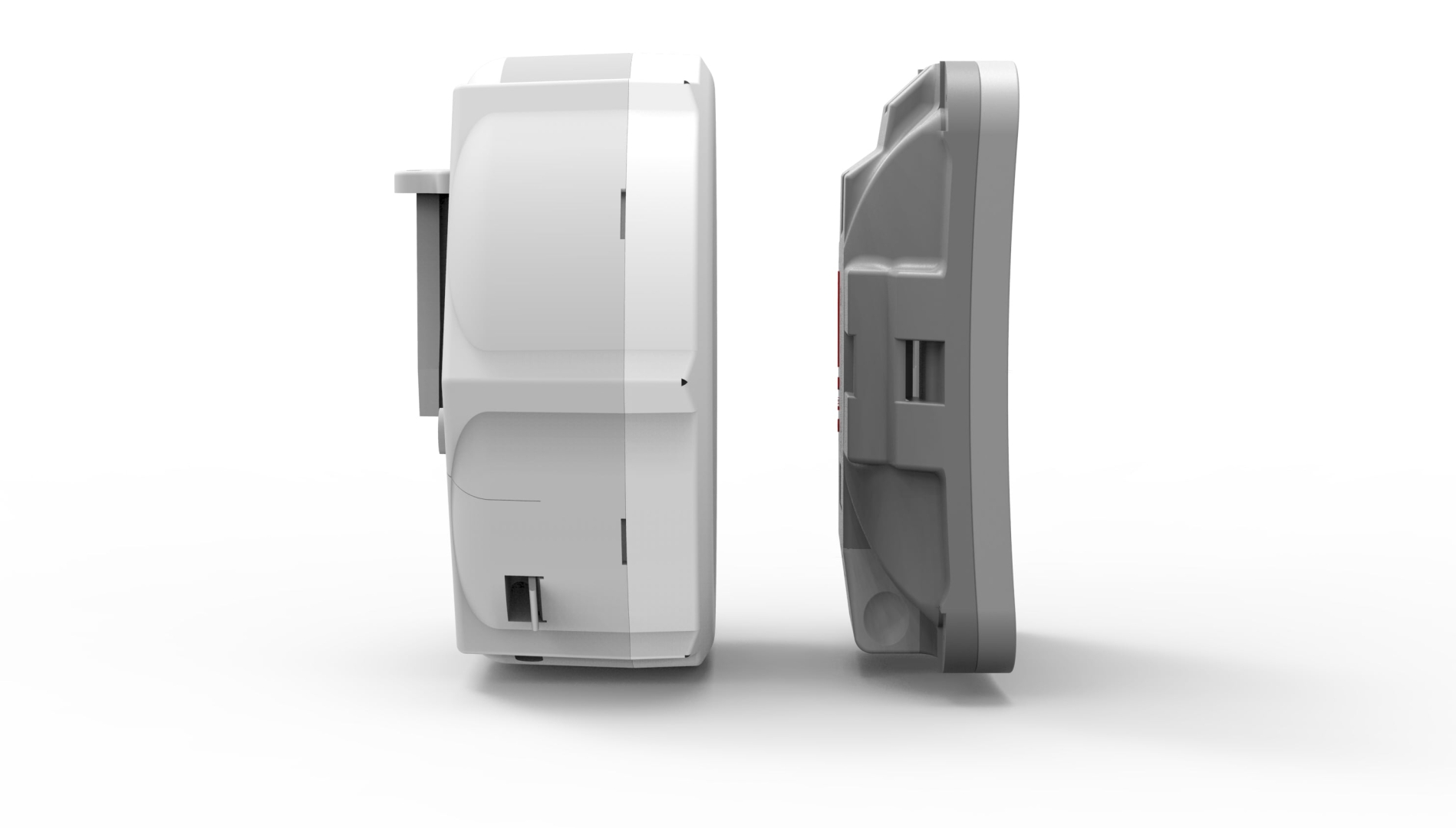

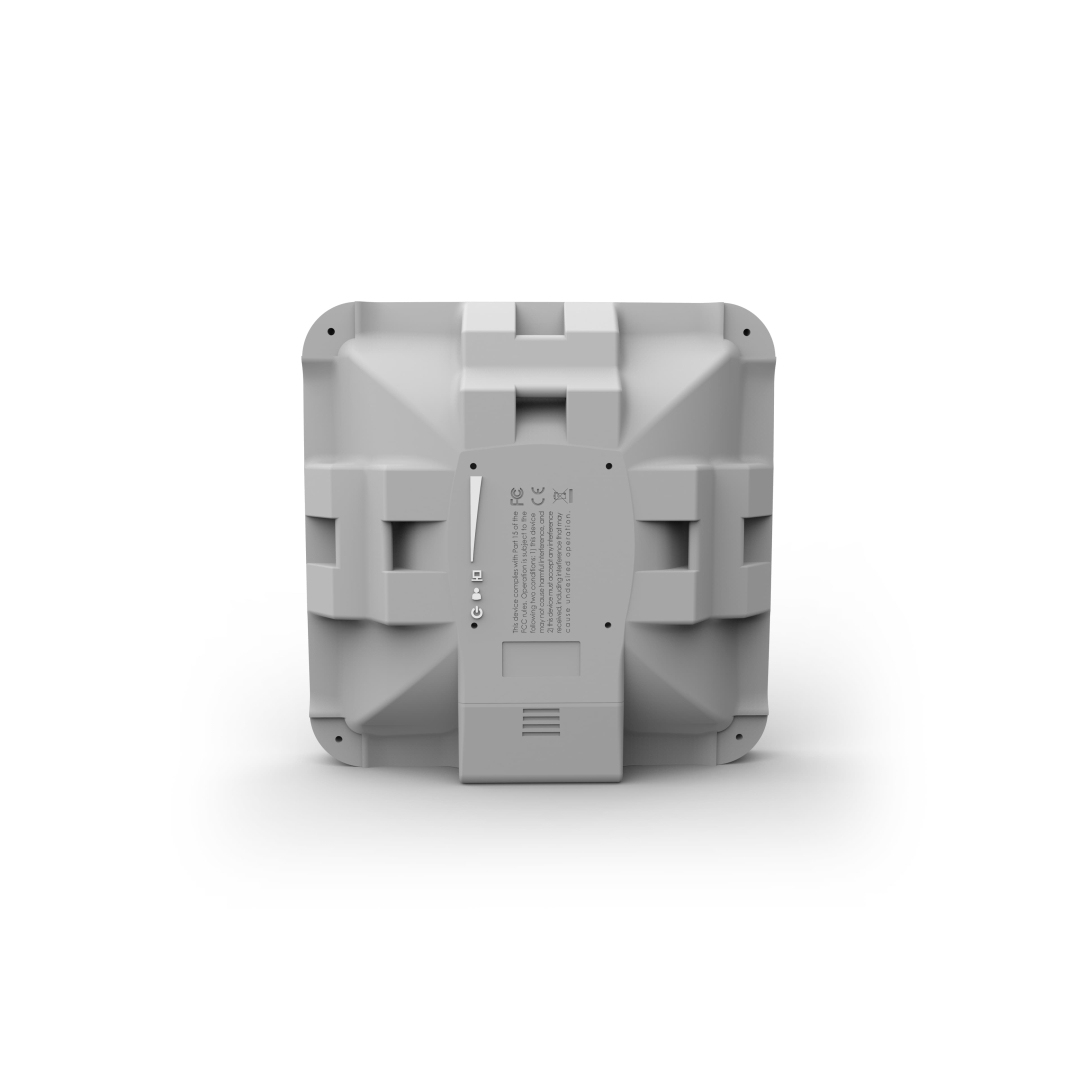

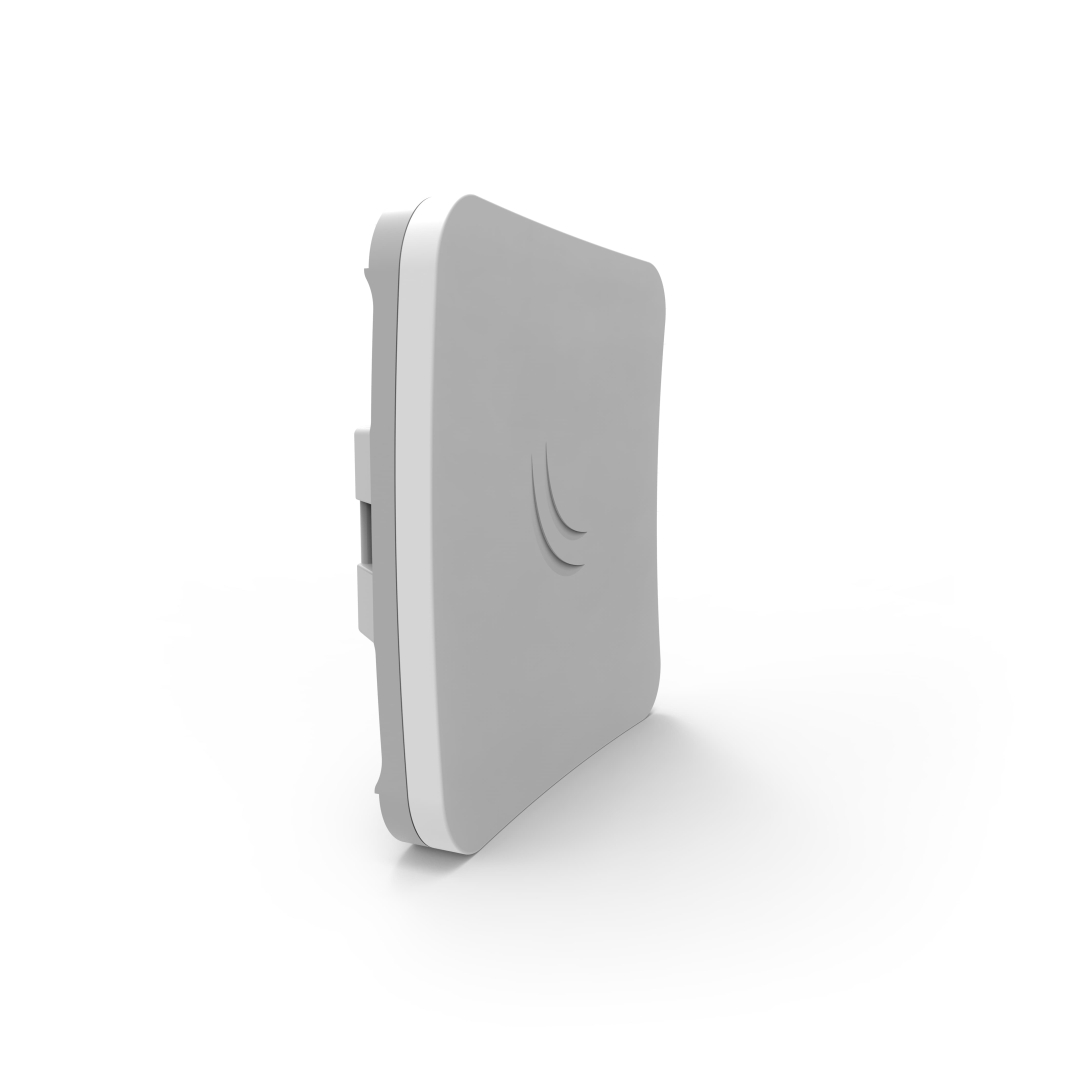

The SXTsq Lite5 is a compact and lightweight outdoor wireless device with an integrated antenna. Perfect for point to point links of up to 12 kilometers or as a CPE unit. It is compact, weatherproof and easy to mount. The SXTsq Lite5 retains a 16dBi antenna like the SXT Lite5, our previous model, yet the antenna design has been improved and the physical size has been dramatically reduced - the SXTsq is two times thinner (see photos for comparison).
The device can be mounted on horizontal and vertical poles and masts, but for precise alignment, separately available is the QuickMount Pro, which allows to adjust in every angle (see photo and related product).
- SXTsq Lite5 (International) supports 5150MHz-5875MHz range (Specific frequency range can be limited by country regulations).
Specification:
Product code: RBSXTsq5nD
Architecture: MIPSBE
CPU: AR9344
CPU core count: 1
CPU nominal frequency: 600 MHz
Dimensions: 129x129x34mm
RouterOS license: 3
Operating System: RouterOS
Size of RAM: 64 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 100'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 6 W
PoE in: Passive PoE
Cooling type: Passive
PoE in input Voltage: 10-30 V
Wireless specifications
Wireless 5 GHz Max data rate: 300 Mbit/s
Wireless 5 GHz Number of chains: 2
Wireless 5 GHz standards: 802.11a/n
Antenna gain dBi for 5 GHz: 16
Wireless 5 GHz chip model: AR9344
Wireless 5 GHz generation: Wi-Fi 4
Ethernet
10/100 Ethernet ports: 1
Certification & Approvals
Certification: CE, FCC, IC, EAC, ROHS
IP: IP54
