MIKROTIK omnidirectional LTE antenna with 2 x SMA connectors, mANT LTE 5o (MTAO-LTE-5D-SQ)

Order code: MTAO-LTE-5D-SQ
Quick code: #1544

Antenna gain - 5 dBi, wireless band - 699 - 2690 MHz

Price exc. VAT: Price inc. VAT: For orders (total sum):
11.56£ 13.87£ >0£
11.46£ 13.75£ >300£
11.26£ 13.51£ >1000£


The mANT LTE is an omnidirectional antenna specifically designed for LTE frequencies. It is an excellent companion to our LTE devices, such as the wAP LTE and LtAP series. The antenna has a 5 dBi gain, improving your connection in the areas with inadequate LTE service coverage, allowing you to increase your connection speed.

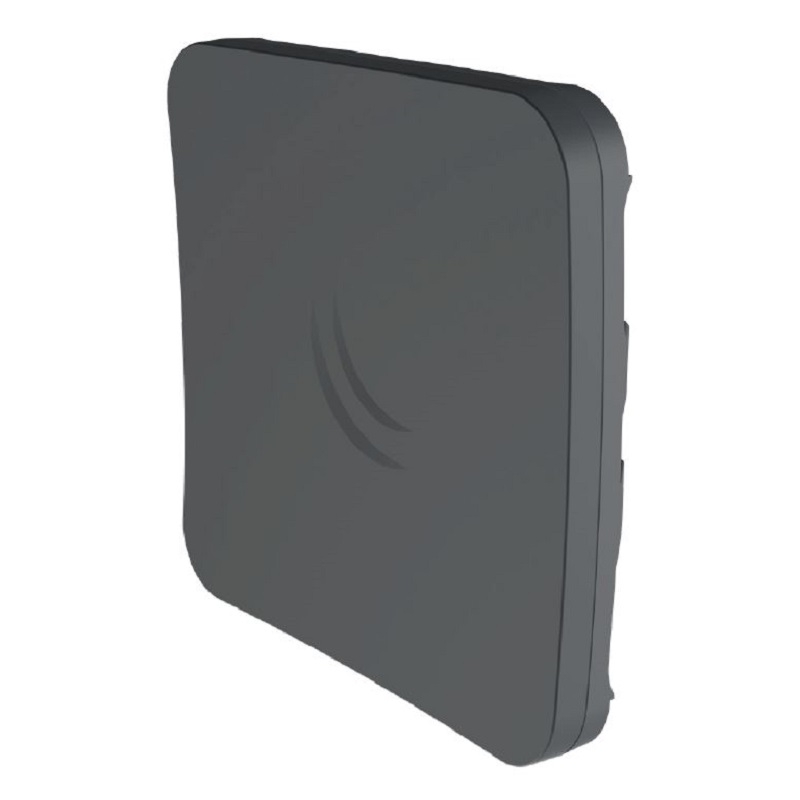

The device housing is a flat design for easy mounting, but the antenna itself is omnidirectional and does not have to be accurately pointed, allowing simple installation. The device is compatible with the frequency range 699MHz - 2.7 GHz.


Product code: MTAO-LTE-5D-SQ
Antenna type: Omni
Wireless band: 699 - 2690 MHz
Number of chains: 2
Antenna gain: 5 dBi
Antenna beam width: 360°

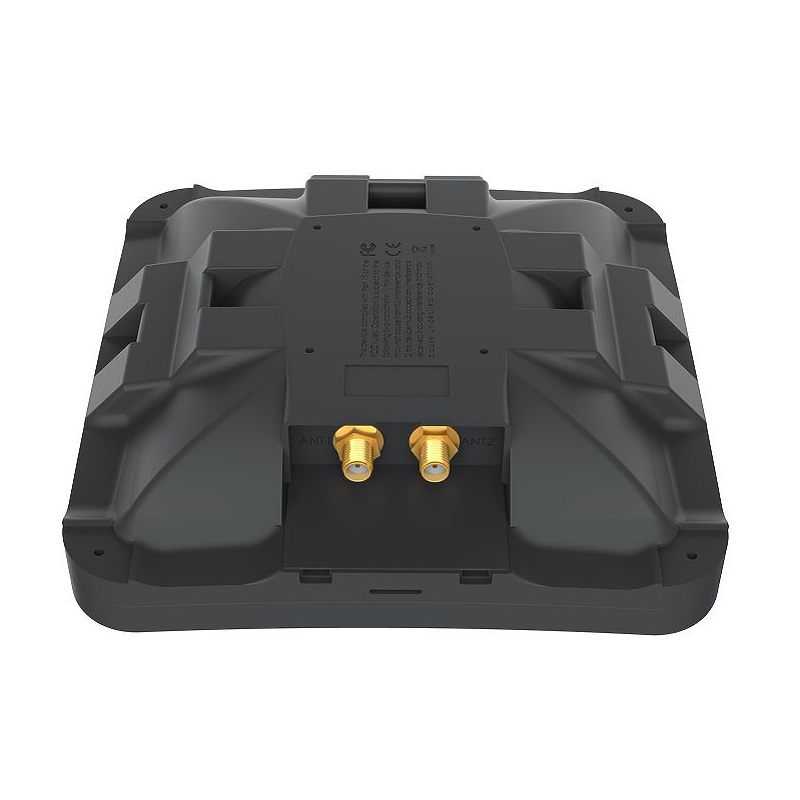

Connectors: 2 SMA Female
Dimensions: 129 x 129 x 34 mm
Operating temperature: -40°C .. +70°C tested
