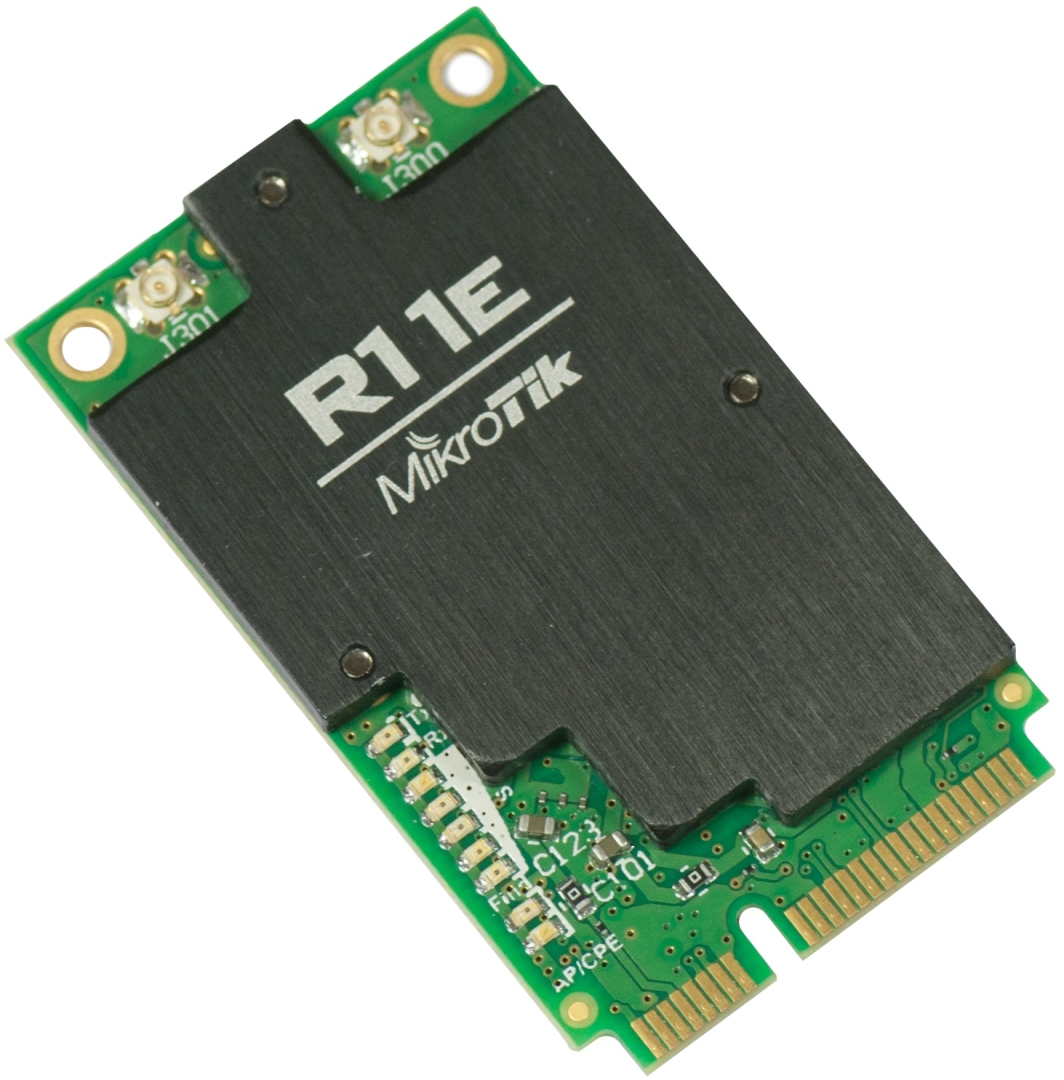

MIKROTIK 2Ghz 802.11b/g/n dual chain, 2x u.Fl, MiniPCI-express Card (R11e-2HnD)
MPN:
R11e-2HnD
Order code:
R11e-2HnD
Quick code:
#4519
EAN:
4752224002570
Frequency range: 2312-2732 MHz | WiFi Standards: 802.11b/g/n | 9 LED indicators | ESD protection
new
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 22.39£ | 26.87£ | >0£ |
| 22.20£ | 26.64£ | >300£ |
| 21.82£ | 26.18£ | >1000£ |
Features:
R11e-2HnD is a Low-profile Lower power version of 2.4Ghz miniPCIe card - it has a small heat-sink, u.Fl connector and less output power. Low profile is useful if you need to install the card in device like a laptop.
Specification:
| Product code | R11e-2HnD |
| Antenna header count | 2 |
| Can be used indoors | Yes |
| Can be used outdoors | Yes |
| Certification | FCC, IC |
| Connector | uFl |
| Format | miniPCIe |
| Max power consumption | 4.6 W |
| Storage size | 4 KB |
| Storage type | FLASH |
| Tested ambient temperature | -40C to +65C |
| Wi-Fi generation | Wi-Fi 4 |
| Wireless 2.4 GHz Max data rate | 300 Mbit/s |
| Wireless 2.4 GHz chip model | AR9582 |
| Wireless 2.4 GHz generation | Wi-Fi 4 |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Wireless standards | 802.11b/g/n |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 28 | -100 |
| 11MBit/s | 28 | -94 |
| 6MBit/s | 29 | -96 |
| 54MBit/s | 25 | -80 |
| MCS0 | 29 | -96 |
| MCS7 | 24 | -79 |
