JIROUS JRC-29 MIMO DUOPACK (2x Antennas pack)

Order code: JRC-29 MIMO
Quick code: #531

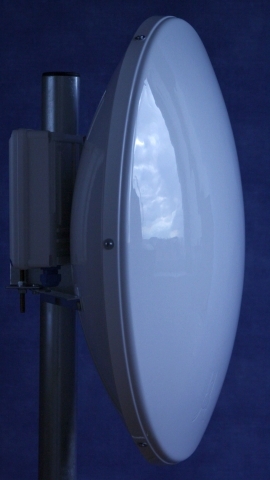

5GHz 29dB Dual-Polarized MIMO Parabolic Antenna with allweather Plastic cover, Two Antennas pack (DUO PACK)!

Price exc. VAT: Price inc. VAT: For orders (total sum):
192.69£ 231.23£ >0£
189.48£ 227.38£ >300£
184.67£ 221.60£ >1000£


PRICE INCLUDES 2 Antennas + 2 RADOMES(1package)!
dual-polarized antenna, horizontal and vertical polarization
easy to use with GentleBOX JR-200
keenly priced
only 1 antenna instead 2 save money for mast!
high front to back ratio
direction links for long and medium distance, also short in difficult conditions
antenna for large distances and difficult conditions
setting elevation (of gradient) and azimuth has independent adjustment
VSWR is measured during the manufacture
outdoor usage
radom (plastic parabola cover) for each antenna free!


Technical parameters
Frequency range 5,4 - 5,9 GHz
Gain 28,6 ±0,6dBi
VSWR ≤ 1,5
Front to back ratio ≥ 42 dB
Beamwith-3 dB 5,8°
Connector N - Female - JRC-29 MIMO
Polarization linear, horizontal and vertical
Parabola ø 65 cm
aluminium alloy with baking colour
Cover UV steady plastic ABS

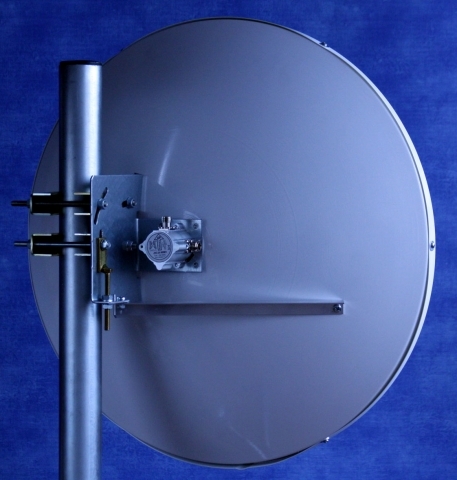

Instalation for mast ø 27 - 74 mm

The radiator is internally treated by high frequency technology "Hydrophobic coating" which increases resistance against humidity.

Packing: 2 pcs in carton (DUO PACK)
