ISKRA U-MIMO 3G 4G LTE High Gain 700-2700MHz Antennas with 10m cables, SMA Male Connectors (P-58-L700-10)
MPN:
P-58-L700-10
Order code:
P-58-L700-10
Quick code:
#1528
EAN:
3831002903184
11 dBi LTE/3G/WiFi (WLAN) antennas, dual polarization. With 10m cables included, SMA Male Connectors
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 89.14£ | 106.97£ | >0£ |
| 88.01£ | 105.61£ | >300£ |
| 86.87£ | 104.24£ | >1000£ |
Specification:
Antenna Gain: 9–11 dBi
Cable length: 10 m

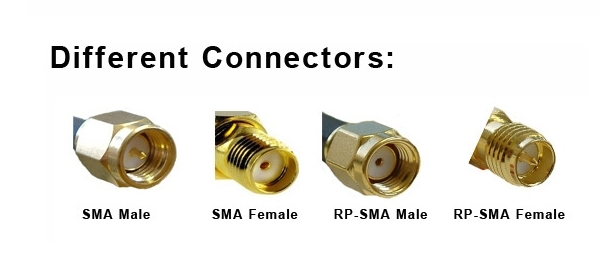

Connector: SMA male
Impedance: 50 oHm
Max. power connection: 50 W
Antenna length: 1070 mm
Number of elements: 58
Polarization: 2 × 45 degrees
Front-back ratio: 23 dB
Beam width H/V: 54/46°
VSWR: <1.6
Frequency ranges:
LTE 700 & 800: 698-862MHz / 9.5 dBi
LTE 1800: 1710-1880MHz / 11 dBi
LTE 2600: 2500-2700MHz / 11 dBi
3G 900: 880-960MHz / 10 dBi
3G 2100: 1920-2170MHz / 11 dBi
Wi-Fi (WLAN): 2401-2495MHz / 11 dBi
