MIKROTIK RouterBOARD GrooveA 52 (RBGrooveA-52HPn) (License level 4)

Order code: RBGrooveA-52HPn
Quick code: #391

Outdoor AP/PtP/CPE | Groove A-52HPn with 600MHz Atheros CPU, 64MB RAM, 1 LAN, 1 built-in dual band 2.4/5GHz 802.11a/b/g/n wireless interface, TX Power 27dBm, RouterOS L4, mounting loops, PoE injector, 24V power adapter and 2.4Ghz 6dBi Omni antenna included

Price exc. VAT: Price inc. VAT: For orders (total sum):
53.41£ 64.09£ >0£
52.94£ 63.53£ >300£
52.03£ 62.44£ >1000£
Qty:


Features:

Mikrotik's smallest outdoor series model - a fully featured wireless RouterBOARD powered by RouterOS. Weatherproof, durable and ready to use. It has one 10/100 Ethernet port with PoE support and a built in wireless radio. It has software selectable 2 or 5GHz wireless mode, and high 500mW output power! GrooveA has 128MB of RAM and RouterOS license (support for AP, point-to-point or CPE)

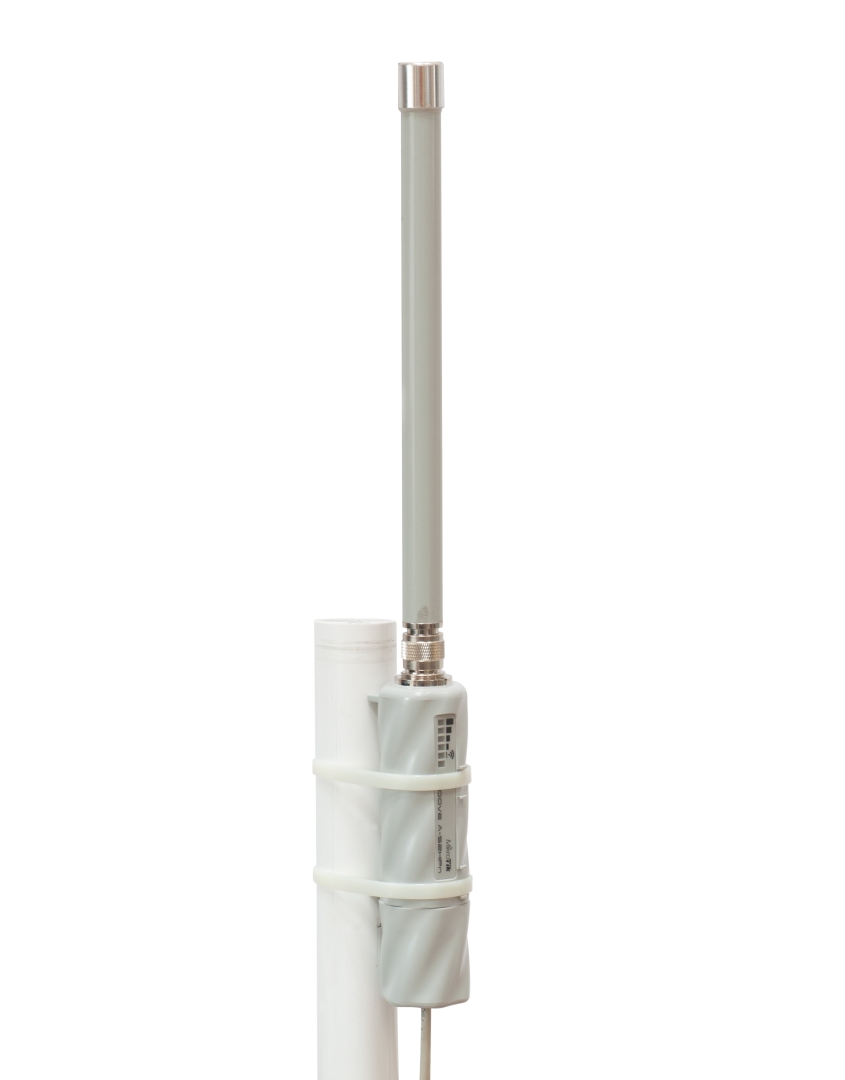

With the Nv2 TDMA technology, up to 125Mbit aggregate throughput is possible! It has a built-in N-male connector, and pole attachment points, so you can attach it to an antenna directly, or use a standard antenna cable. LED signal indicators make it easy to install and align.

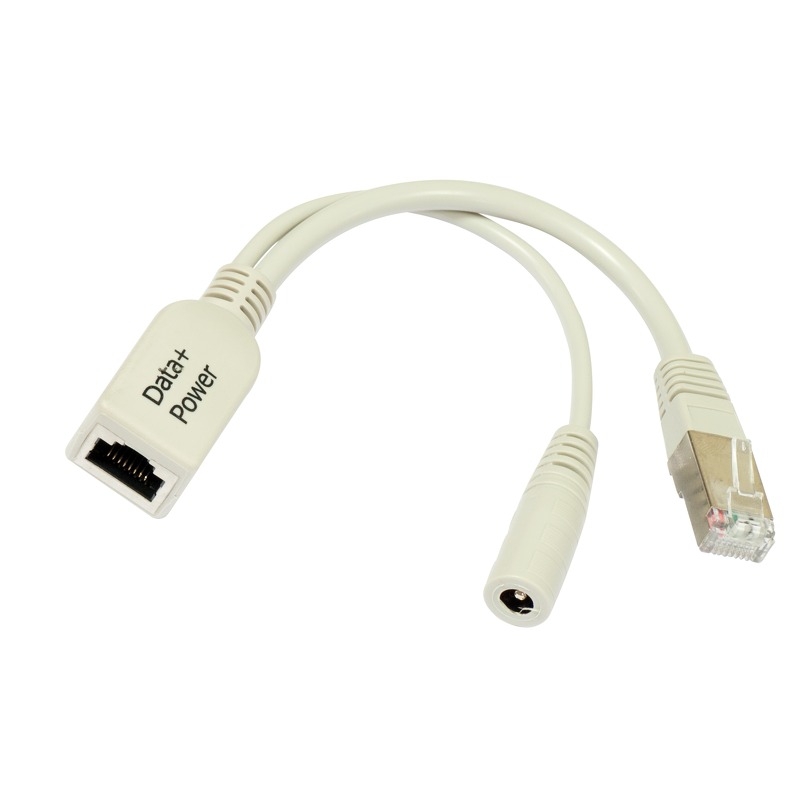

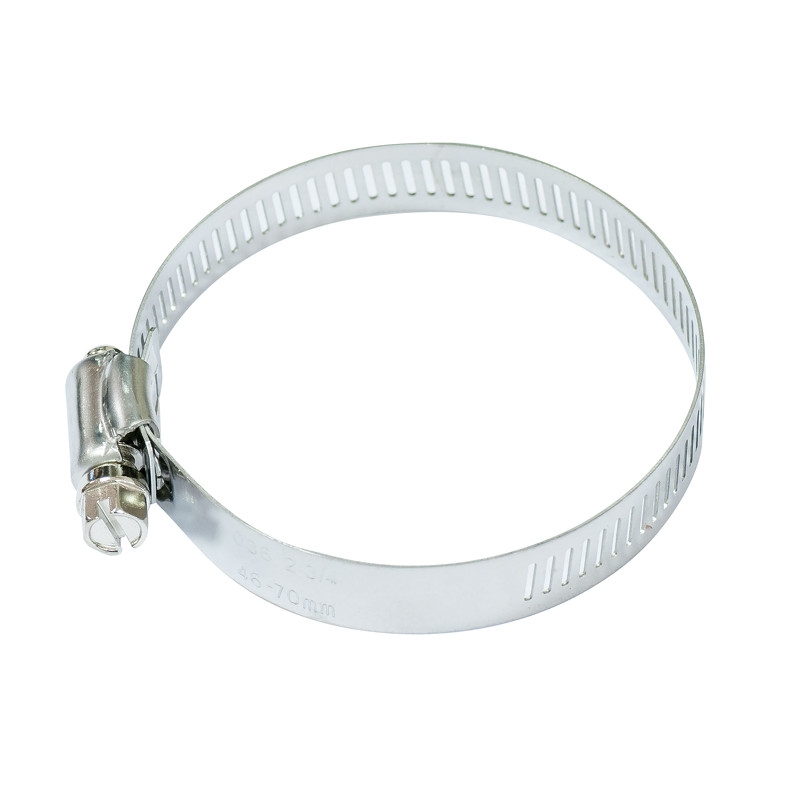

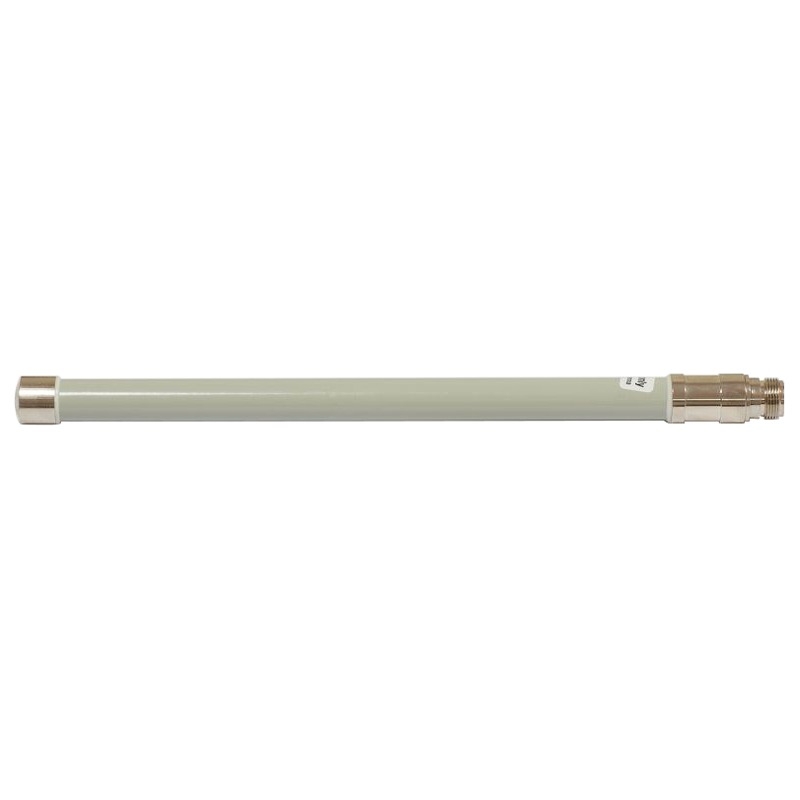

Box contains: Groove unit, 2.4Ghz 6dBi Omni antenna, mounting loops, PoE injector, power adapter

Specification:

Product code RBGrooveA-52HPn
Architecture MIPSBE
CPU AR9342
CPU core count 1
CPU nominal frequency 600 MHz
Dimensions 177x44x44mm, 193g
RouterOS license 4
Operating System RouterOS
Size of RAM 64 MB
Storage size 16 MB
Storage type FLASH
MTBF Approximately 100'000 hours at 25C
Tested ambient temperature -40°C to 70°C

Powering

Details
Number of DC inputs 1 (PoE-IN)
Max power consumption 6 W
Cooling type Passive
PoE in Passive PoE
PoE in input Voltage 9-30 V

Wireless specifications

Details
Wireless 2.4 GHz/5 GHz Max data rate 150 Mbit/s
Wireless 2.4 GHz/5 GHz number of chains 1
Wireless 2.4 GHz/5 GHz standards 802.11b/g/n, 802.11a/n
Antenna gain dBi for 2.4 GHz/5 GHz 6
Wireless 2.4 GHz/5 GHz chip model AR9342
Wireless 2.4 GHz/5 GHz generation Wi-Fi 4

Ethernet

Details
10/100 Ethernet ports 1

Other

Details
PCB temperature monitor Yes
Voltage Monitor Yes
Beeper Yes

Certification & Approvals

Details
Certification CE, FCC, IC, EAC, ROHS

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1MBit/s 27 -97
11MBit/s 27 -91
6MBit/s 27 -93
54MBit/s 24 -75
MCS0 27 -93
MCS7 23 -70
5 GHz Transmit (dBm) Receive Sensitivity
6MBit/s 27 -93
54MBit/s 23 -75
MCS0 26 -93
MCS7 22 -70
