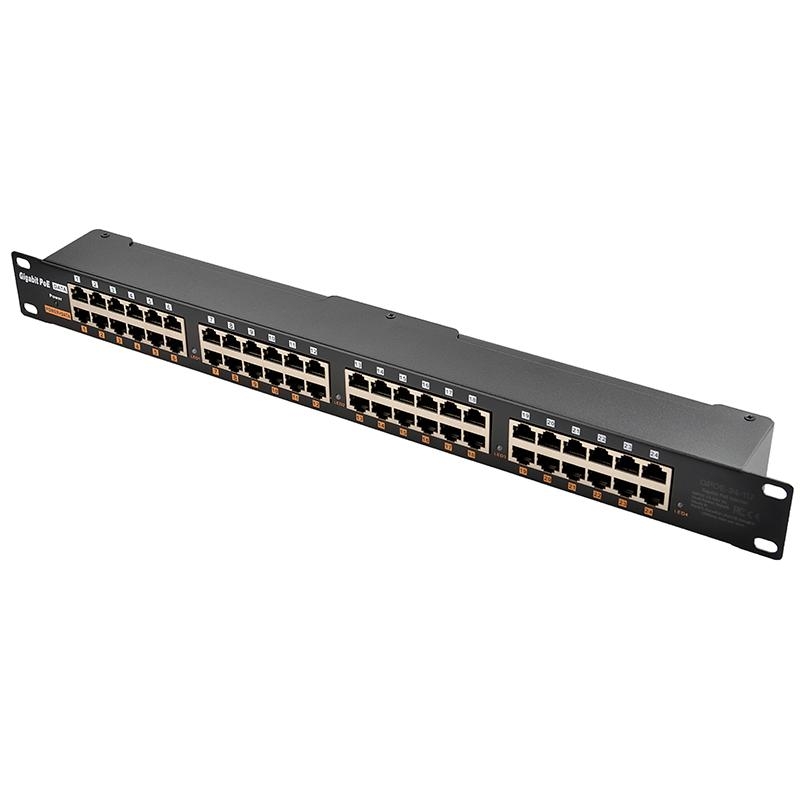

Gigabit Passive PoE Rack Mount Injector/Panel, 24 port (POE-INJ-24-G-RM)

MPN: GPOE-24-1U
Order code: POE-INJ-24-G-RM
Quick code: #2357

24 port Gigabit PoE injector panel with metal case, 1U high standard rack mount, 650 ma automatic resettable fuse on each port

Price exc. VAT: Price inc. VAT: For orders (total sum):
66.93£ 80.32£ >0£
65.86£ 79.03£ >300£
64.79£ 77.75£ >1000£
Qty:


Features:

Passive PoE means versatility. Save big on network upgrades and installations using this 24 port gigabit midspan PoE injector. Use it to power up to 24 IP cameras, desktop phones, WiFi access points, or other low voltage devices through a network data cable. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Product Features:

  • Extend power up to 328 feet (100 meters)
  • Mode B (pins 4,5 7,8) Passive Power is "Always on"
  • 650mA fuse limit per port
  • 10/100/1000 Gigabit data capability
  • 1U rack mount

!!! DC Power adapter is NOT Included !!!

Specification:

Certifications UL/CE/FCC
Data + PoE Ports 24 Ports
Data Ports 24 Ports
Data Rate Gigabit

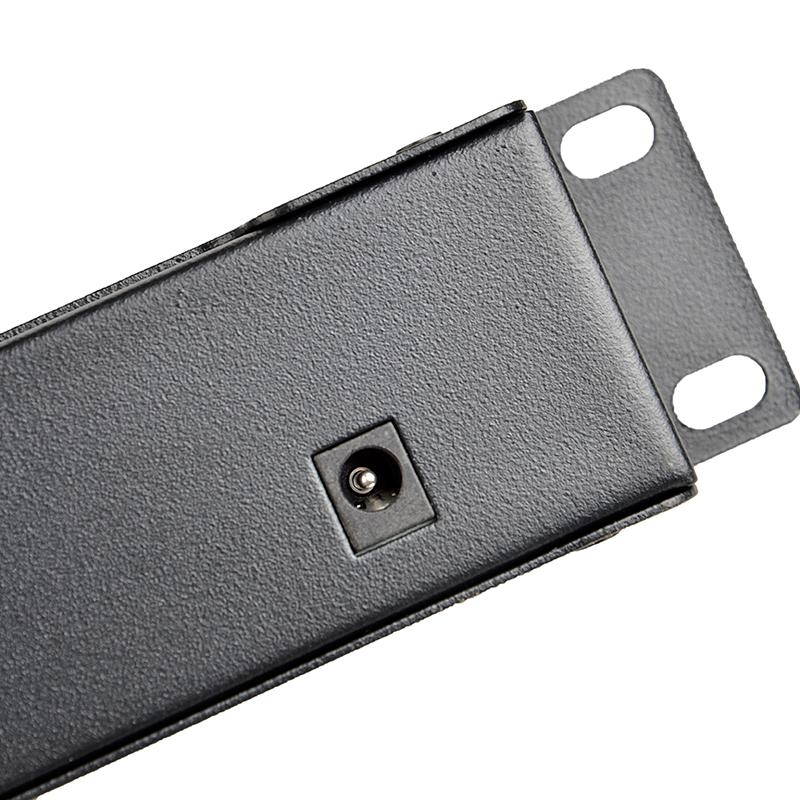

DC connector 2.1 x 5.5 mm DC (x2)
Dimensions 19 x 2 x1.75 Inches
Input Voltage Range 18-57 Volts DC
Max. Amps Per Port 650 mA
Mount Type 1U Rack
Operating Humidity 5% to 90%
Operating Temperature Range -10 - 60C
Output Voltage Passive - Equal to input voltage
PoE Mode/Pinout Mode B (-4,5 / +7,8)
