EXTRALINK Passive Gigabit PoE Rack Mount Injector/Shielded Panel, 12 port (POE-INJ-12-G-RM)

MPN: POE-INJ-12-G-RM
Order code: POE-INJ-12-G-RM
Quick code: #638

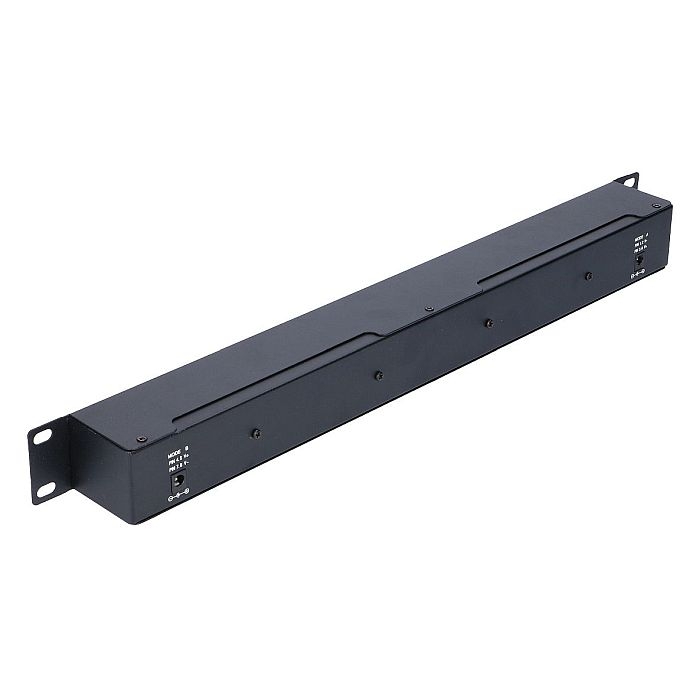

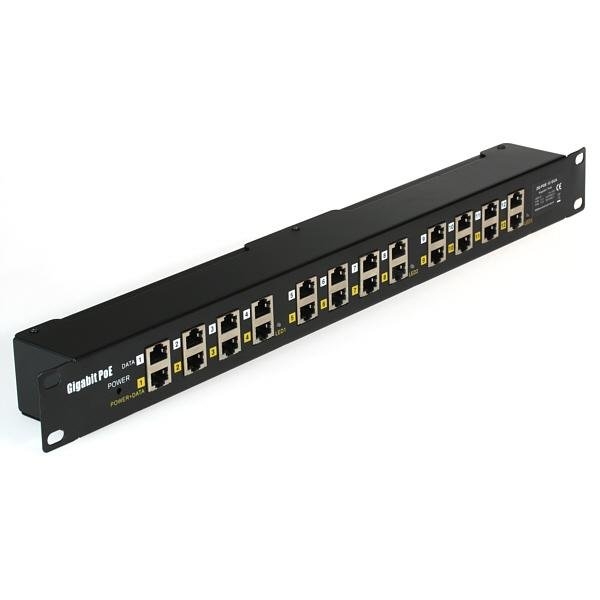

12 port Gigabit PoE injector panel with metal case, 1U high standard rack mount, Shielded, 2x input power jacks

Price exc. VAT: Price inc. VAT: For orders (total sum):
50.19£ 60.23£ >0£
49.39£ 59.27£ >300£
48.58£ 58.30£ >1000£
Qty:


Features:

Professional panel which integrates 12 gigabit passive POE injectors and so it is suitable for powering up to 12 devices with integrated PoE splitter. Output power range 24 - 57V.
Very appropriate solutions to power wireless devices, IP phones, IP cameras, etc. with gigabit ethernet. In case that powered device does not have a PoE extractor can be combined with passive POE splitter.

LED indicates port currents.
• 0-20mA (no signal
• 20-400mA (gree led)
• >400mA (red led)

The main advantages of this device are :
• 19" rack design
• LED control for visual monitoring of traffic
• outgoing ground component for surge filtering on the back panel
• reversible insurance against electric current fluctuation (OCP protection 650 mA) on each port
• 2x power input connectors (2.1 mm jack, max 60W each)

Specification:

Color :

Black

Input :

100-240V AC 50/60Hz

Output :

18 TO 57 V 120W

Data :

1/2&3/6&4/5&7/8

Power :

3/6+ & 1/2-, 4/5+ & 7/8-

Weight :

1.2kg

Dimensions :

482.6mm x 44.3mm x 52mm

Case of material :

Metal work material

Ethernet Cable :

TIA/EIA 568 Cat. 5

Data rate :

10/100/1000Mbps

Connector :

RJ-45

Operating Temperature :

0°C ~ 40°C

Storage Temperature :

-40°C~+70°C

Operating Humidity :

10%~80% RH

Storage Humidity :

5%~90%RH

Certification :

CE
