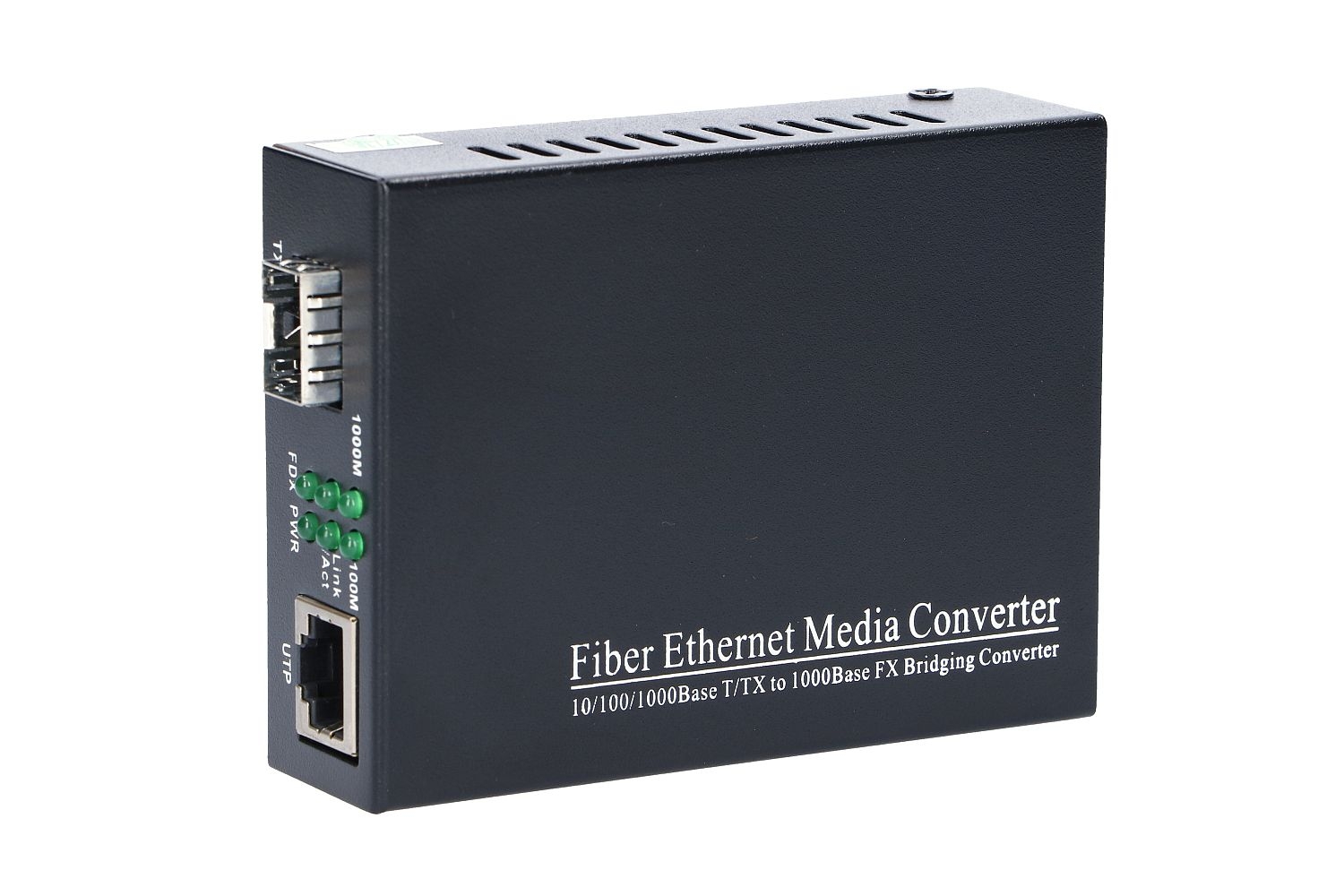

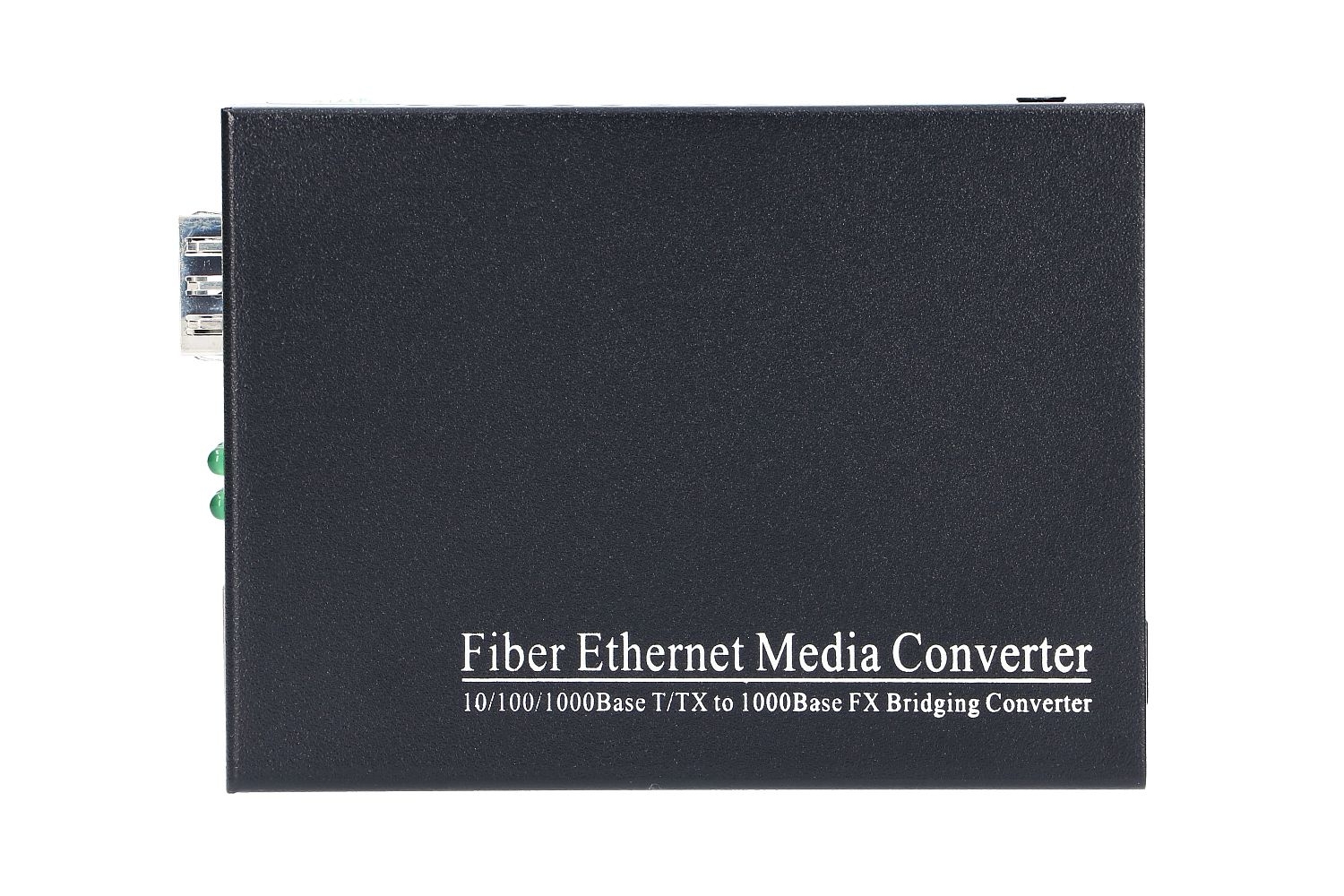

EXTRALINK Fiber Ethernet Media Converter SEDIR, MC220 (EL-MC220)
10/100/1000M Gigabit Ethernet Media Converter With One SFP Slot, TP-LINK MC220L analog
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 16.11£ | 19.33£ | >0£ |
| 15.80£ | 18.96£ | >300£ |
| 15.48£ | 18.58£ | >1000£ |
Features:
Converter Sedir is an Ethernet media converter that converts media transmission between UTP Copper cables and fiber SFP (Small Form-Factor Pluggable) transceiver. It is designed to meet the massive needs for Ethernet network deployment and able to extend a copper based network via fiber cable to a maximum distance up to 120km. It can be installed into a Standard Converter Chassis. The installation & operation procedures are simple & straight forward. Operation status can be locally monitored through a set of Diagnostic LED located in the front panel.
Specification:
- 100Base-TX/FX or 1000Base-T to 1000BASE-SX/LX Converter
- Standard : IEEE802.3 & IEE802.3u, IEEE 802.3z & 802.3ab

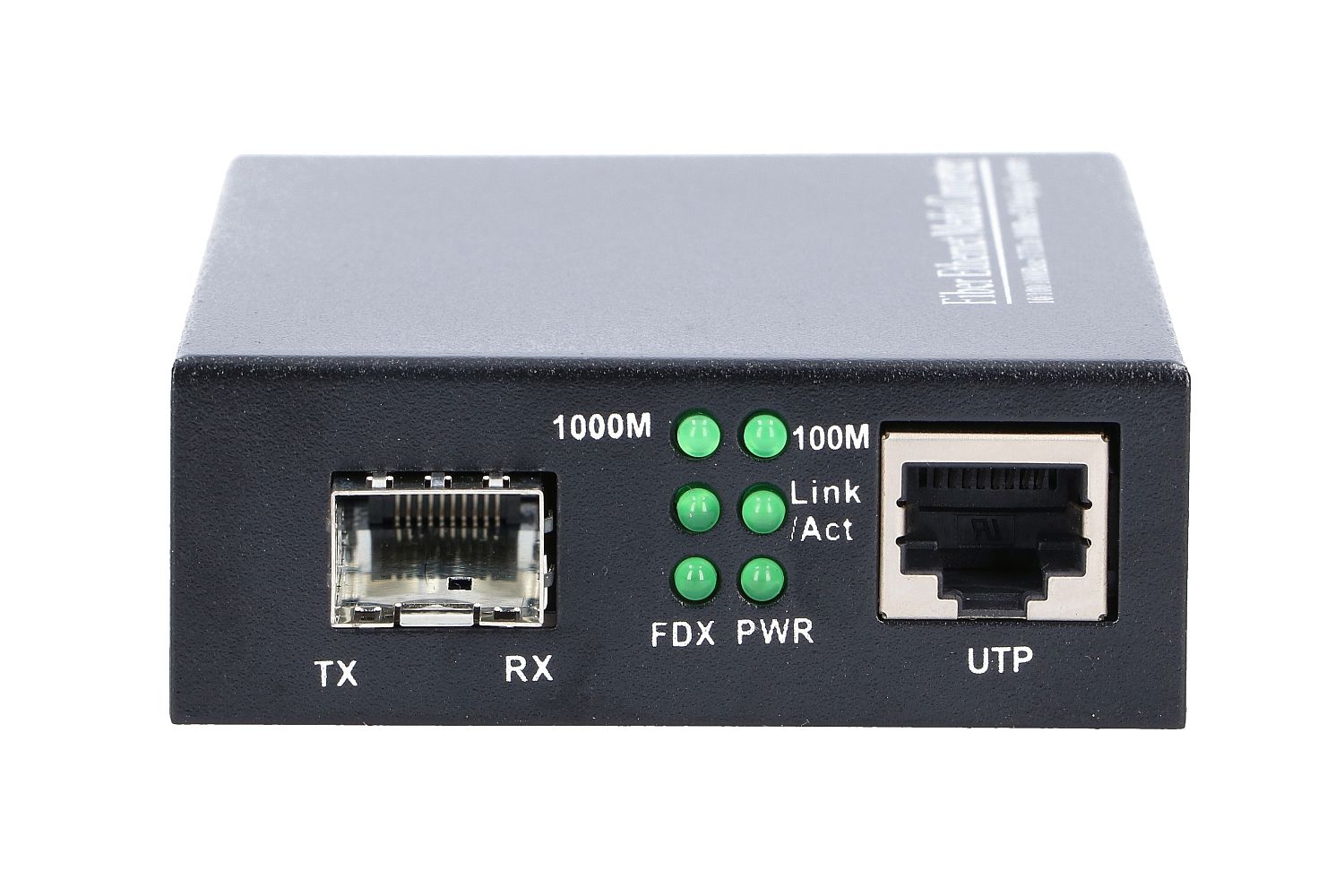

- Interface: 1 x RJ-45 connector / 1 x SFP Slot
- Plug-and-Play installation
- Support Jumbo Frame (64-9216 Byte)
- Conversion between different transmission speeds and media types
- Standalone type or card type ,Can be installed into 2U 14/16 Slots chassis
- Auto-negotiating Ethernet port (Half/Full Duplex)
- Auto-crossover Ethernet port (Supports Auto MDI/MDI-X)
- Easy Installation, Easy Trouble shooting
- Dimension: 229x122x50mm for packing, 94x70.6x26.5mm for device
