EXTRALINK CAT6 FTP (F/UTP) V2 OUTDOOR TWISTED PAIR 305M (EL-LAN-FUTP-CAT6-305)

Order code: EL-LAN-FUTP-CAT6-305
Quick code: #2040

Cat.6 FTP network cable. The package contains 305 m of cable.

Price exc. VAT: Price inc. VAT: For orders (total sum):
104.40£ 125.28£ >0£
102.34£ 122.81£ >300£
100.28£ 120.34£ >1000£
Qty:


Features:

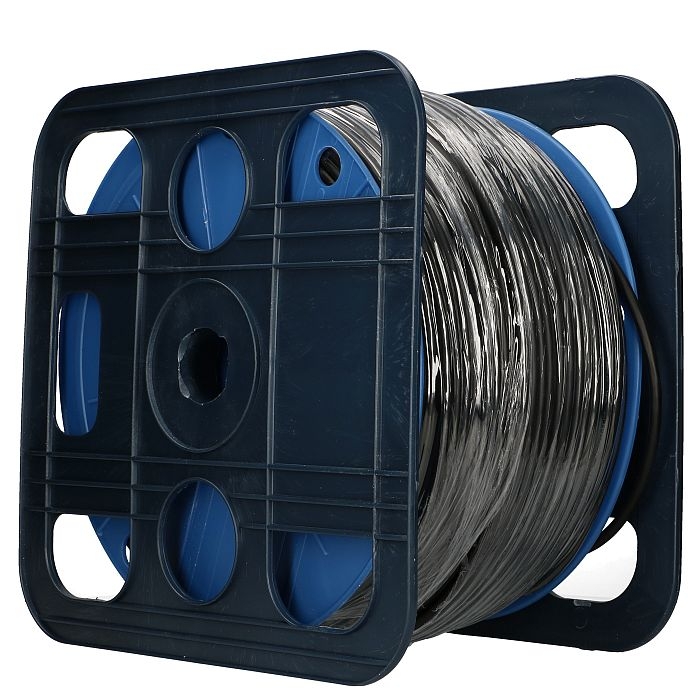

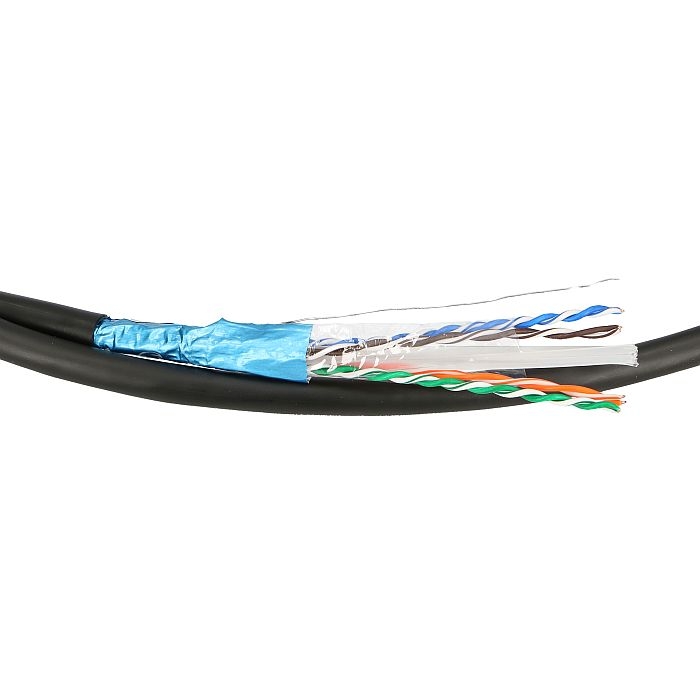

The wires are made of pure copper and are surrounded by PE sheath with a diameter of 1.08mm. The cable is shielded with aluminum foil and has an additional grounding wire. External PE sheath is 0,60mm thick. The packaging is equipped with a self-reeling roller, which allows you for convenient cable unwinding so a cable won't tangle. It's designed for outdoor use, and it's resistant to harsh weather conditions and mechanical damage.

Specification:

Wires

Type

Wire - pure copper

Diameter

0.56mm±0.005mm

AWG

23

Sheath

Type

PE

Diameter

1.08mm±0.03mm

Separation foil

polyester

Grounding wire

0.5mm CCS

Shielded

yes

RIP CORD

yes

Outer sheath

Type

PE

Color

black

Thickness

0.6mm±0.05mm

Outer diameter

7.5mm±0.2m

Parameter

Unit

Value

Max. linear resistance

Ω/km

?80

Capacity (nom.)

pF/m

56

Unbalance capacity max

(p/p at 1 KHz)

pF/km

1600

Characteristic impedance (1 at 100 MHz)

100±15

Propagation speed (f>1MHz)

%of c

66
