EXTRALINK CAT5E UTP (U/UTP) V2 Indoor Twisted Pair LAN cable, 305m (EL-LAN-UUTP-5E-305)
Order code:
EL-LAN-UUTP-5E-305
Quick code:
#1704
EAN:
5903148910055

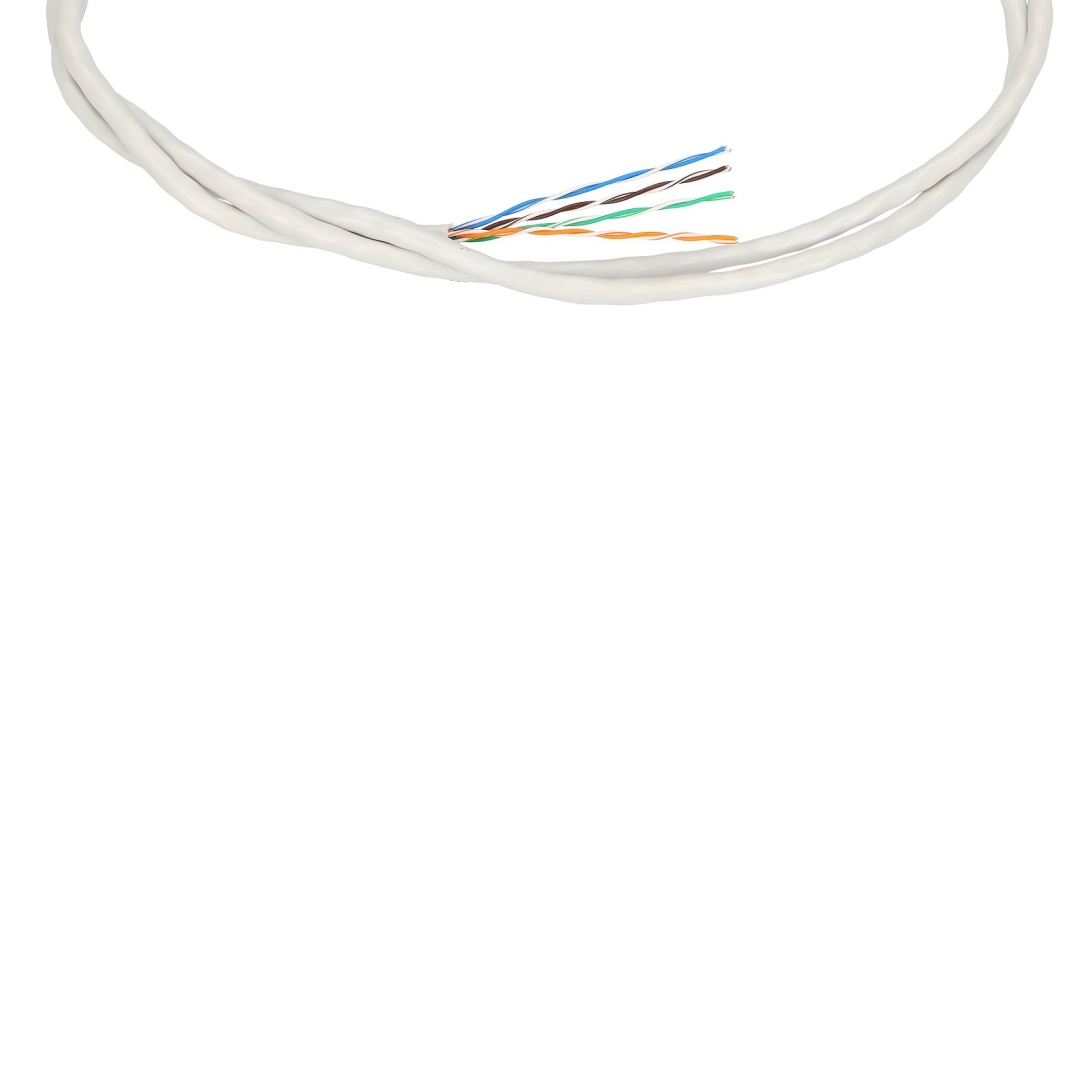

Indoor Network UTP Cat.5e cable. Built from 24 AWG copper conductor pairs coated by 0,9mm PE. All coated PVC outer jacket 0.5mm thick. Cable packed in to 1000ft. (304.8m).
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 97.71£ | 117.25£ | >0£ |
| 95.78£ | 114.94£ | >300£ |
| 93.85£ | 112.62£ | >1000£ |
Specification:
CONDUCTOR
Type: Solid Bare copper
Diameter: 0.47mm±0.005mm
AWG: 24
INSULATION
Type: PE solid
Diameter: 0.90mm±0.03mm
SYNTHETICAL SEPARTION FOIL: polyester
RIP CORD: Yes
OUTER JACKET
Type: PVC
Colour: GREY
Thickness: 0.5mm
External diameter: 5.0mm±0.2mm
ELECTRICAL CHARACTERISTICS AT 20°C
Max.linear resistance: ≤115 Ω/km
Mutual capacity(nom.): 56 pF/m
Unbalance capacity max (p/p at 1 KHz): 1600 pF/km
Characteristic impedance (1 at 100 MHz): 100±15 Ω
Velocity of propagation (f＞1MHz): 66%of c
