EXTRALINK CAT5E FTP (F/UTP) V2 Outdoor Twisted Pair LAN cable, 305m (EL-LAN-FTP-5E-305)

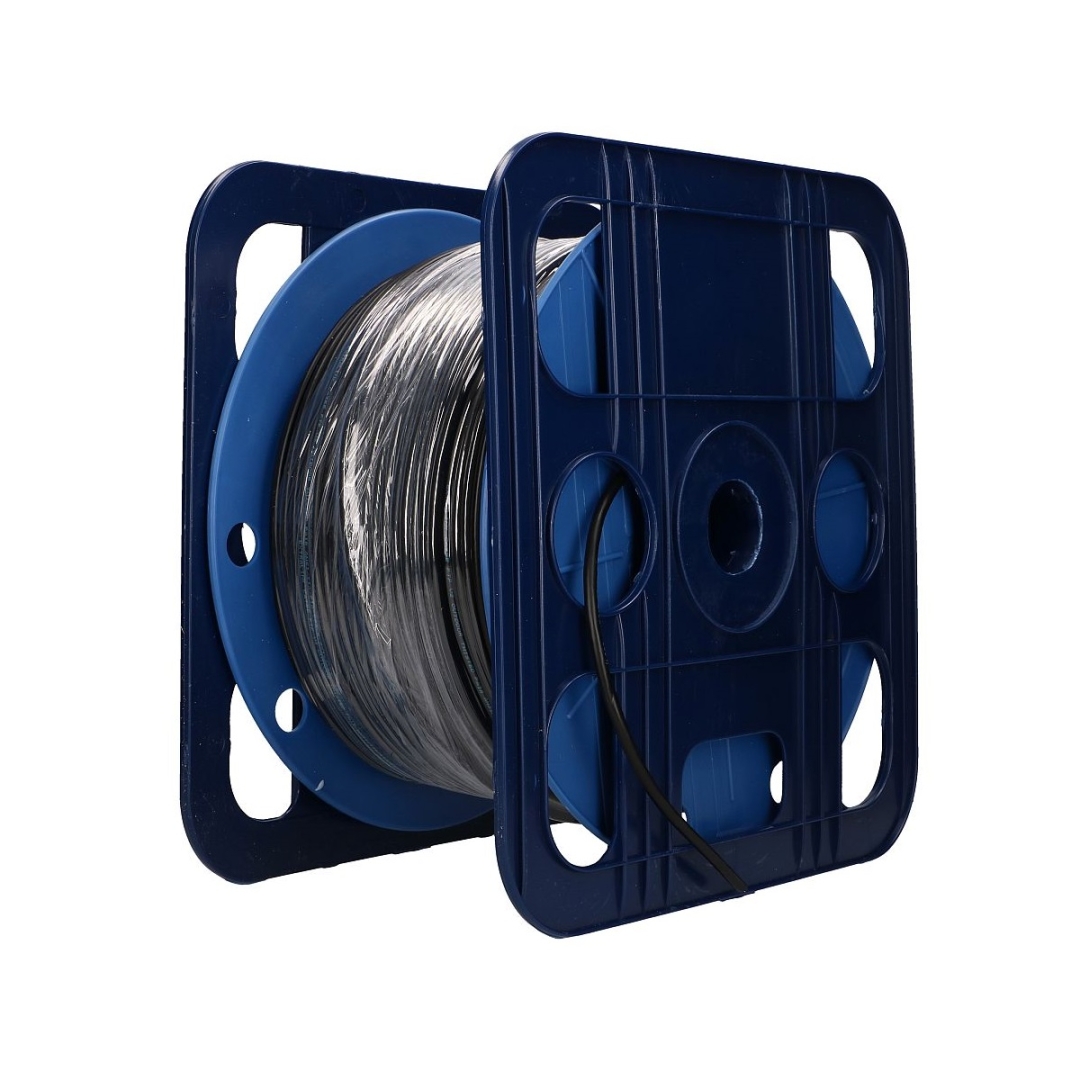

Outdoor Network FTP Cat.5e cable. Cable packed in to 1000ft. (304.8m).
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 113.83£ | 136.60£ | >0£ |
| 111.58£ | 133.90£ | >300£ |
| 109.34£ | 131.21£ | >1000£ |

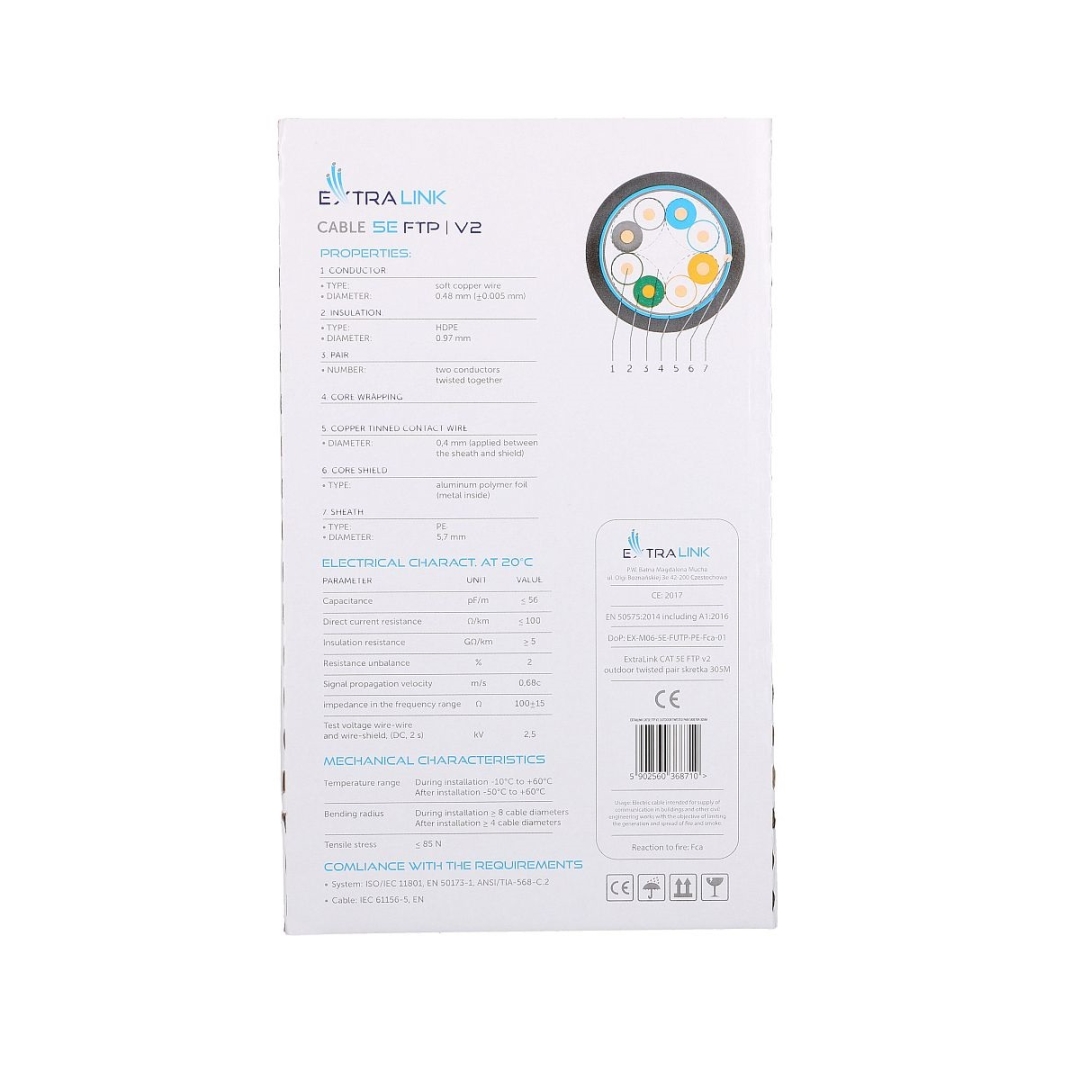

Specification:
CONDUCTOR
Type: Soft copper wire
Diameter: 0,48 mm (±0,005 mm)
AWG: 24
INSULATION
Type: PE
Diameter: 0.97mm

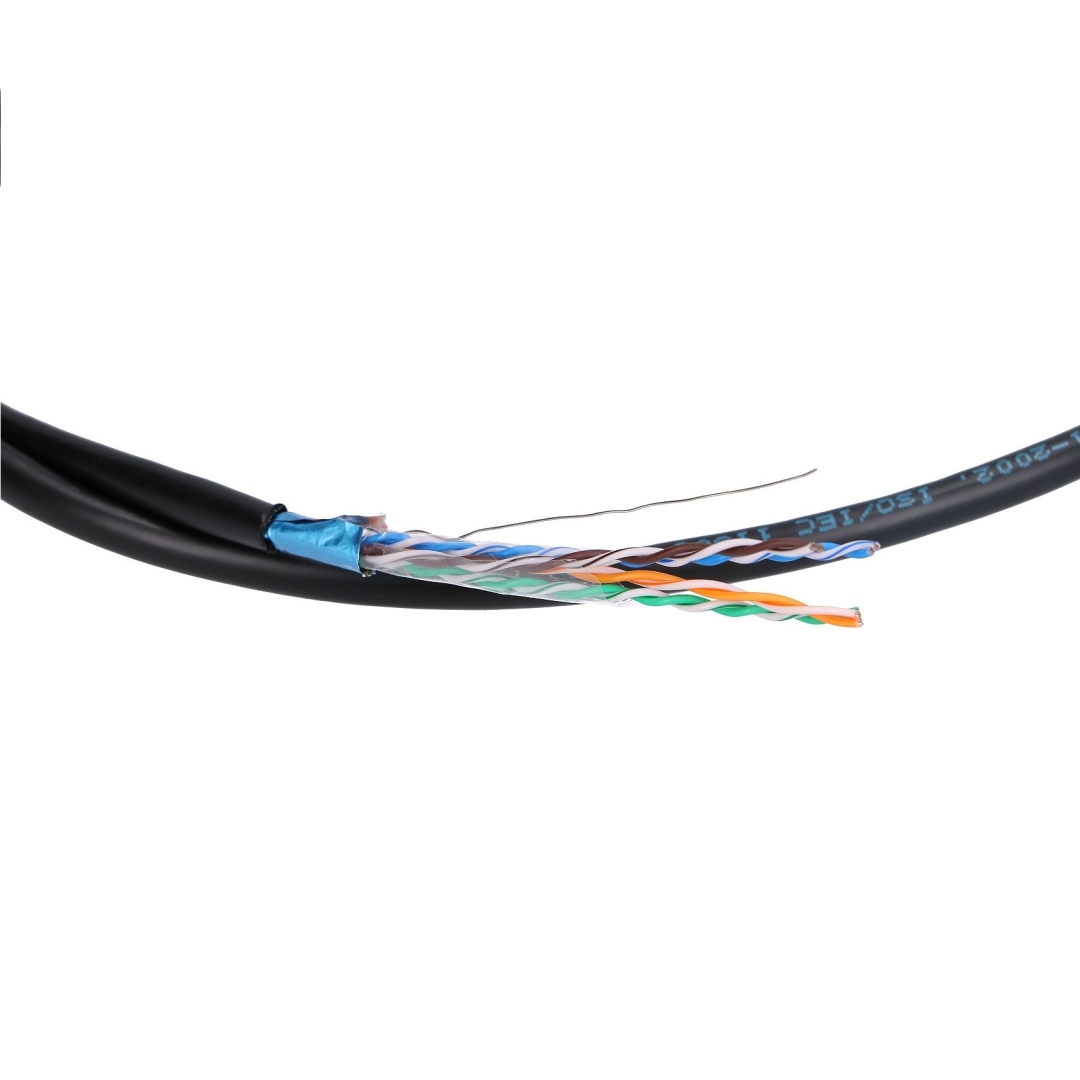

PAIR: two conductors twisted together
CORE WRAPPING
COPPER TINNED CONTACT WIRE: diameter 0,4 mm is applied between the sheath and shield
CORE SHIELD: aluminum polymer foil (metal inside)
SHEATH: PE, nominal cable diameter: 5,7 mm
TEMPERATURE RANGE:
During installation -10°C to +60°C
After installation -50°C to +60°C
BENDING RADIUS:
During installation ≥ 8 cable diameters
After installation ≥ 4 cable diameters
TENSILE STRESS: ≤ 85 N
ELECTRICAL CHARACTERISTICS AT 20°C
Capacitance: ≤ 56 pF/m
Direct current resistance: ≤ 108 Ω/km
Insulation resistance: ≥ 5 GΩ/km
Resistance unbalance: 2 %
Signal propagation velocity: 0,68cm/s
Characteristic impedance in the frequency range: 100±15Ω
Test voltage wire-wire and wire-shield, (DC, 2 s): 2,5 kV
