ALFA NETWORK Wireless Extender Package W/ACR-1202 with Car Charger Wifi CampPro 2 v2 (WiFiCamp-Pro2V2)

Order code: WiFiCamp-Pro2V2
Quick code: #1990

This special kit features all needed equipment to pick up a weak Wi-Fi signal and repeat it as your own personal hotspot. This is ideal for use on Boats, RVs, Campers, or Larger properties.

Price exc. VAT: * Price inc. VAT: * For orders (total sum):
94.01£ 112.81£ >0£
Login for discounted prices >300£
>1000£
Qty:
* better prices only for registered customers


Features:

WiFi 2v2  is a professionally tuned and highly integrated system that and extend Internet access for RV & yacht from remote WiFi hotspots.

  • Simple & Comprehensive Setup
    QR-Setup via smartphone or wizard via web demands no expertise during setting up
  • Extends WiFi hotspot Internet access from far away, and enhance the WiFi coverage inside your yacht or RV
    Easily make WiFi or VoIP calls when cellular signal is weak.
  • Scans and connects to and rebroadcasts around your yacht and RV
    Instantly share the extended Internet access to your mobile devices, smart TVs, and gaming consoles

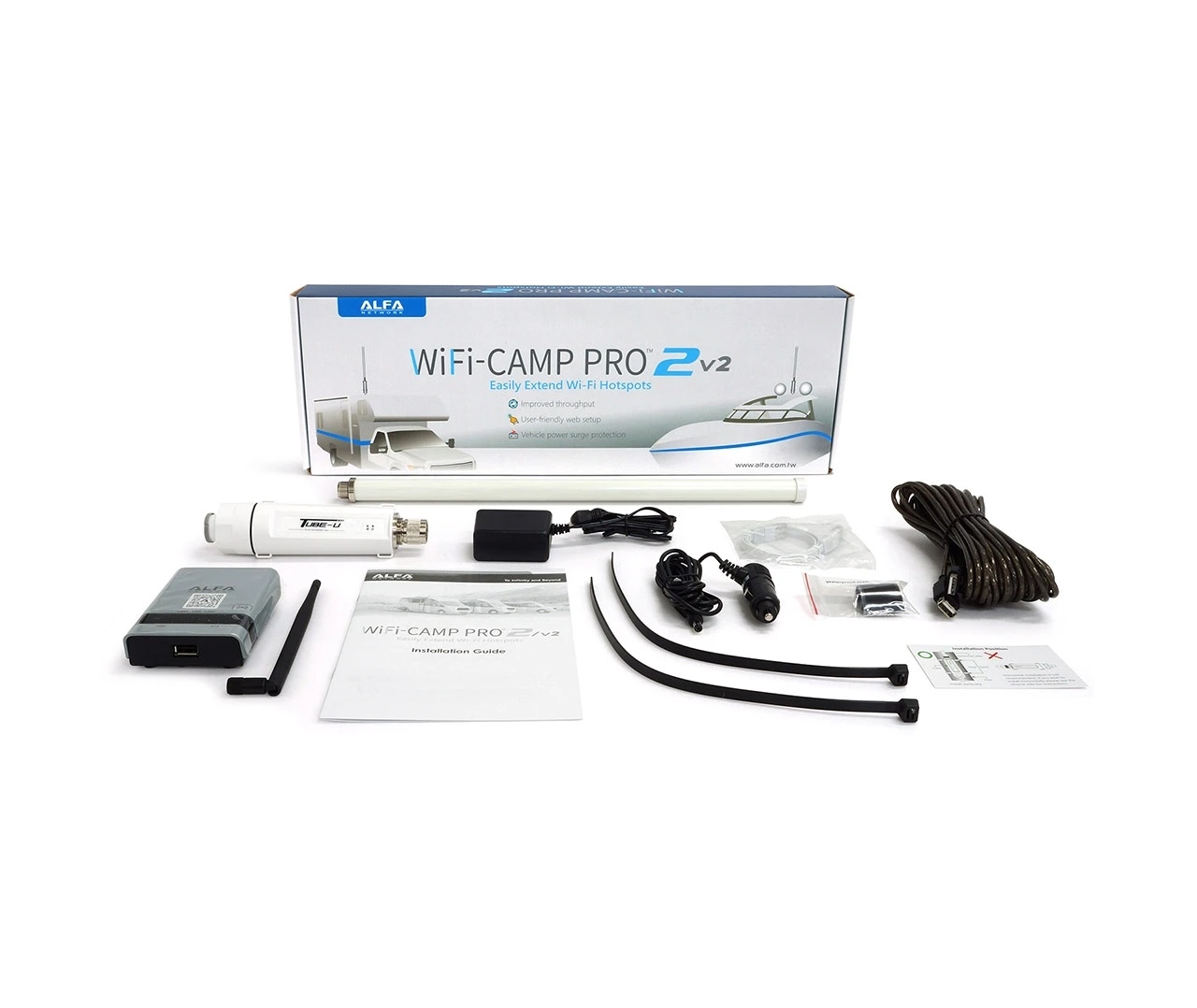

Included in the box:

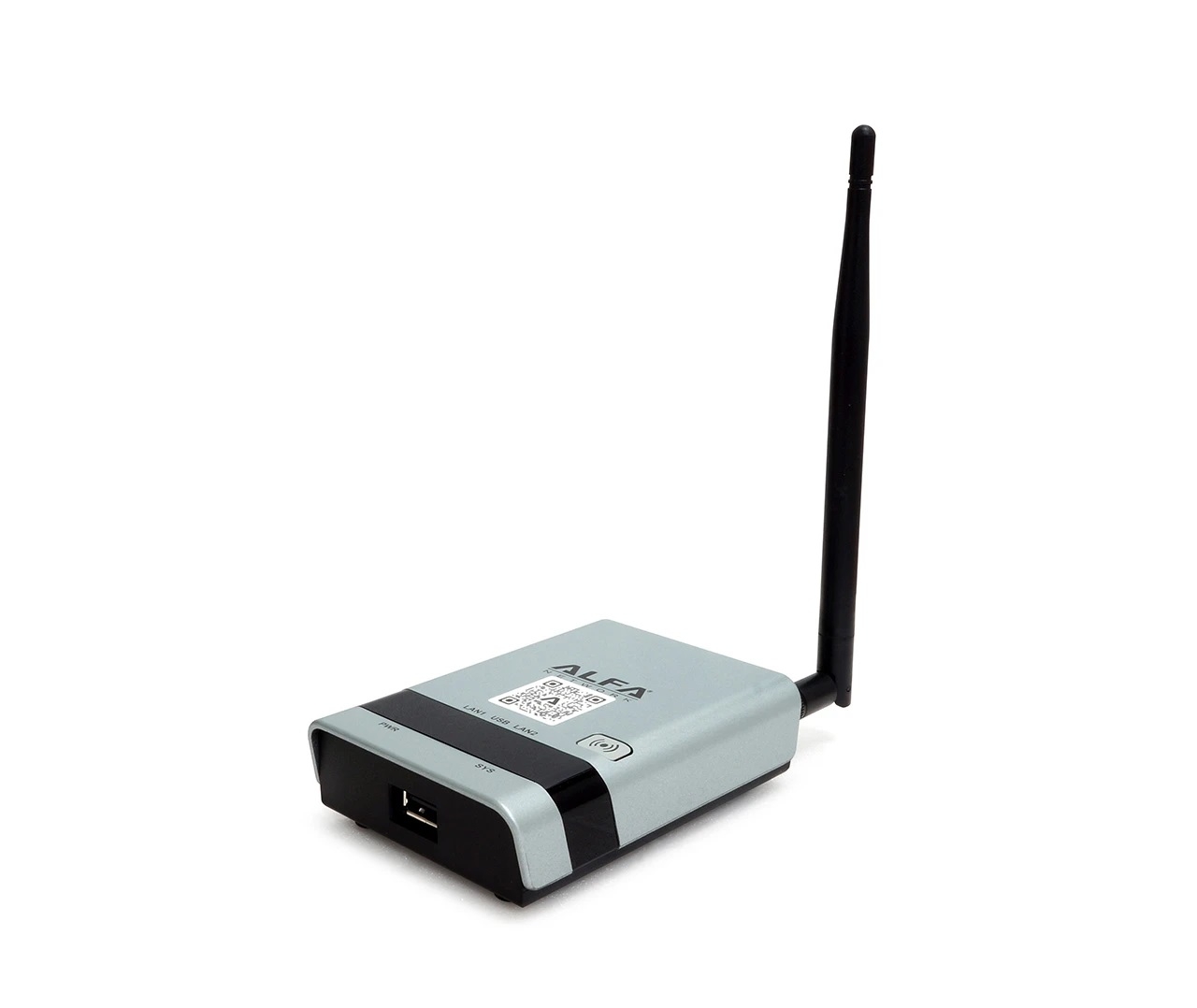

– Alfa R36A USB router
– Indoor Antenna ARS -N05

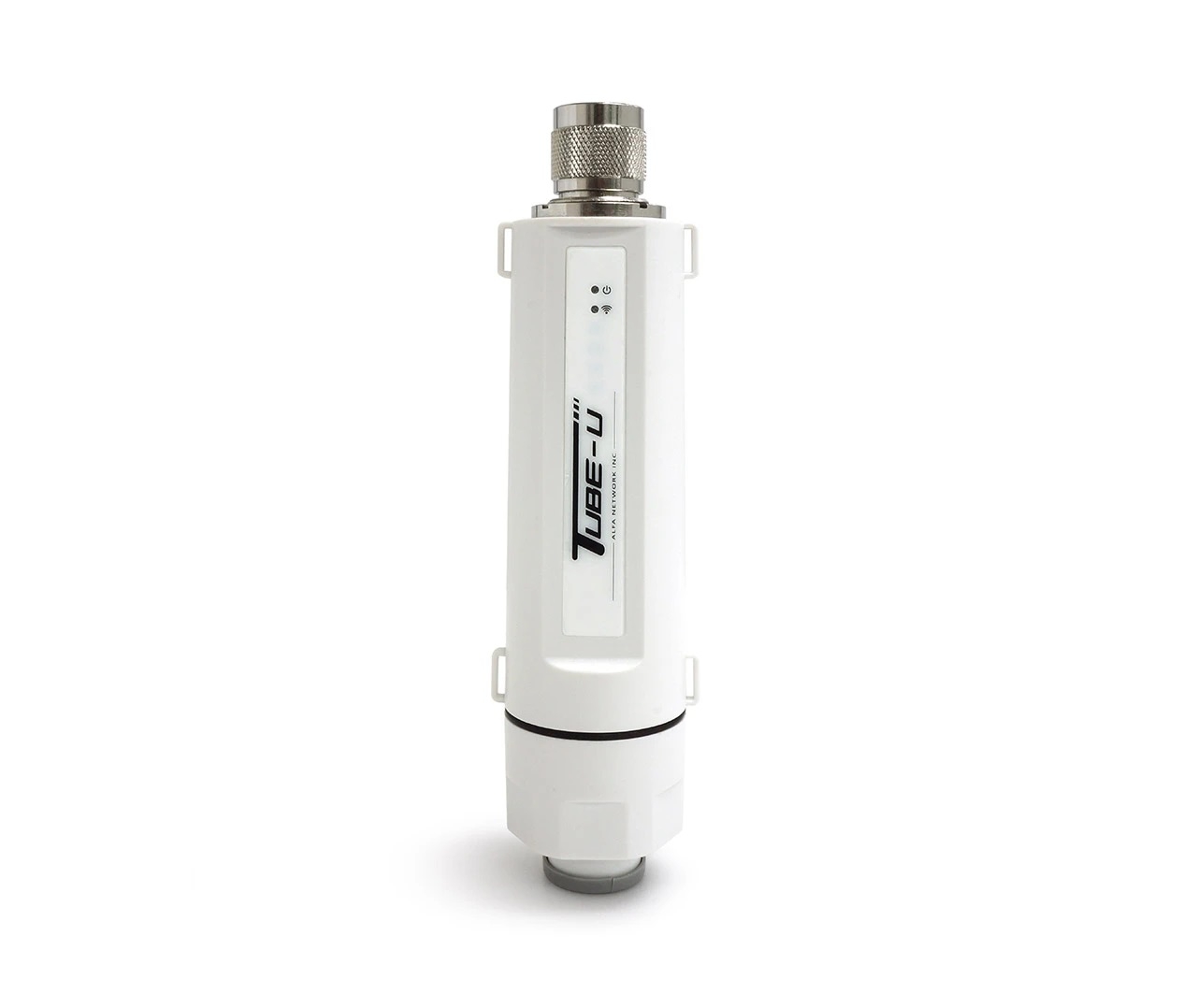

– Tube-UNA USB outdoor signal receiver + 8m (26 feet) USB cable.
– 12V power supply for R36
– Outdoor omni antenna for Tube-U
– Waterproof tape and wire ties for mounting Tube to pole
– R36 car/vehicle power supply adapter

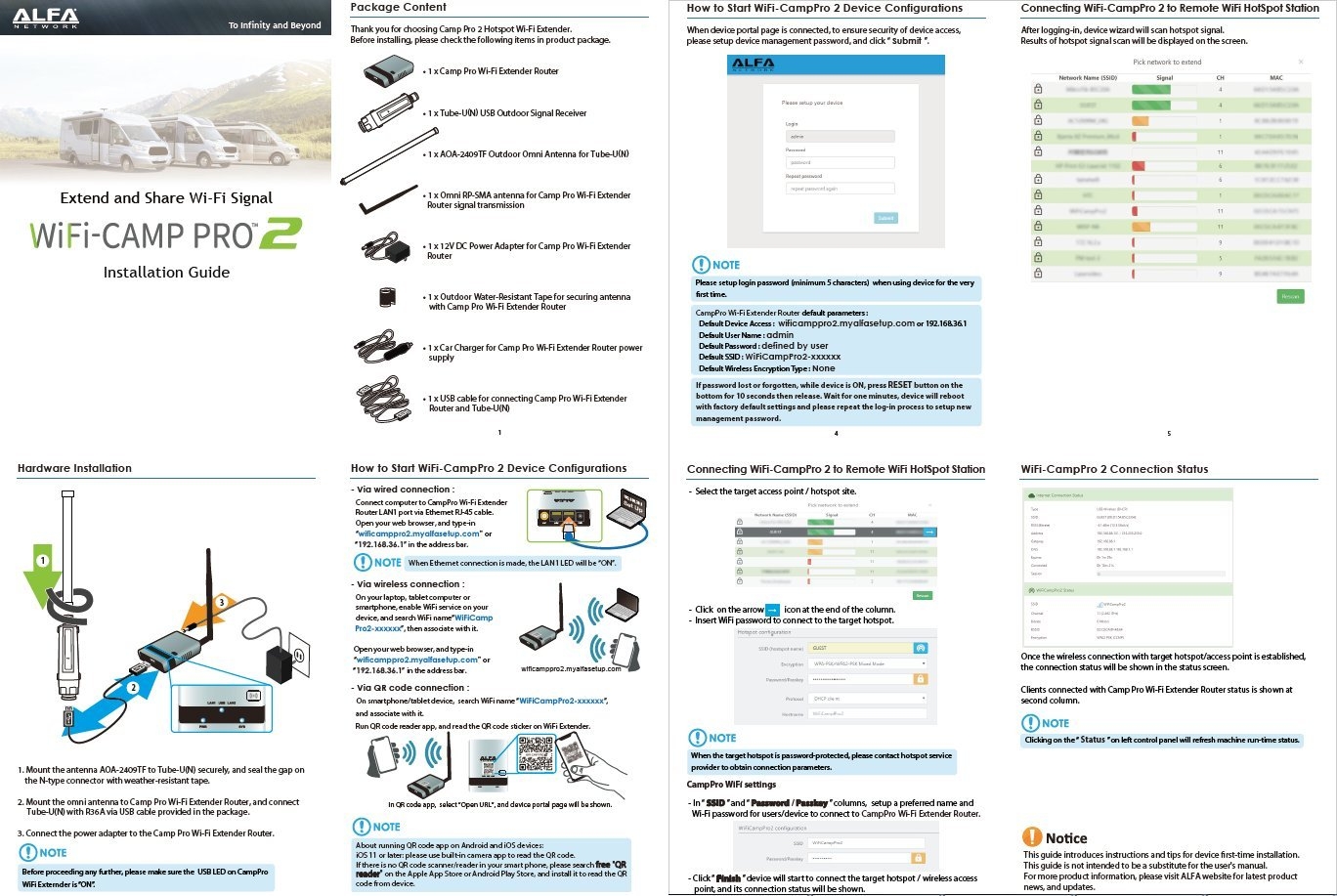

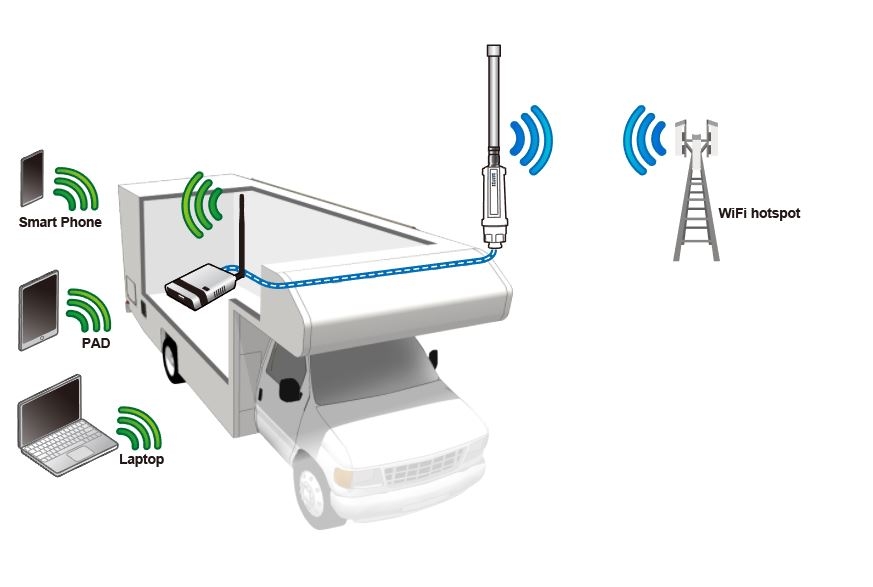

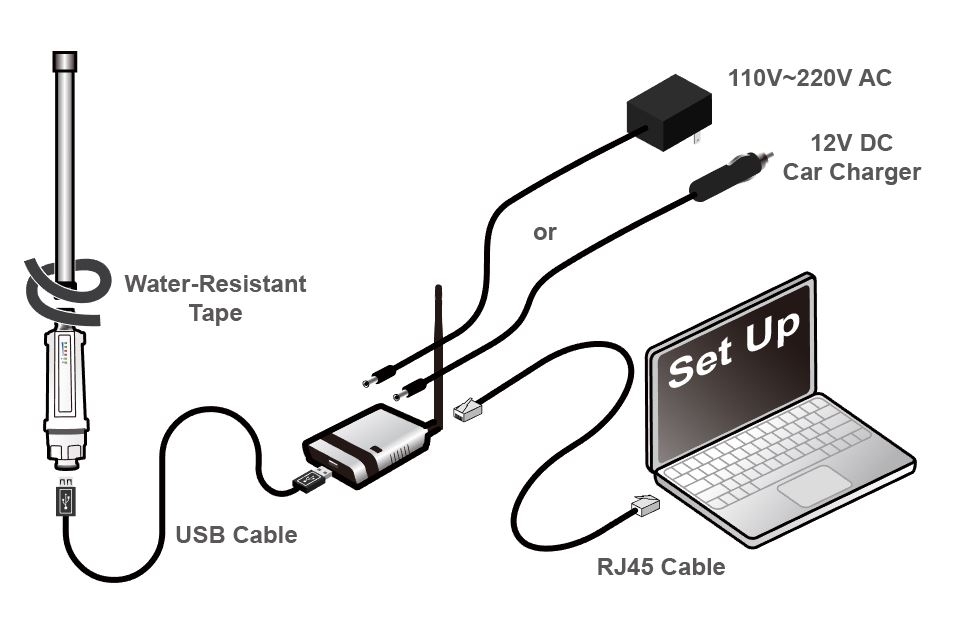

How it works

Use all three of these components above together to boost and share a Wi-Fi signal. Simply connect your computer to the R36A via ethernet cable for a one-time configuration and setup. Connect the AOA-2409TF antenna to the Tube-U(N) receiver, then connect the Tube-U(N) to the USB port on the R36A. Using Wi-Fi scanning software built-into the R36A that you will see during the setup wizard, you can scan for and connect to available wireless networks in your area. Once the R36A has connected to a network, you will be prompted to name and password protect your own new local Wi-Fi network, offering any device within a few hundred feet the ability to use the same distant Wi-Fi signal.

Range

There is no specific range that can be computed as range can vary greatly based on environment and environmental factors like obstacles and interference. We recommend using this in an area where other devices can at least get a weak signal to the desired network, such as one bar. If the environment is such that your devices cannot even see the desired network form the place of intended use, the Camp Pro may not work well there.

Specification:

Indoor WiFi Device

Wi-Fi Standard IEEE802.11n
IEEE802.11g
IEEE802.11b
Frequency 2.142 GHz - 2.472 GHz
Channel-Width 20/40 MHz
Data Rate 802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 300 Mbps
Antenna 1x internal
1x external
LED Indicators Power, LAN, WAN, WLAN, USB
Power Requirement 12V DC
Security WEP 64/128 bit
WPA-PSK
WPA-EAP (PEAP/TTLS)
WPA2-PSK
WPA2-EAP
WPA Mixed
802.1x authentication
Operation Temperature -20 °C ~ 40 °C
Storage Humidity 10% ~ 90% (Non-conensing)
Dimension (mm) 93 x 70 x 26 mm
Weight 74g

Outdoor WiFi USB Device

Wi-Fi Standard IEEE802.11n
IEEE802.11g
IEEE802.11b
Frequency 2.142 GHz - 2.472 GHz
Channel Width 20/40 MHz
Antenna Connector N male
Interface USB Type-A
LED Indicator Power / Connection
Power Required 5VDC ± 5%

Outdoor Antenna

Frequency 2400 MHz - 2500 MHz
Gain 9 dBi
Impedance 50Ω
VSWR 2.0 : 1
Radiation Omni
Connector N female
Material Fiber glass
Length 460 mm

Indoor Antenna

Frequency 2400 MHz - 2500 MHz
Gain 5 dBi
Impedance 50Ω
VSWR 2.0 : 1
Radiation Omni
Connector RP-SMA female
Material Rubber
Length 171.5 mm
