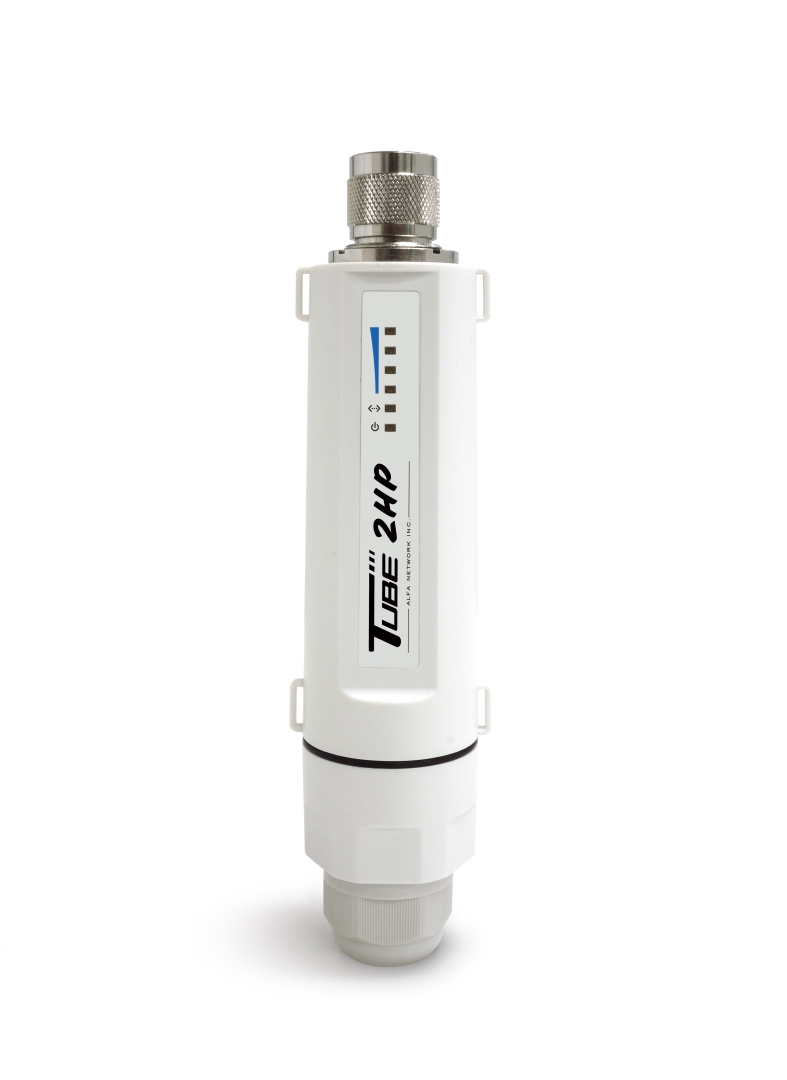

ALFA NETWORK Outdoor Long Range AP/Bridge/CPE (N male) (Tube-2HP)

Order code: Tube-2HP
Quick code: #1992

Outdoor Long Range AP/Bridge/CPE | IP68 Waterproof | N-male | PoE 802.3at/af | 802.11n standard Wi-Fi

Price exc. VAT: Price inc. VAT: For orders (total sum):
33.35£ 40.02£ >0£
32.83£ 39.40£ >300£
32.32£ 38.78£ >1000£
Qty:


Features:

Alfa Tube 2HP is a new outdoor long range AP/Bridge/CPE PoE Wi-Fi product from Alfa Network, Inc. It is 802.11n standard and supports both AP and Client Bridge modes. This means it can be used to transmit or receive a long range Wi-Fi signal outdoors. Because it is Ethernet based, it is OS independent. It can be used with a Mac, PC, or any Ethernet enabled device (it must be configured on a computer using a web browser though).

-IP68 Waterproof Certified

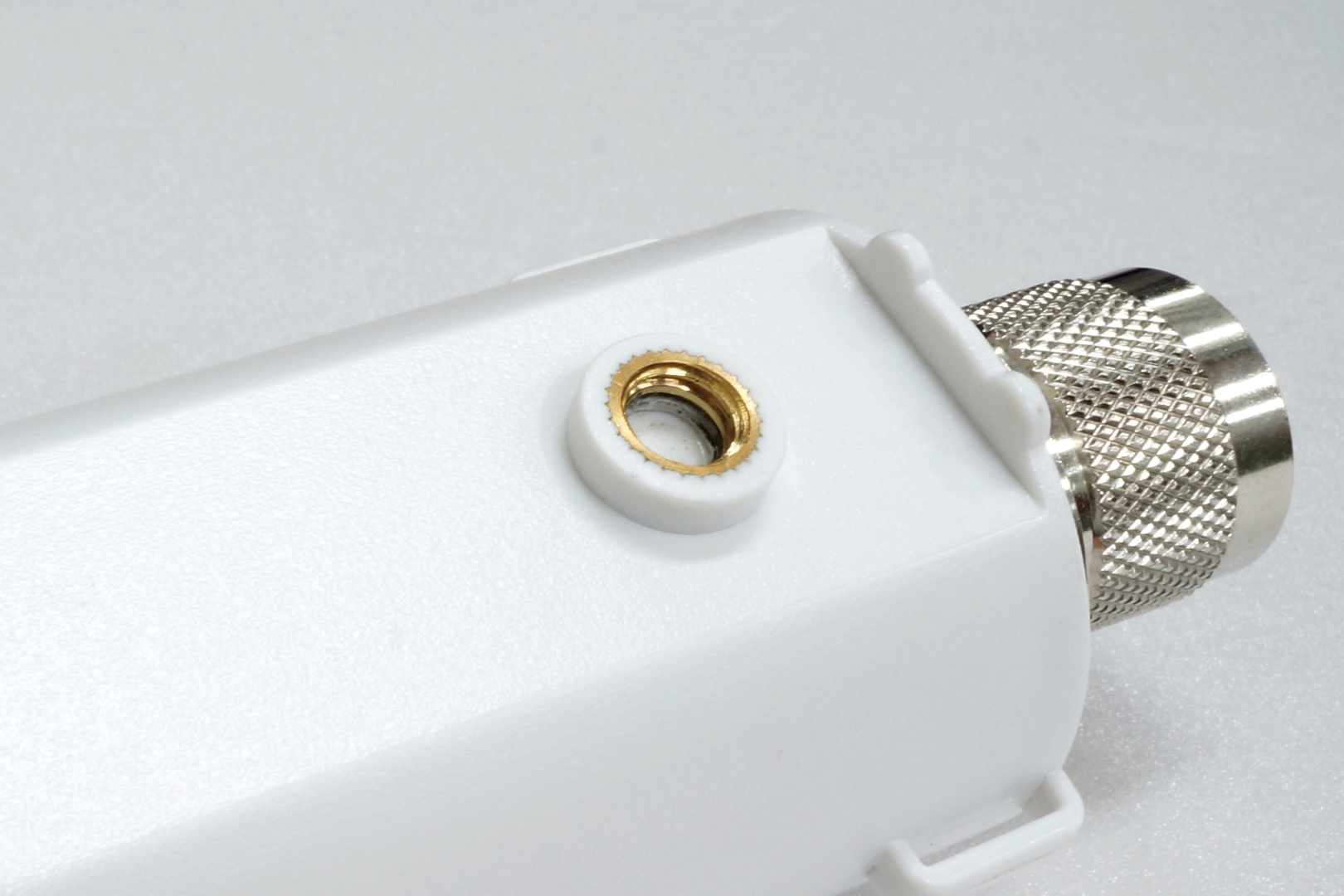

-Easy to mount: 1/4-20 UNC nut
-Includes waterproof sealing tape and wire ties for quick pole mount
-802.3at / af PoE

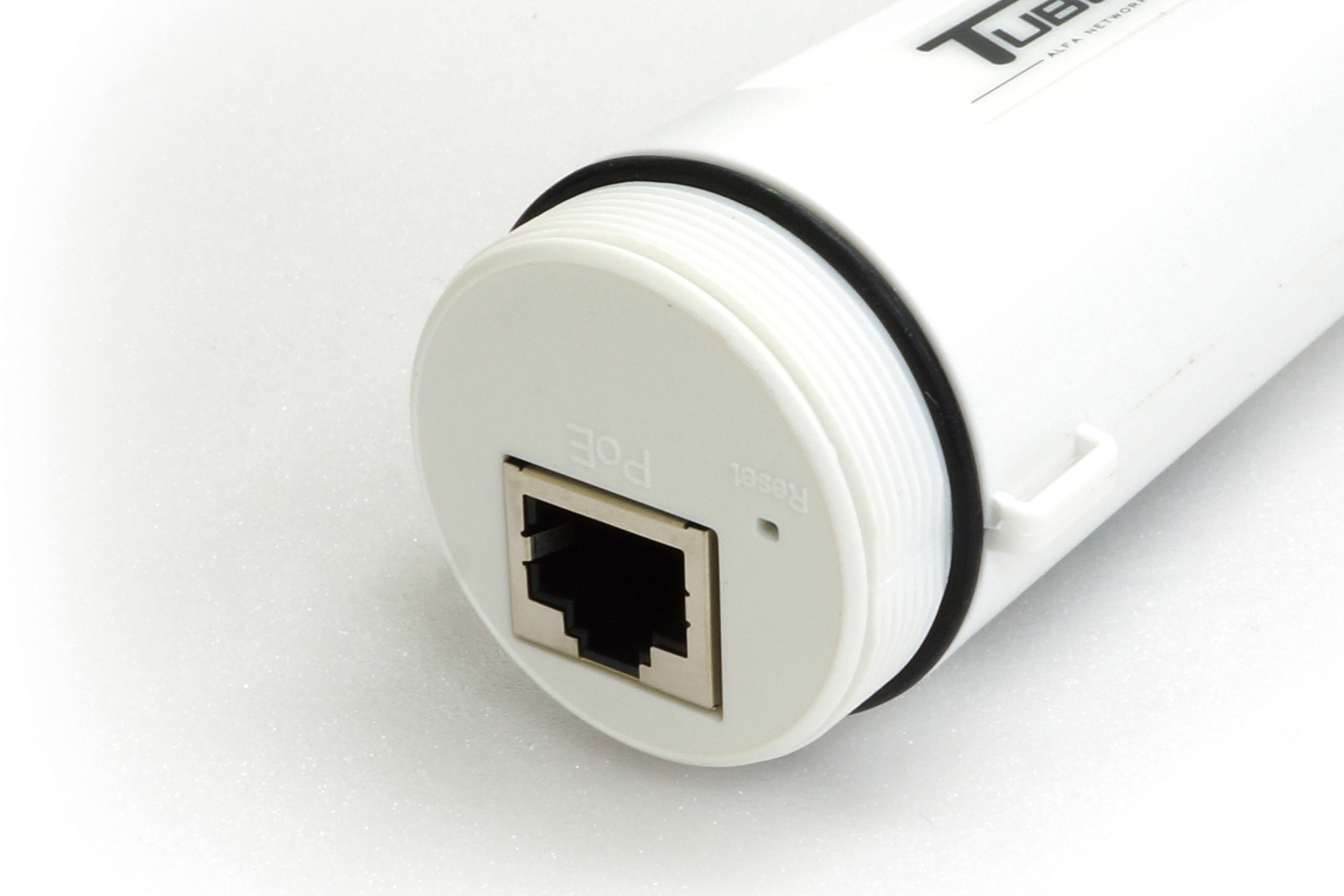

It is a PoE device which means it is accessed and configured via Ethernet cable, and also receives power over the Ethernet cable, so there is no need to run long electrical extensions. We have a selection of different length Ethernet cable available here. This device is suitable for outdoor use in campgrounds and marinas.

Some technical knowledge of access points is required to configure this device.

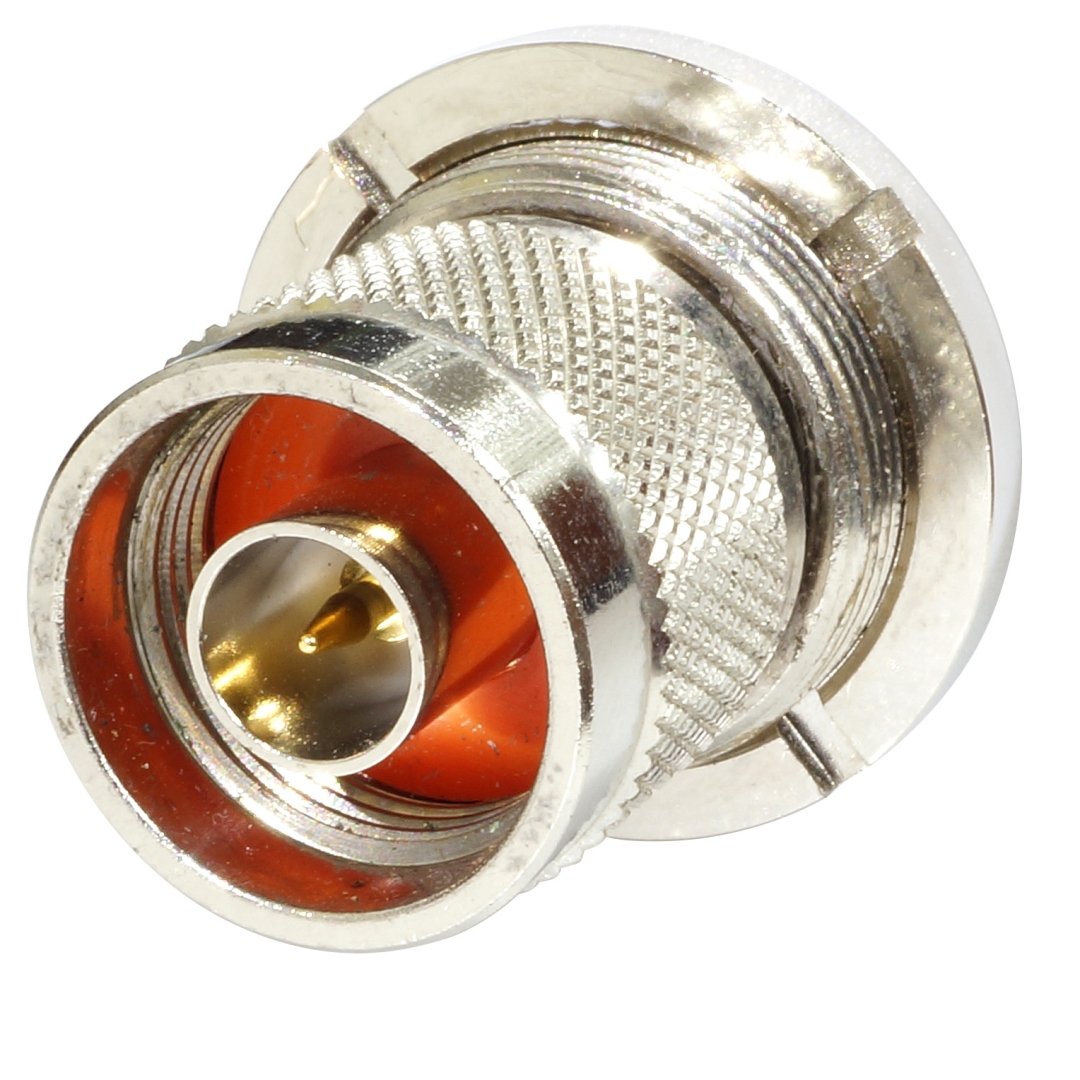

The Tube 2H does not include an integrated antenna. It has an N-male antenna connector that can be used with any N-connector 2.4 GHz antenna. We carry compatible antennas and extension cables.

It ships with mounting ties. No Ethernet cables, No power supply are included.

Specification:

Flash/SDRAM    16M / 64M
MAC/BB processor  AR9331
Transmit power    Max 800mW, regular 400mW
Receive sensitivity -90dBm @ 802.11n
-95dBm @ 802.11b/g
Interface 1x 10-100Base-T RJ-45 Ethernet
Antenna connector N-male
Mounting Pole Mount ( Standard)
1/4-20 UNC nut
Security Wired Equivalent Privacy (WEP) data encryption
Dynamic WEP key exchange
WEP64/128, WPA, WPA2 80211x
Temperature

Operating: -20 ~ 65℃
Storage: -10 ~ 70℃

Humidity Operating: 5 ~ 90%
Frequency 2.4 GHz ISM band
Data Rate 802.11bg: Up to 54Mbps
802.11n: Up to 150Mbps
PoE powering 802.3at / af
