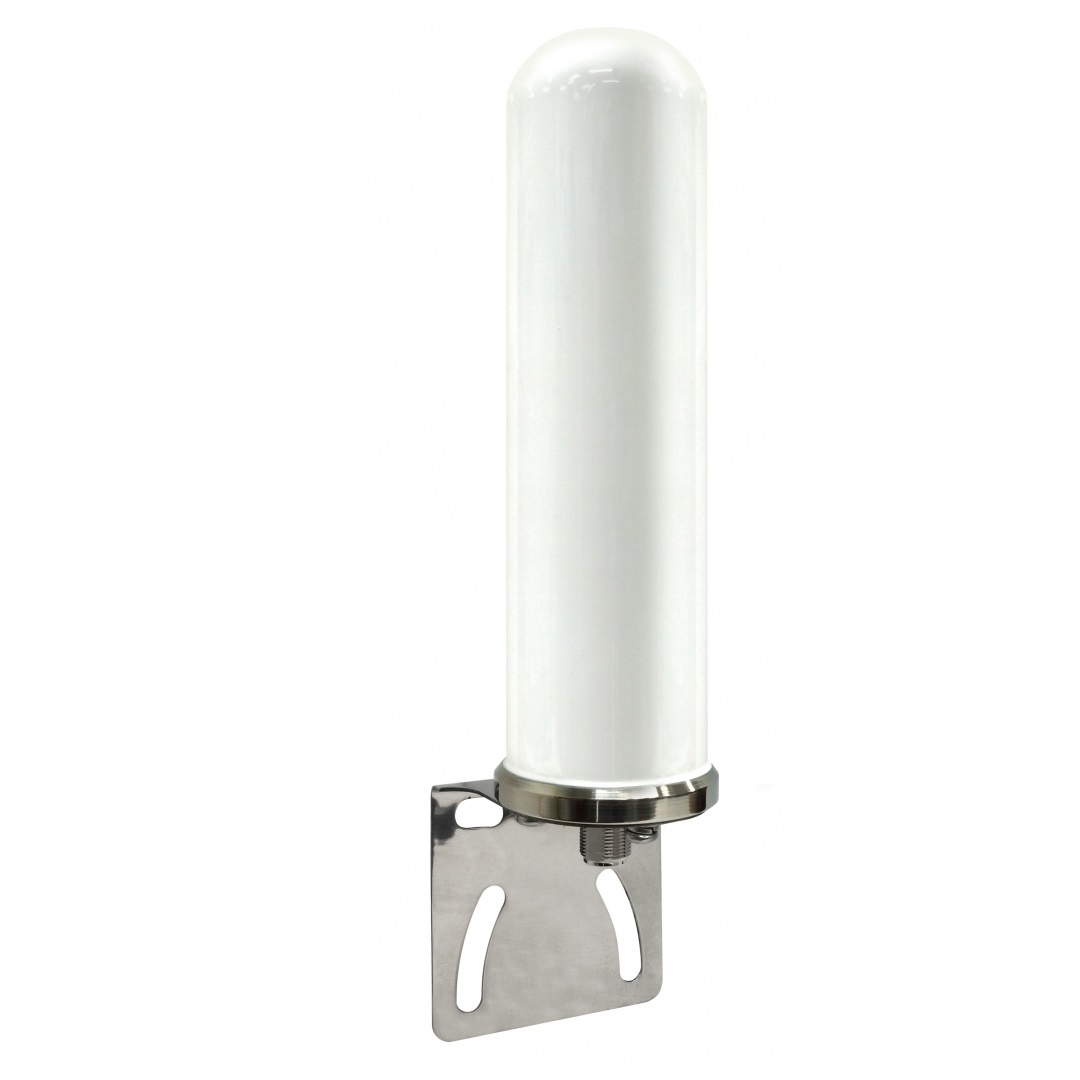

ALFA NETWORK Marine Grade 4G/LTE 6dBi Omnidirectional Antenna (AOA-M4G)
MPN:
AOA-M4G
Order code:
AOA-M4G
Quick code:
#2006
EAN:
4718050305575
Weatherproof 4G omnidirectional antenna that is ideal for marine application
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 38.16£ | 45.79£ | >0£ |
| 37.58£ | 45.10£ | >300£ |
| 36.99£ | 44.39£ | >1000£ |
Features:
ALFA AOA-M4G is a weatherproof 4G omnidirectional antenna that is ideal for marine application. The omni antenna has a gain of 6dBi and covers all 4G frequency bands (800, 1800, 2600 MHz). Due to the materials used and the robust construction, the AOA-M4G antenna withstands even extreme weather conditions and aggressive seawater.
Specification:
|
Frequency Range |
698-960 MHz, 1710-2700 MHz |
|
Gain |
4/6 dBi |
|
V.S.W.R |
<1.5 |
|
Radiation |
Omni Direction |
|
Horizontal Beam width |
360º |
|
Vertical Beam width |
18º |
|
Polarization |
Vertical |
|
Maximum Input Power |
100 W |
|
Impedance |
50 ohm |
|
Connector |
N Female |
|
Antenna Material |
Fiberglass |
|
Mount type |
Pole |
|
Diameter of Installation Pole |
Ø30 - Ø50 mm |
|
Dimensions |
Ø63 x 220 mm |
|
Weight |
1.2 kg |
|
Operating Temperature |
-40ºC - 70ºC |
|
Rated wind velocity |
60 m/s |
