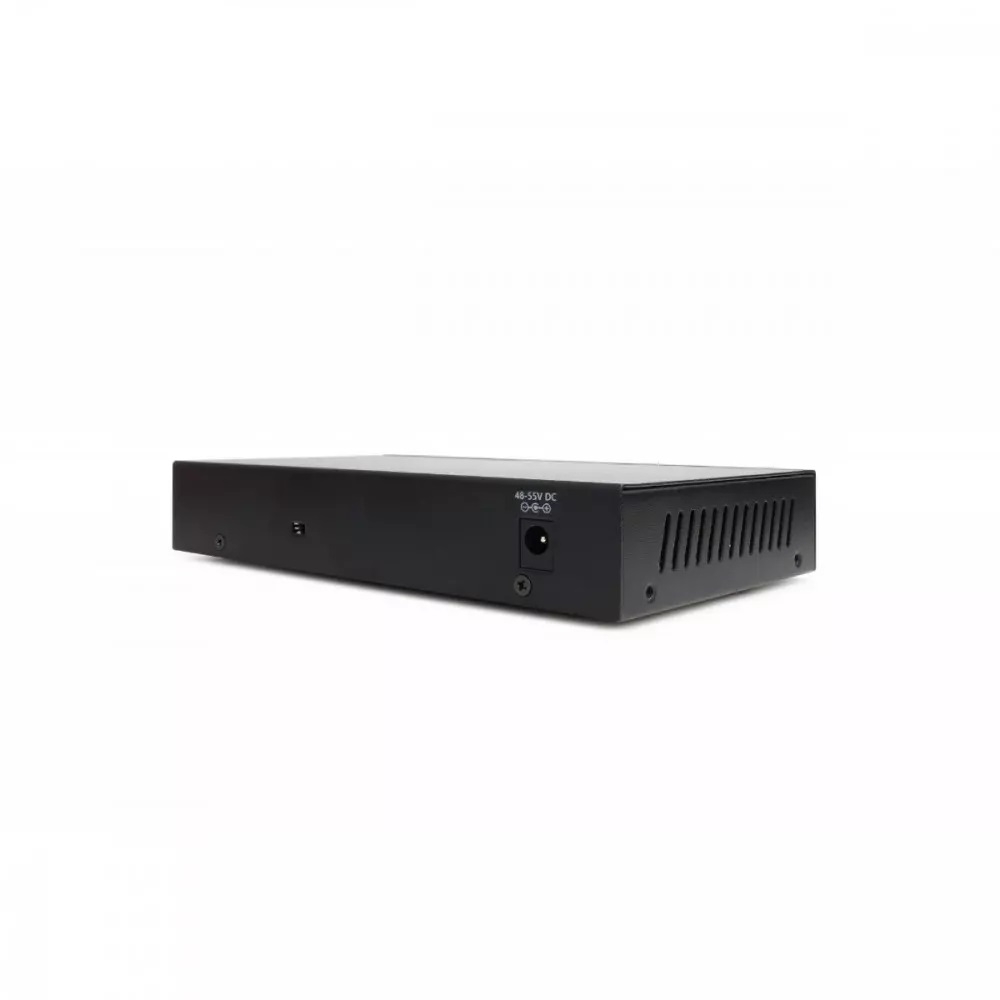

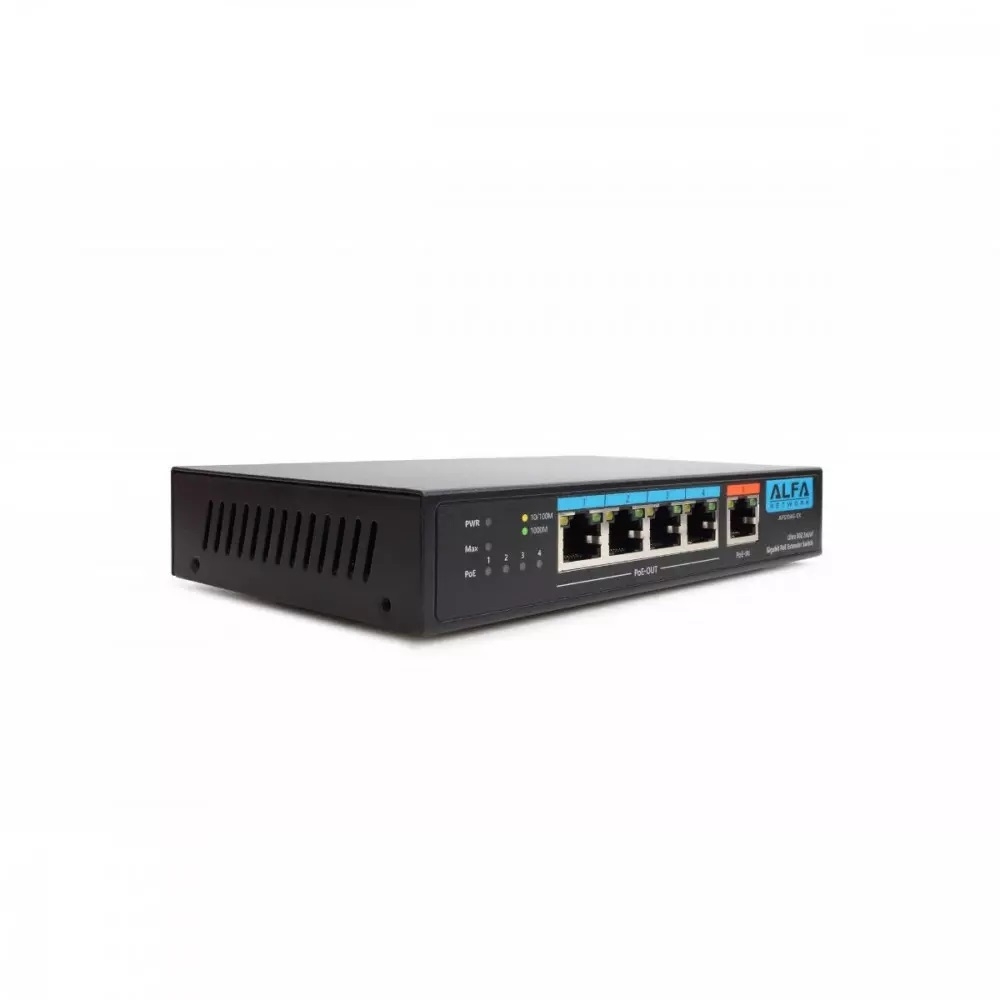

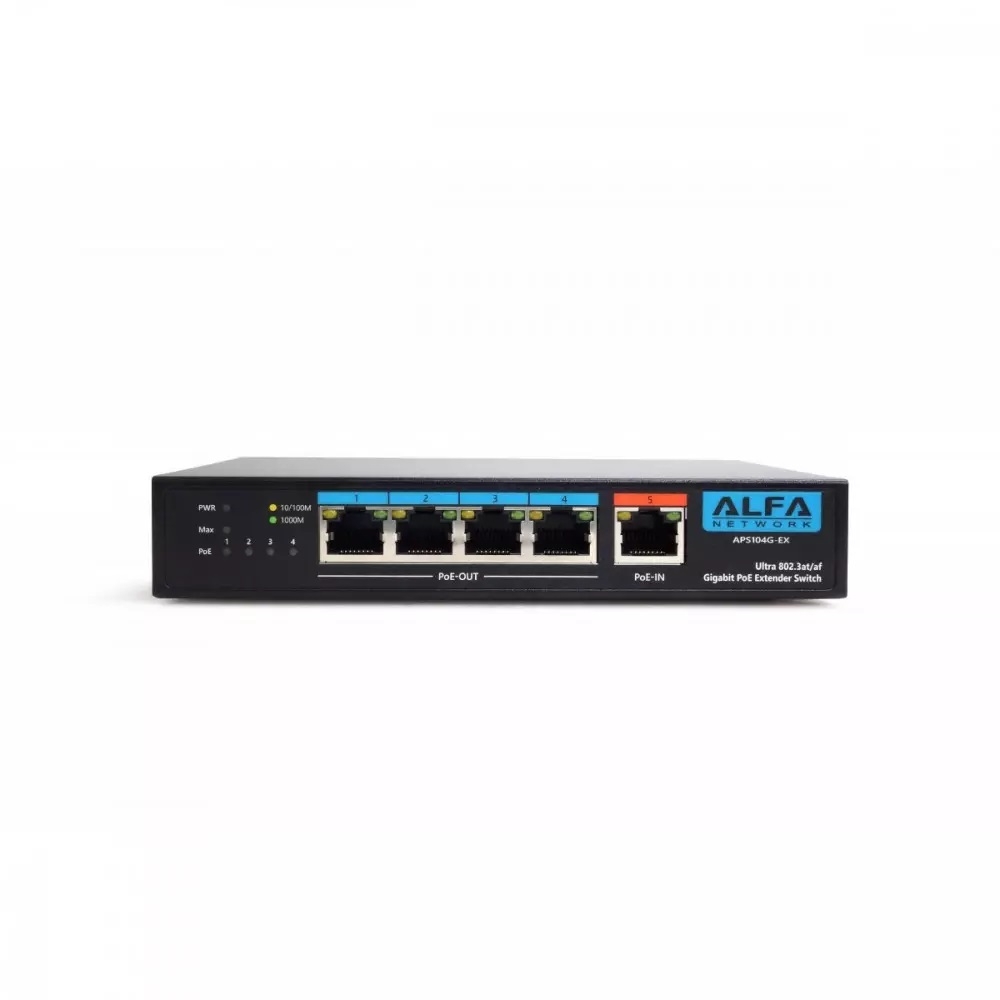

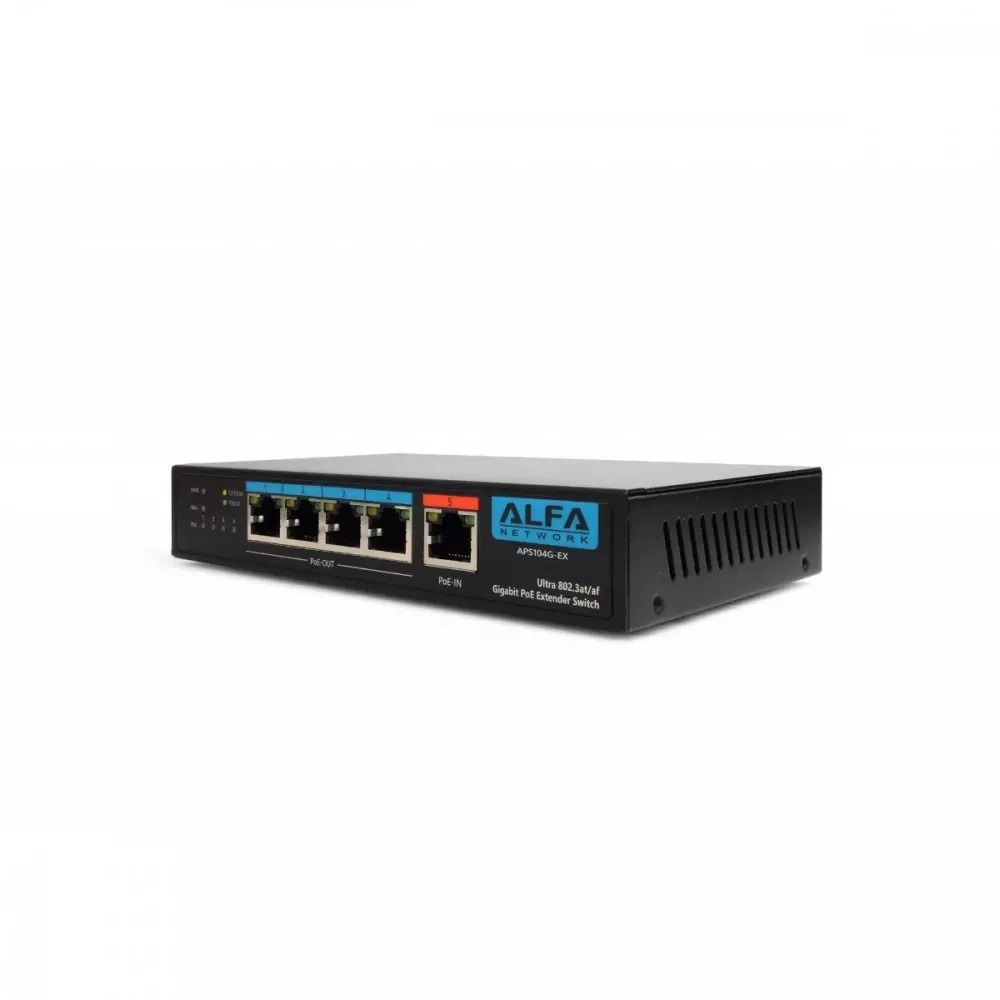

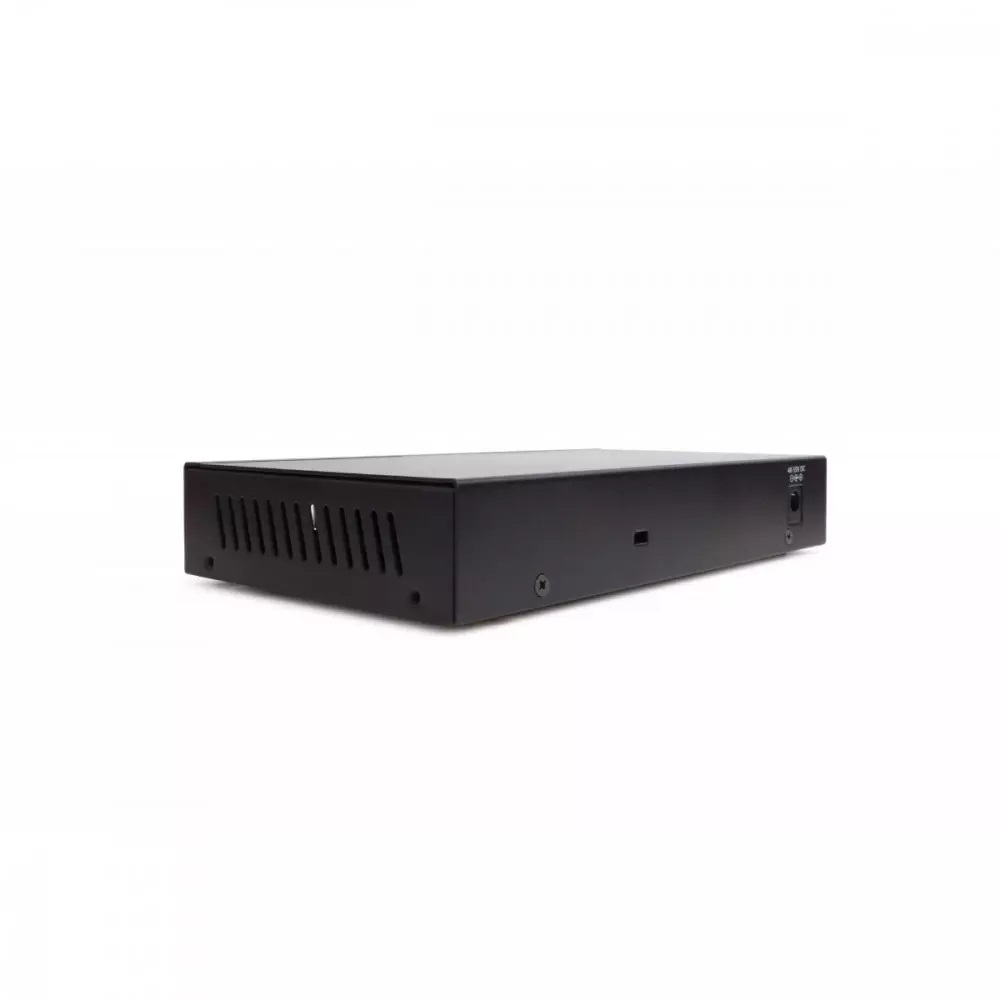

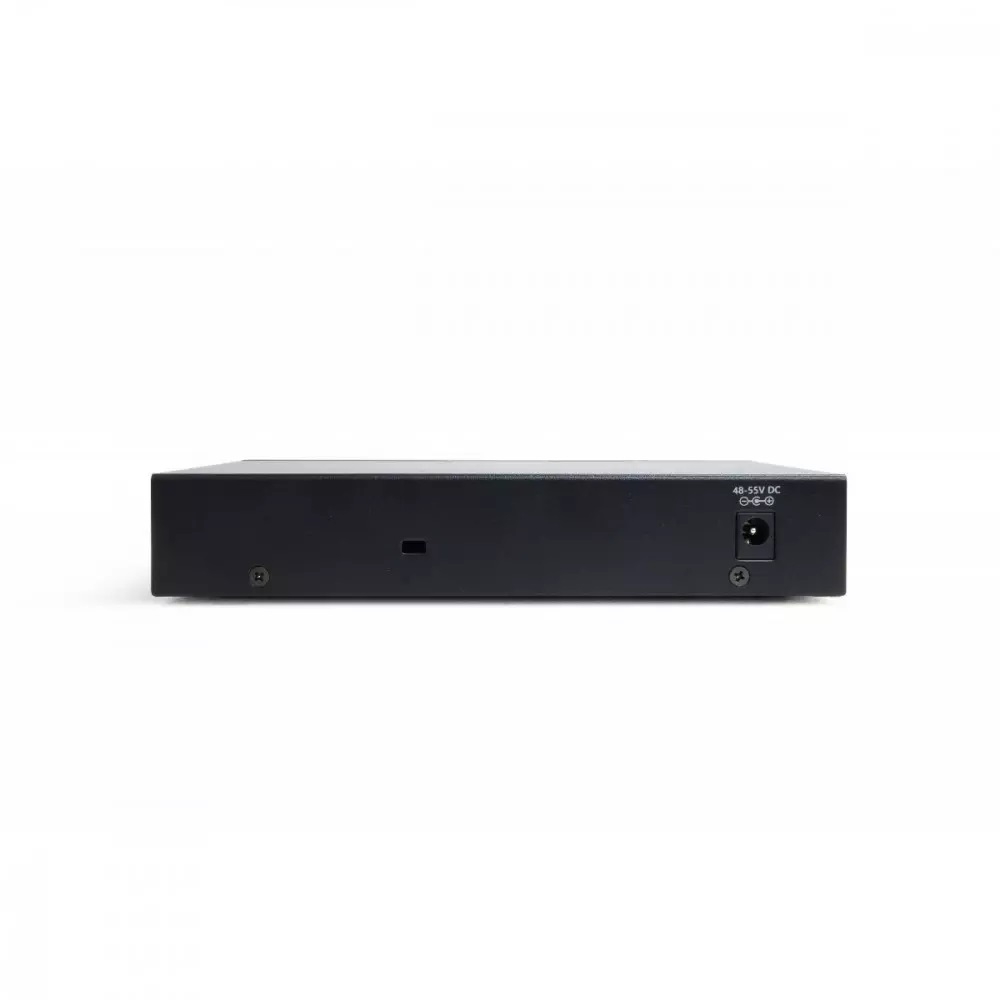

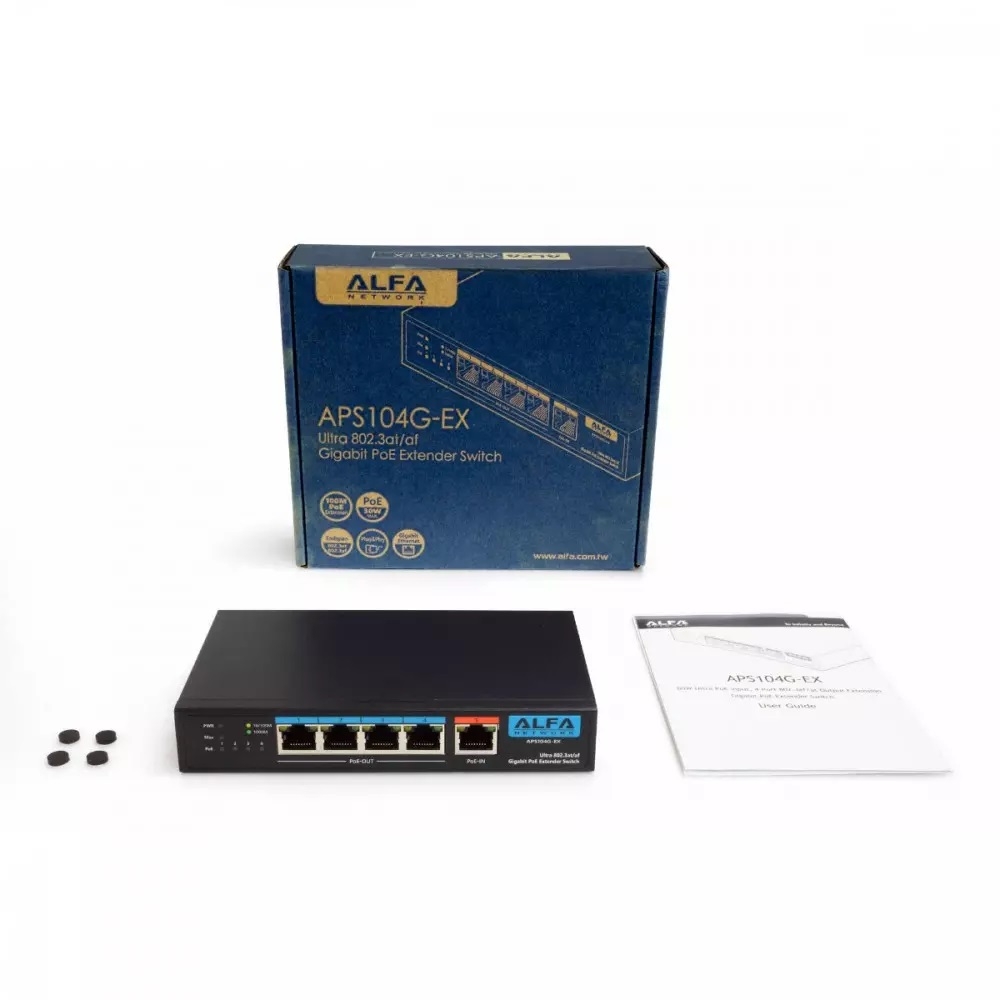

ALFA NETWORK 60W Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Switch (APS104G-EX)
MPN:
APS-104G-EX
Order code:
APS104G-EX
Quick code:
#3681
EAN:
4718050306602
5x Gigabit LAN Ports (1x Ultra PoE 802.3bt Input, 4x Data + Power 802.3af/802.3at Output) | Plug-n-Play | Fanless | Rugged & Reliable Design
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 30.82£ | 36.98£ | >0£ |
| 30.34£ | 36.41£ | >300£ |
| 29.86£ | 35.83£ | >1000£ |
Features:
- Ultra-Fast Gigabit speed, Rapid Data Transmission
- Plug & Play Deployment, NO Expertise Required
- Fanless, Rugged & Reliable Design
- Real Time LED Indicators
- 802.3af/at Power over Ethernet compliant, Max. 30W per port
- Fit on Desktop or Bring It to Rackmount
Specification:
Standards
| Network Standards | IEEE802.3 IEEE802.3u IEEE802.3ab IEEE802.3az IEEE802.3x IEEE802.3af IEEE802.3at |
| Network Media | 10BASE-T: UTP category 3,4,5 cable (≤100m) 100BASE-TX: UTP category 5,5e cable (≤100m) 1000BASE-T: UTP category 5e,6 cable (≤100m) |
| Energy Saving | IEEE 802.3az |
| MAC Address Table | 2K, Auto-learning, Auto-aging |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 10Gbps |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
Hardware Specifications
| Ethernet Ports | 5 x 10/100/1000 BASE-T RJ45 Auto-MDI/MDI-X ports |
| PoE PD (power-in) Port | Port 5, 802.3bt PoE end-span and mid-span PD compatible Max. 60 watts input |
| PoE Injector (power-out) Port | Port 1 – port 4 with 802.3at/af PoE , Max. 30/15.4 watt output |
| LED | PWR (Green) Max (Orange) PoE (Orange) 10/100Mbps LNK/ACT (Orange) 1000Mbps LNK/ACT (Green) |
| Power Requirements | 802.3bt PoE, (optional : DC power adapter) |
Power over Ethernet
| PoE Power-in Requirement | 802.3bt ultra PoE |
| PoE Power Output | 802.3af: Max. 15.4 watt 802.3at Max. 30.8 watts |
| PoE Power Budget | 60 watts (max.) @ 25 degrees C |
| PoE Ability | Input: 60W / 802.3bt, output: 30W / 802.3at, 15.4W / 802.3af |
| ESD Protection | 4KV Contact Discharge, 6KV Air-Discharge |
| Dimensions (W x D x H) | 160 x 93 x 28 mm |
| Weight | 380g |
Environmental
| Operating Temperature | 0°C ~ 40 °C (32 °F ~104°F ) |
| Storage Temperature | -40 °C ~ 70 °C (-40 °F ~158°F ) |
| Operating Humidity | 10% ~ 90% non-condensing |
| Storage Humidity | 5% ~ 90% non-condensing |
