ALFA NETWORK 5-speed 10 GbE PCIe network adapter (APCIE-10GA)

MPN: APCIE-10GA
Order code: APCIE-10GA
Quick code: #3052

auto-negotiation feature which allows optimal selection of the best possible speed (10/5/2.5/1 GbE or 100 MbE) over Cat5e, Cat6 or better cabling | PCI Express 3.0 ×4 host interface | Aquantia™ AQtion™ AQC107 chipset

new
Price exc. VAT: Price inc. VAT: For orders (total sum):
62.93£ 75.52£ >0£
61.93£ 74.32£ >300£
60.92£ 73.10£ >1000£
Qty:


Features:

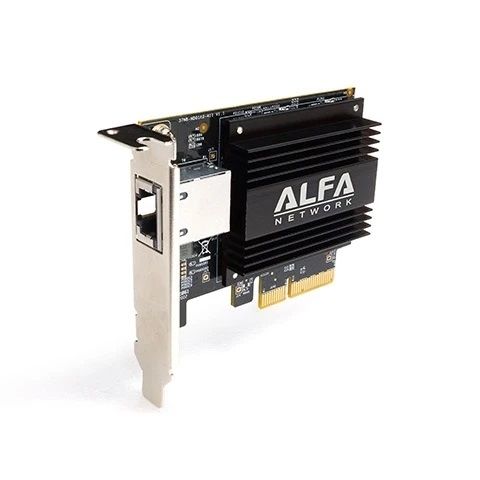

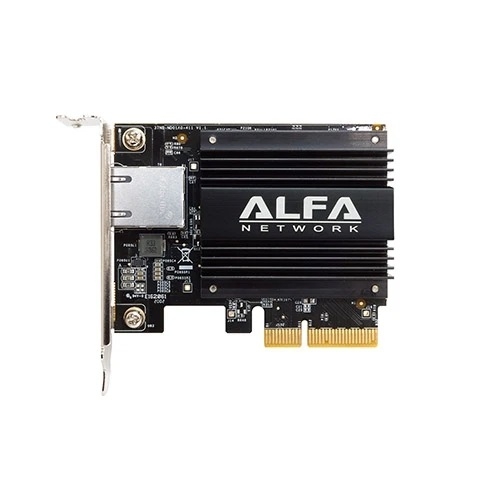

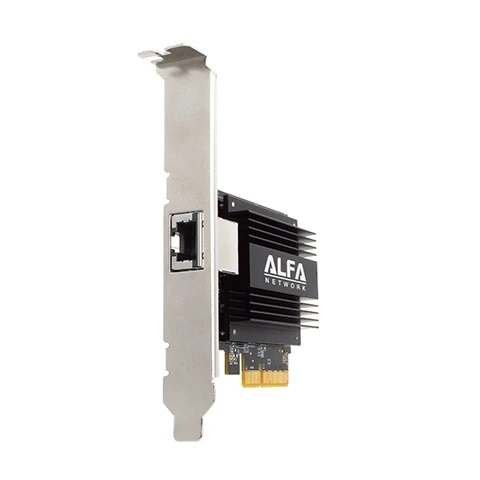

APCIE-10GA is a 10G PCI Express network interface card based on Aquantia™ AQC107 chipset

The multi-gigabit APCIE-10GA network adapter supports auto-negotiation feature which allows optimal selection of the best possible speed (10/5/2.5/1 GbE or 100 MbE) over Cat5e, Cat6 or better cabling.

With PCI Express ×4 connector, this product has a great flexibility and is compatible with PCIe ×8 and ×16 interfaces.

Low profile design makes it possible to use the card in regular and small form factor PC. Software support for modern operating systems (Microsoft Windows and Linux) helps with seamless integration.

- Aquantia™ AQtion™ AQC107 chipset
- PCI Express 3.0 ×4 host interface
- 1× RJ-45 with link and activity LEDs

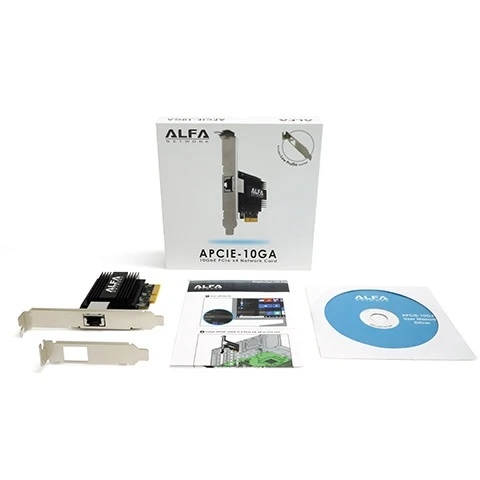

- Low profile form factor (regular and low profile brackets in bundle)
- Large heatsink for efficient, passive cooling

Specification:

Chipset Aquantia™ AQtion™ AQC107
IEEE 802.3 standards IEEE 802.3ab
IEEE 802.3an (10GBase-T)
IEEE 802.3az
IEEE 802.3bz (NBASE-T)
IEEE 802.3u
IEEE 802.3x (flow control)
Features Advanced Configuration and Power Interface (ACPI)
IPv4, IPv6/TCP and IPv6/UDP checksum offload
MSI, MSI-X and legacy INTx PCIe interrupts
IEEE 802.1QAV Audio Video Bridging (AVB)
IEEE 802.1P Quality of Service (QoS)
Energy Efficient Ethernet (EEE)
UEFI and PXE boot options
Receive-Side Scaling (RSS)
Large Send Offload (LSO)
Windows Diagnostics
Wake-on-LAN (WoL)
auto-negotiation
16K jumbo frame
1588v2
Interface PCI Express 3.0 ×4
1× RJ-45
LED 1× 5/2.5/1 GbE and 100 MbE link/activity (yellow)
1× 10 GbE link/activity (green)
Operating systems Microsoft Windows 7, 8, 8.1 and 10
Linux
Form factor Low profile PCI Express card
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature 0 ° ~ 55 ° C
Dimensions 68 × 82 × 15 mm
