ALFA NETWORK 4G/LTE 18dBi Directional Outdoor Antenna (AYA-4G-18)
MPN:
AYA-4G-18
Order code:
AYA-4G-18
Quick code:
#3674
EAN:
4718050305582
Weatherproof directional Yagi antenna for 4G, 18dBi, N Male Connector
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 30.65£ | 36.78£ | >0£ |
| 30.15£ | 36.18£ | >300£ |
| 29.63£ | 35.56£ | >1000£ |
Features:

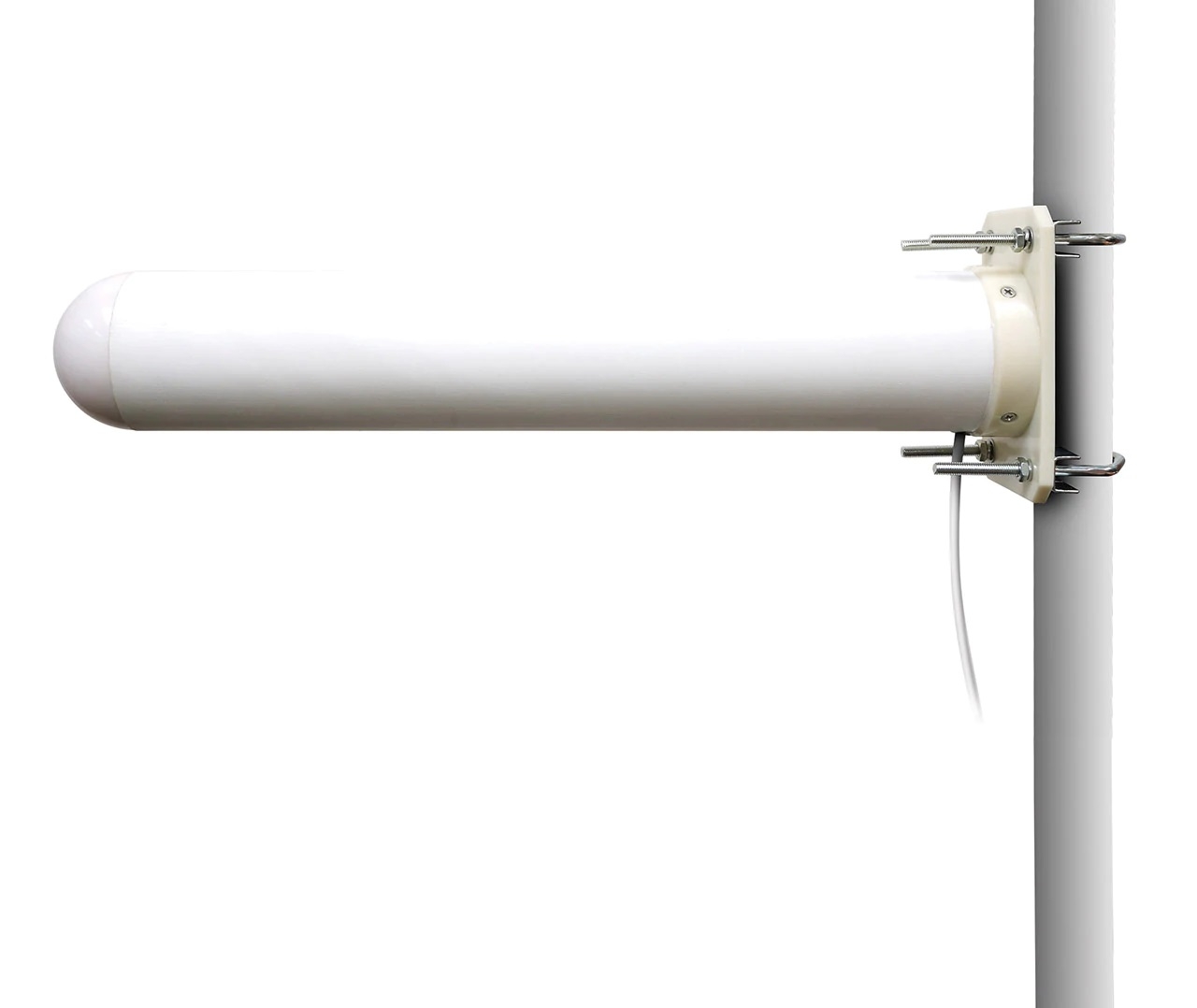

AYA-4G-18 is a directional 4G/LTE Yagi antenna from ALFA Network for outdoor use. It operates in the frequency range 1710-2700 MHz with 18 dBi gain, in vertical or horizontal polarization. Equipped with a waterproof N Male connector.
Specification:
| Frequency Range | 1710-2700 MHz |
| Gain | 18 dBi |
| VSWR | <1.5 |
| Radiation | Direction |

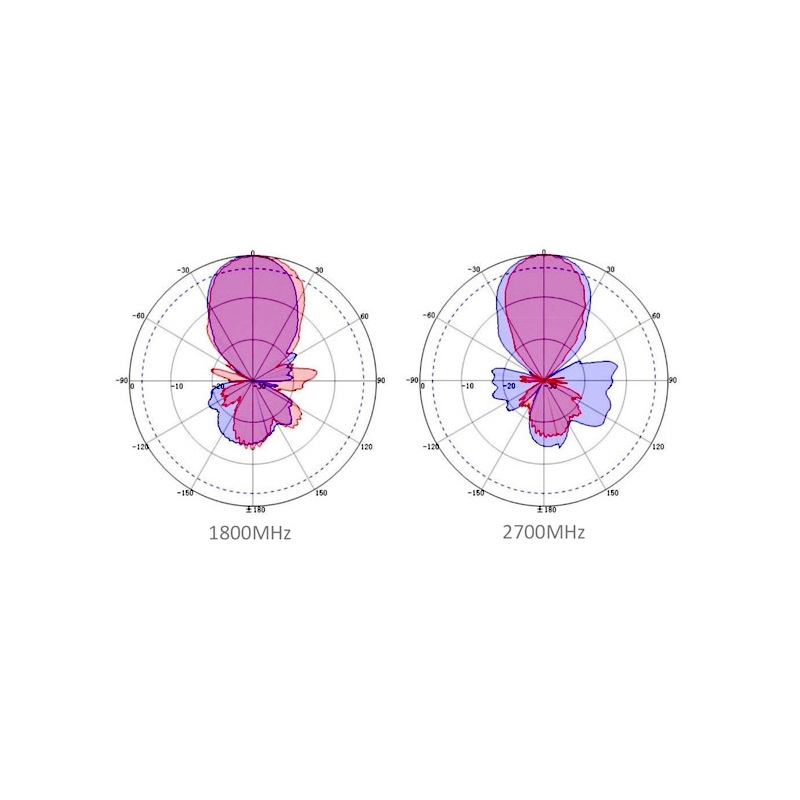

| Horizontal Beam width | 40º |
| Vertical Beam width | 36º |
| Polarization | Vertical Horizontal |
| Maximum Input Power | 100 W |
| Impedance | 50 ohm |
| Connector | N male |
| RF Cable/Length | RG58/30 cm |

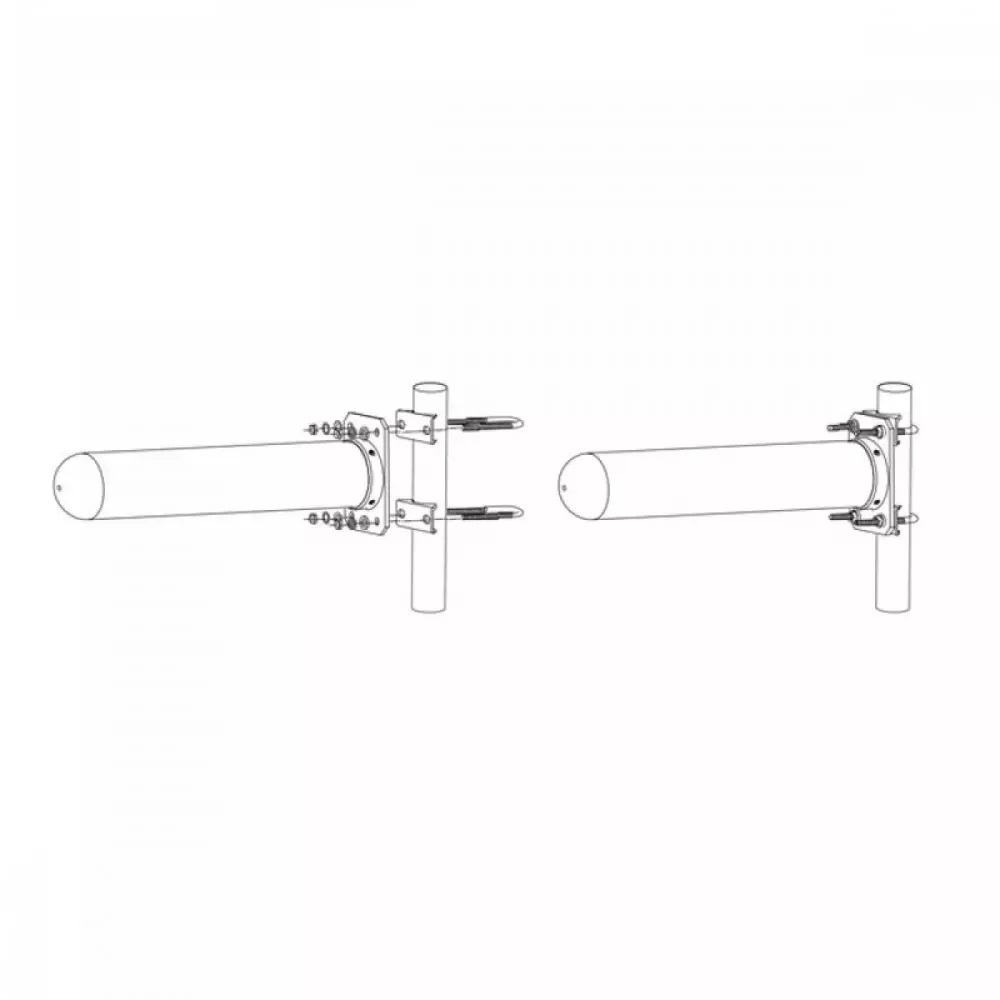

| Mount type | Pole |
| Diameter of Installation Pole | ⌀30 - ⌀50 mm |
| Dimensions | ⌀80 x 450 mm |
| Weight | 800 g |
| Operating Temperature | -40ºC - 70ºC |
| Rated wind velocity | 60 m/s |
