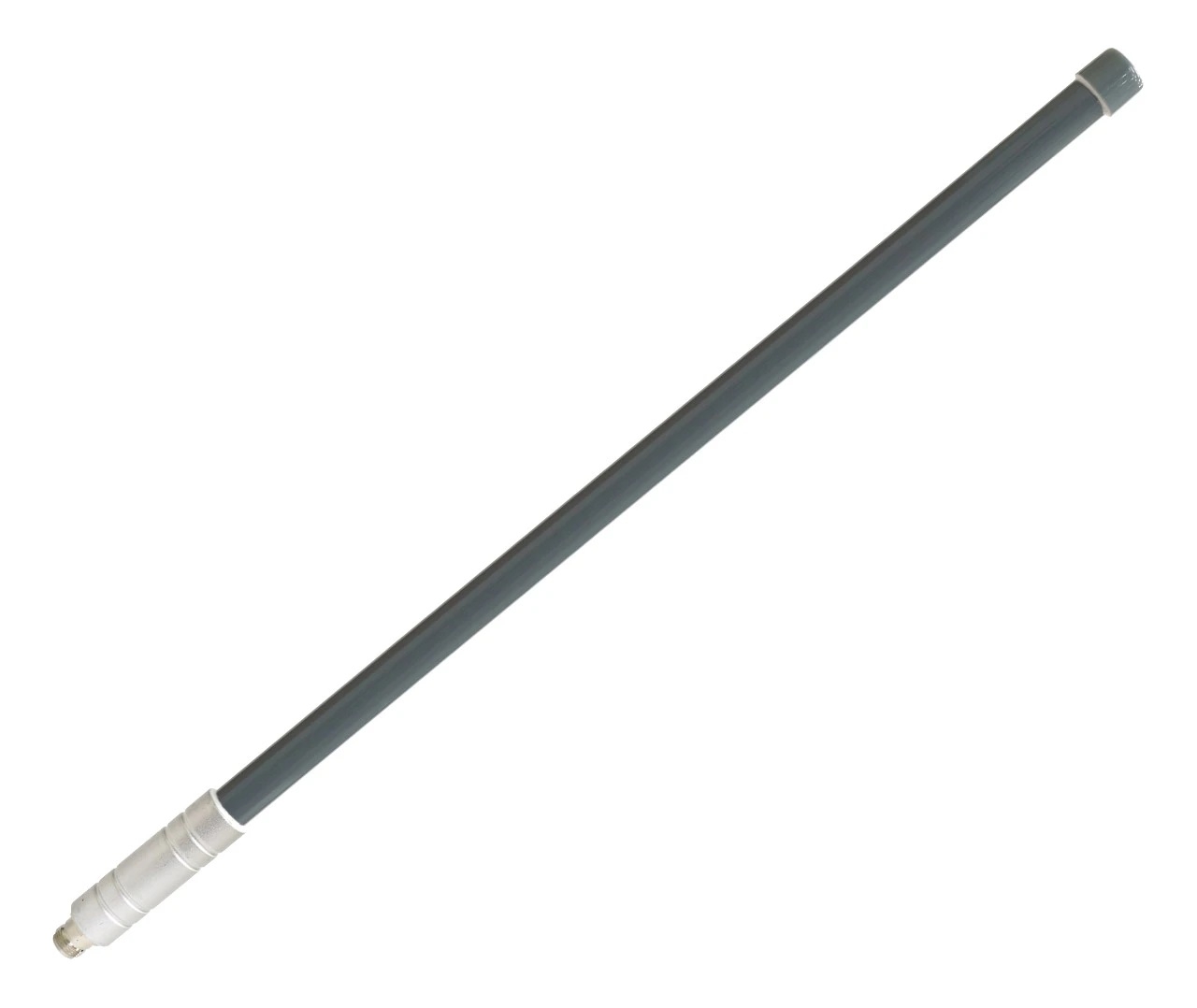

ALFA NETWORK 4G LTE Outdoor Omni Antenna, 8dBi, N-Female (AOA-4G-8F)
MPN:
AOA-4G-8F
Order code:
AOA-4G-8F
Quick code:
#3498
EAN:
4718050305568
Water proof IP67-class antenna for 4G, 8dBi, N Female Connector
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 26.34£ | 31.61£ | >0£ |
| 25.93£ | 31.12£ | >300£ |
| 25.53£ | 30.64£ | >1000£ |
Specification:
| Frequency Range | 698-960 MHz 1710-2700MHz |
| Gain | 6/8 dBi |
| VSWR | <1.5 |

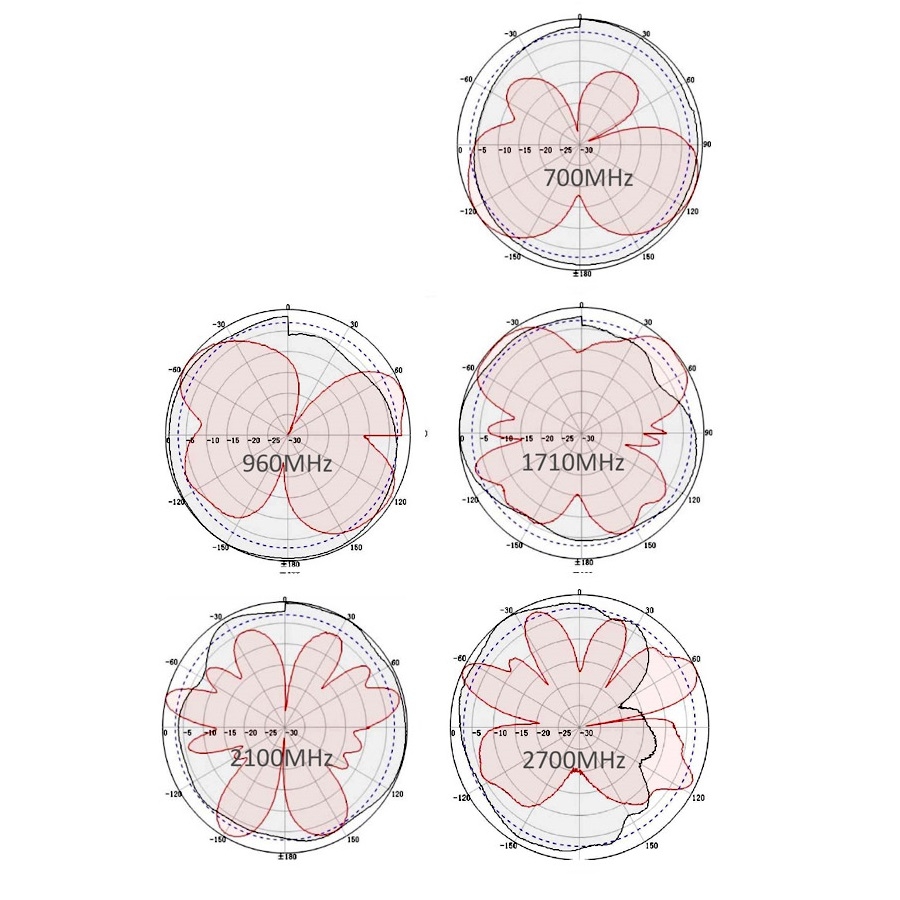

| Radiation | Omni Direction |
| Horizontal Beam width | 360º |
| Vertical Beam width | 16º |
| Polarization | Vertical |
| Maximum Input Power | 100W |
| Impedance | 50 ohm |

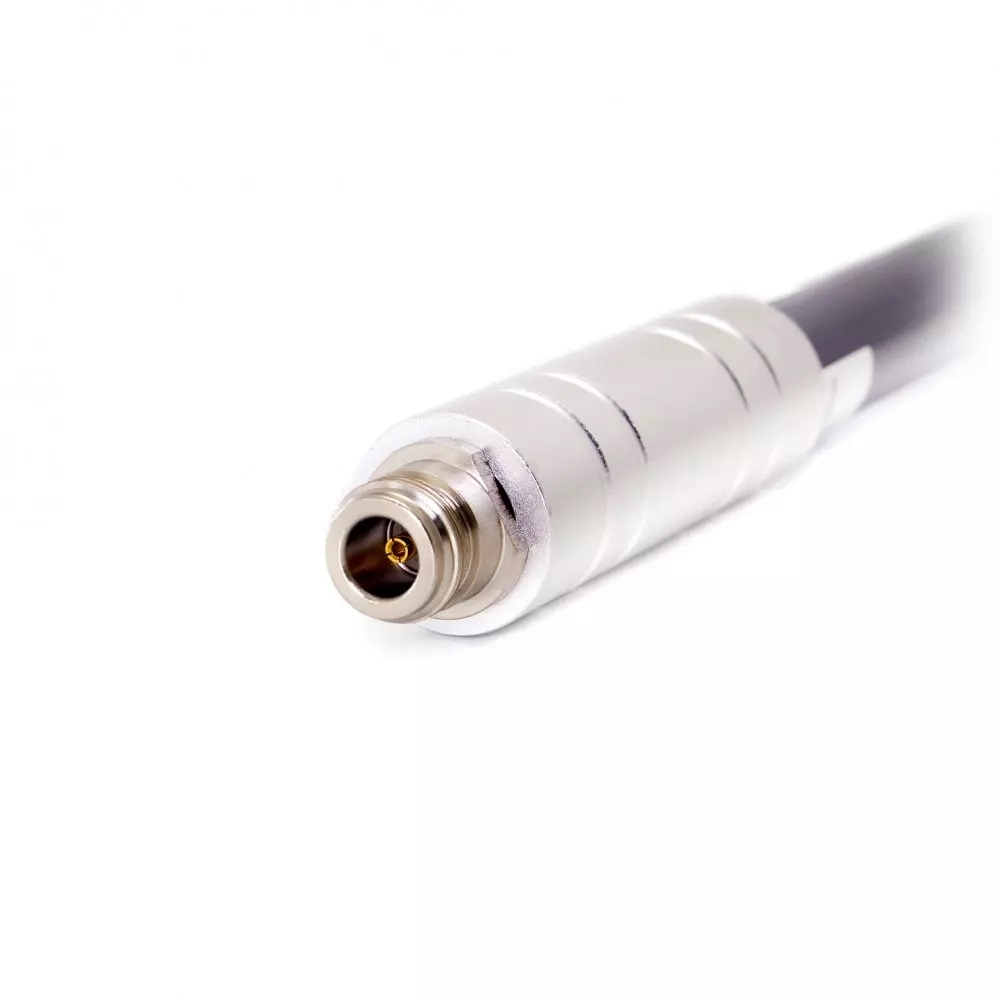

| Connector | N female |
| Antenna Material | Fiberglass |

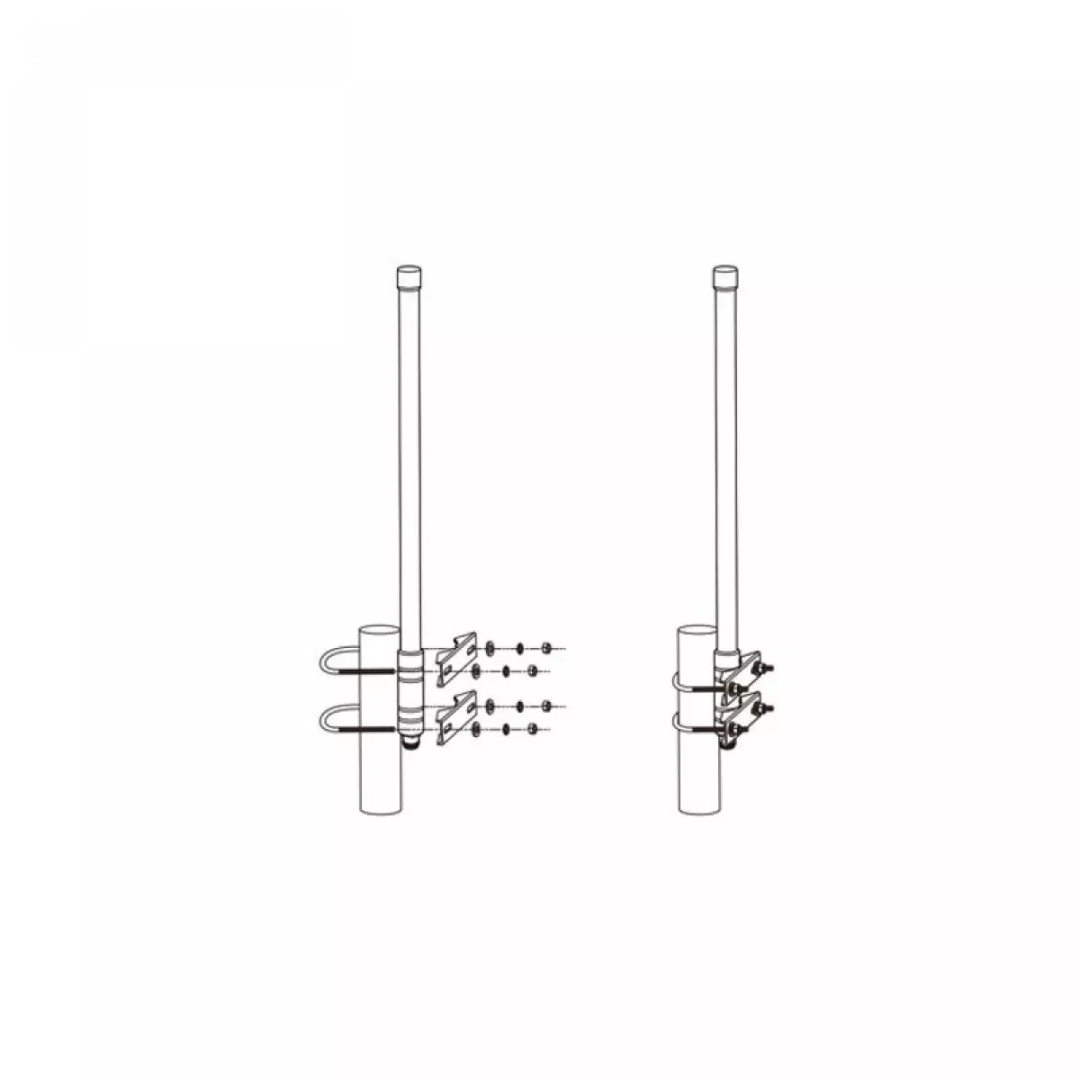

| Mount type | Pole |
| Diameter of Installation Pole | ⌀30-⌀50 mm |
| Dimensions | ⌀20x600 mm |
| Weight | 650g |
| Operating Temperatur | -40 ºC - 70 ºC |
| Rated wind velocity | 60m/s |
