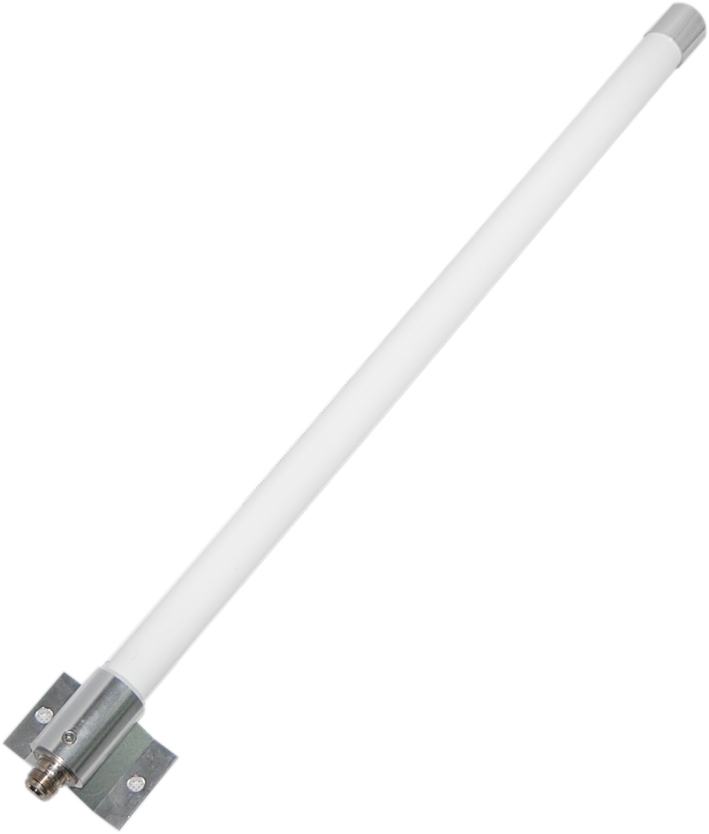

ALFA NETWORK 2.4~2.5 GHz Omni Antenna 15dBi (AOA-2415)

Order code: AOA-2415
Quick code: #1418

Professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value

Price exc. VAT: Price inc. VAT: For orders (total sum):
29.85£ 35.82£ >0£
29.37£ 35.24£ >300£
28.89£ 34.67£ >1000£
Qty:


Features:

Overview

AOA-2415 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value. AOA-2415 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.483 GHz and provides superb performance in IEEE 802.11b/g Wi-Fi and Bluetooth applications. AOA-2415 includes mounting bracket and hardware for up to 2” OD masts. Made with fiberglass.

Application

2.4 - 2.5 GHz ISM Band
IEEE 802.11b, 802.11g, 802.11n Wireless LAN
Directional and multipoint applications
Bluetooth
Public Wireless Hotspot
Wi-Fi, RFID
Wireless Video Systems

Key Features

Superior performance
Light weight
All weather operation
DC Short lightning protection
Installed for vertical
Includes tilt and swivel mast mount
In accordance with customer needs to change the color or features

Specification:

Model AOA-2415
Frequency 2.4GHz ~ 2.5GHz
S.W.R <=1.3
Gain 15dBi
Polarization Vertical
Impedance 50 Ω
Connector N Female
Operation Temp -40℃ ~ +80℃
Dimension 1485*68 mm
Mounting 32 ~ 45 mm ( 1.2 ~1.75 inch )
Weight 910g
