ALFA NETWORK 12-48VDC Passive PoE injector for 8 Gigabit devices (APOE08G)
Simple Power up 8 Ethernet or Gigabit PoE devices by one power source
| Price exc. VAT: | Price inc. VAT: | For orders (total sum): |
| 24.48£ | 29.38£ | >0£ |
| 24.12£ | 28.94£ | >300£ |
| 23.76£ | 28.51£ | >1000£ |
Features:
Compact PoE Solution

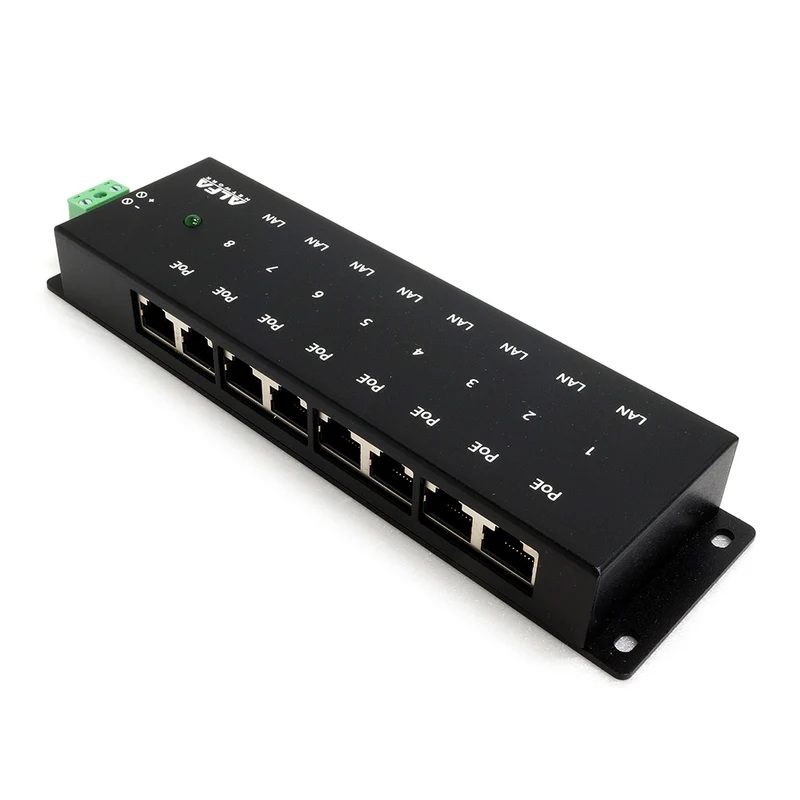

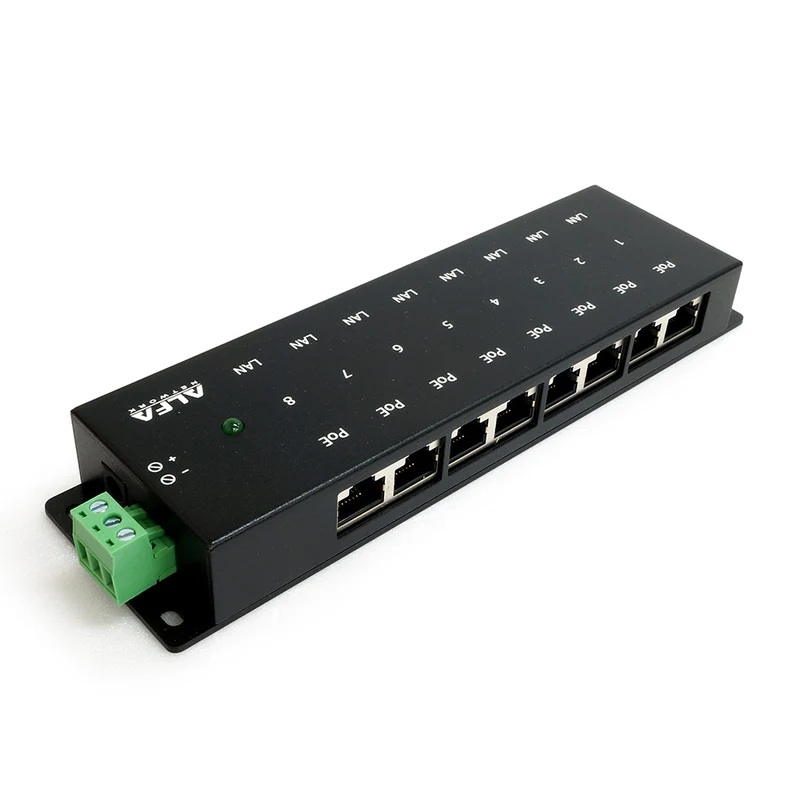

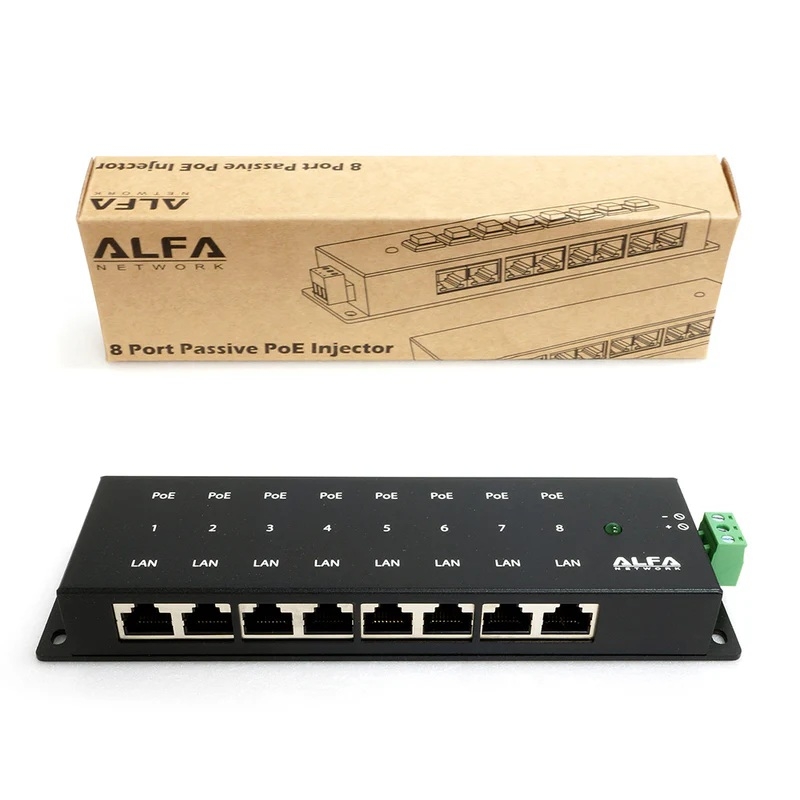

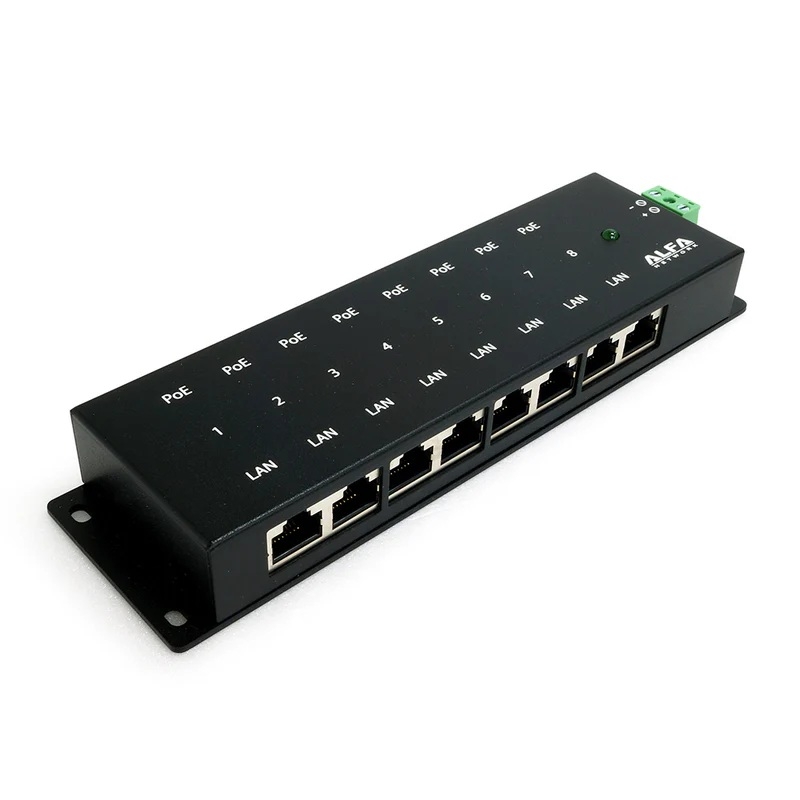

The Alfa APOE08G is an 8-port Gigabit passive PoE injector designed for powering multiple PoE-enabled devices in one centralized setup. Equipped with eight Gigabit RJ45 ports (supporting up to 1 Gbps speeds), it provides simultaneous power and data transmission over standard Ethernet cables. Supporting a wide input voltage range of 12–48 V DC, it offers flexibility with power sources and is compatible with an external AC/DC adapter (not included). The injector uses a 2-pair powering method and supports both DC plug and terminal block connectors for easy installation. Ideal for wireless access points, IP cameras or other PoE-capable devices, the APOE08G simplifies deployments while reducing cable clutter. With passive PoE support across all 8 ports, it’s a cost-effective solution for small and medium networks requiring centralized power distribution.
- Simple Power up 8 Ethernet or Gigabit PoE devices by one power source

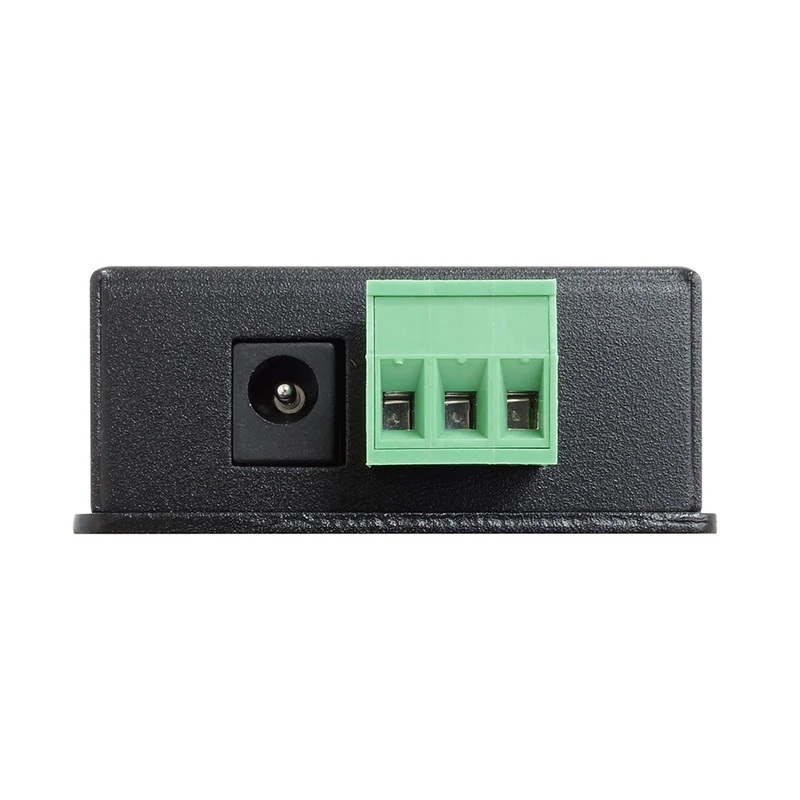

- Power by DC jack or Terminal Block connector
- Application use for AP, IP camera, IP phone
Specification:
| Input Power | 12VDC - 48VDC |
| Output Power | Depends on Input Power |
| Connector | Data In: RJ45 Power In: DC jack or terminal Block Connector Data+Power Out: RJ45 |
| DC Plug Connector | 2.1 x 5.5 mm |
| Data Rate | 10/100/1000Mbps |
| RJ45 PIN Define | Data: all PIN Power: (+)4, 5 (-) 7, 8 |
