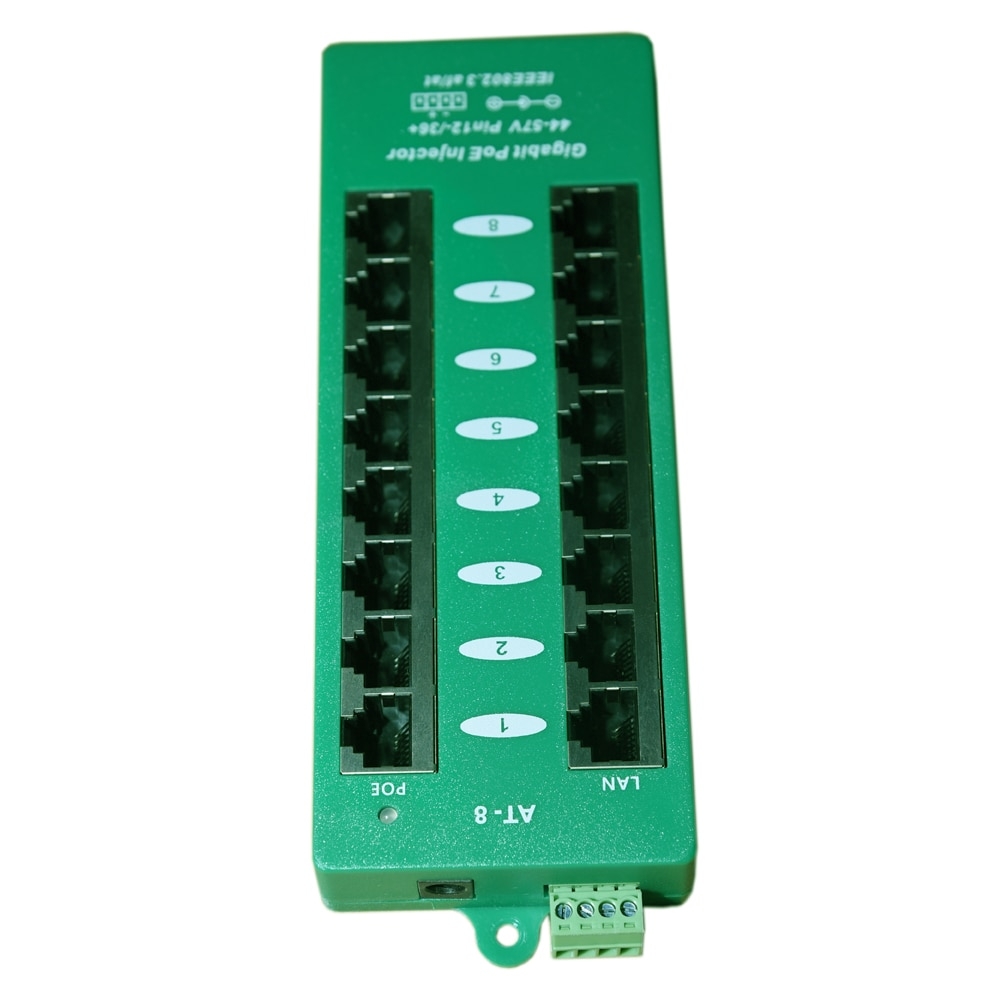

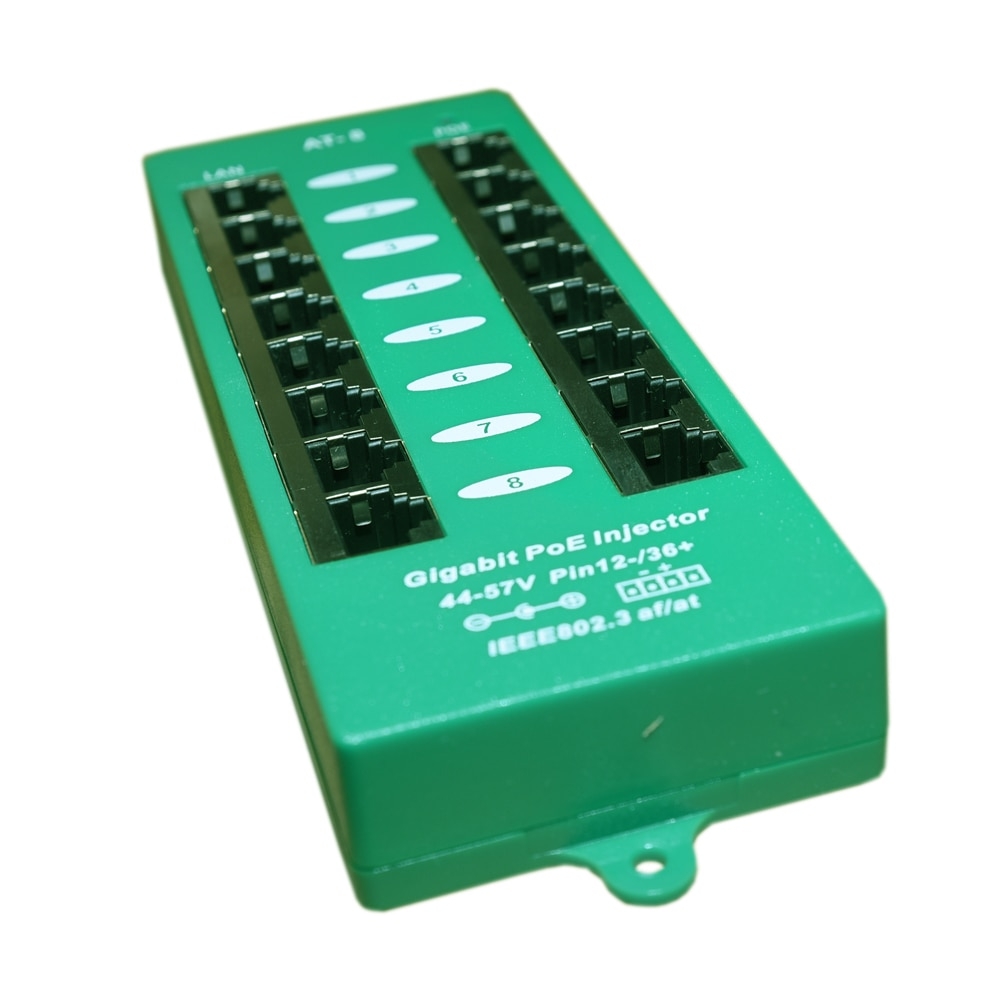

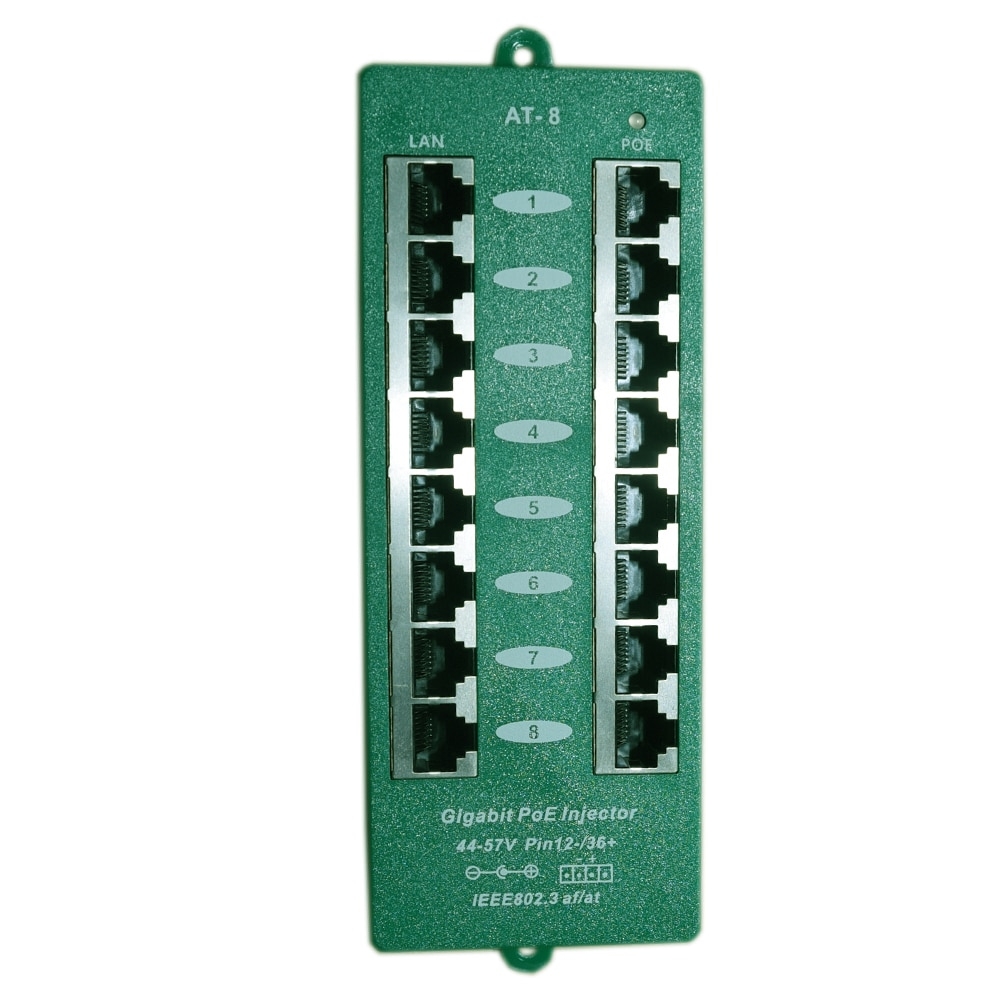

802.3at injector for 8 Gigabit devices (POE-INJ-8-G-Active)

Order code: POE-INJ-8-G-Active
Quick code: #1678

Ideal for IP Cameras, VOIP phone, WiFi Access Points with 802.3af or 802.3at. Up to 25 watts per device from one supply, fanless

Price exc. VAT: Price inc. VAT: For orders (total sum):
30.53£ 36.64£ >0£
29.87£ 35.84£ >300£
29.54£ 35.45£ >1000£


8 Port 802.3af and 802.3at compliant gigabit Mode A Ethernet Injector with no power supply

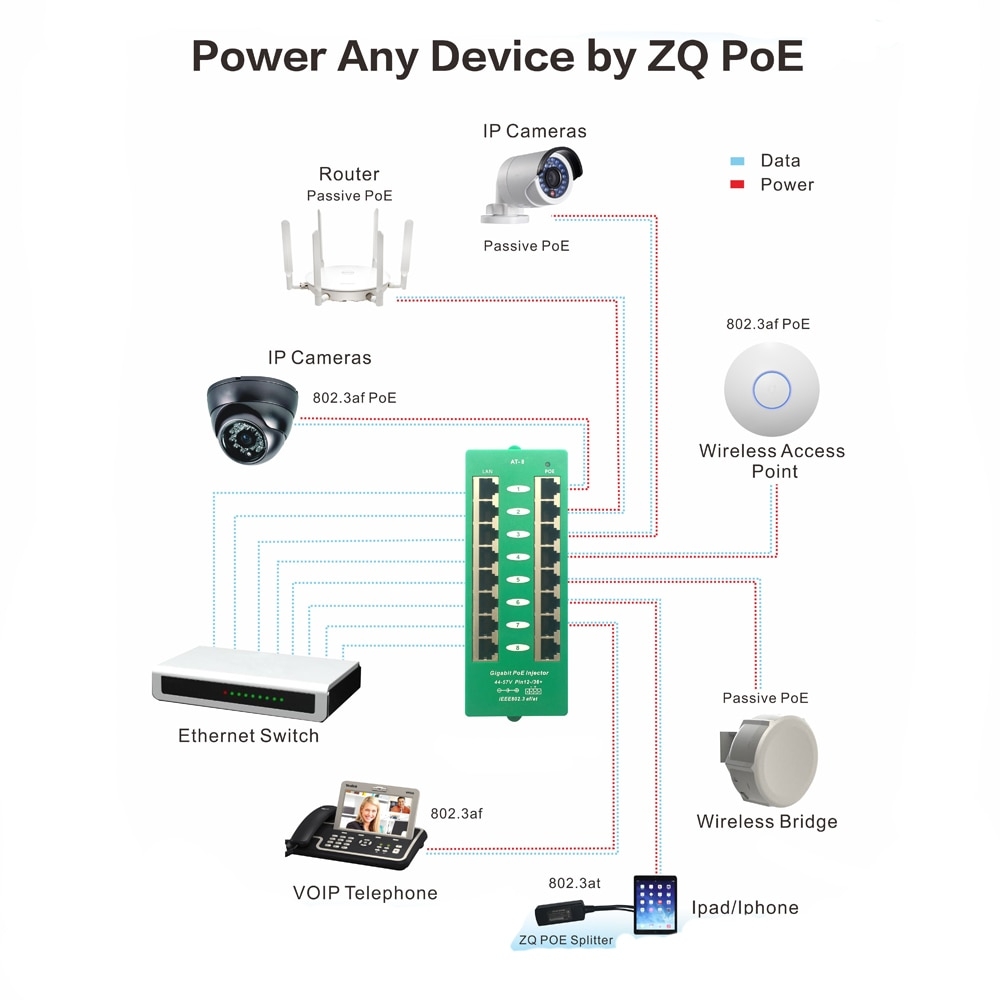

Power an IP camera, desktop phone, WiFi access point, or other low voltage devices through a network data cable using this Power over Ethernet (PoE) injector. The PoE Injector takes power from a DC power source (power supply sold separately) and adds it to your Ethernet data cable (Cat5, Cat5e, Cat6) to your device.

Save big on network upgrades and device installations Power over Ethernet delivers power 328 feet from the PoE Injector, eliminating the expense and hassle of installing AC power near your powered device. With this PoE Injector, you can add power to your data cable for a fraction of the cost of upgrading to a PoE capable network switch.

Active PoE means the right power at the right time An active PoE injector negotiates with the powered device to deliver the voltage needed, so there are no concerns about accidentally burning out lower powered or non-PoE devices. Power is only added to the data cable when an 802.3af or 802.3at device is connected.

Simple and Reliable These Power over Ethernet Injectors are designed for simple installation and long life.

–    no power unless a PoE device is attached
–    8 Shielded RJ-45 LAN
–    8 Shielded RJ-45 LAN+POE
–    all 4 data pairs active for gigabit data rates
–    shared data and power
–    supports 802.3at class 0, 1, 2, 3, 4
–    550 ma current limiter per port per 802.3at specifications
–    No power is supplied to non-PoE devices
–    Same voltage to all ports after negotiation
–    Use with any Ethernet switch – passes all management info transparently
–    Mode A power output via isolated transformer
      - pins 1-2 (-)
      - pins 3-6 (+)


Data + PoE Ports: 8
Data Ports: 8
Data Rate: Gigabit
Dimensions: 18 x 6.2 x 2.41 cm
Max. Amps Per Port: 650 mA
Mount Type: wall
Operating Humidity: 5% to 90%
Operating Temperature Range: -10 - 60C
PoE Method: Active
PoE Mode/Pinout: Mode A (-1,2 +3,6)
PoE Standard: IEEE 802.3at
Power Input: Standard 2.1 - 5.5 mm DC and Phoenix Connector 1840382
Weight: 180 g
