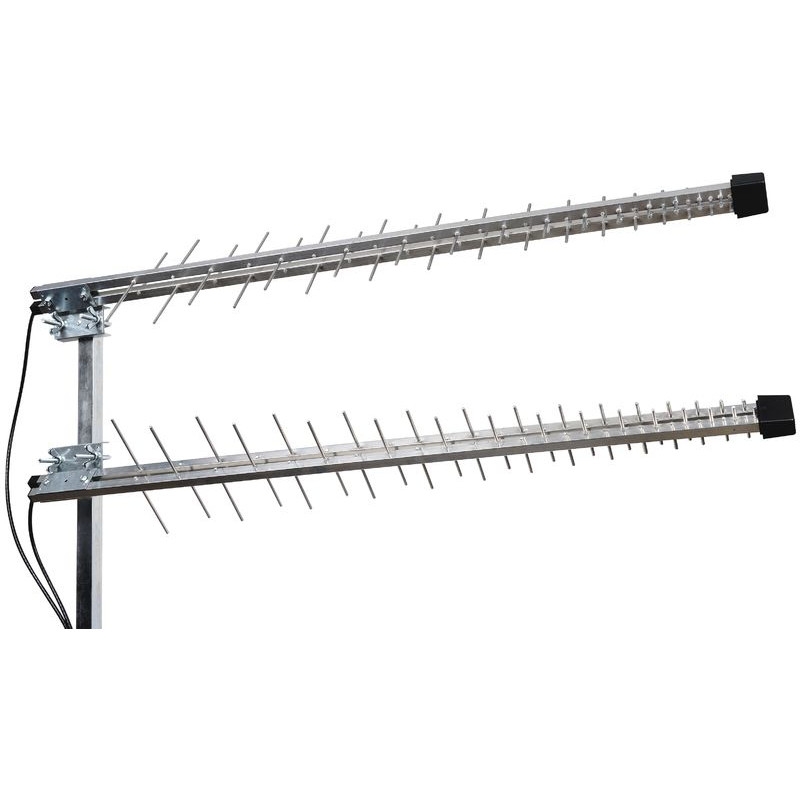

ISKRA U-MIMO 3G 4G LTE High Gain 700-2700MHz Antenna with 7.5m cables, SMA Male Connectors (P-58-L700-7.5)

11 dBi LTE/3G/WiFi (WLAN) antennas, dual polarization. Wtih 7.5m cables included, SMA Male Connectors

Price exc. VAT: Price inc. VAT: For orders (total sum):
51.88£ 62.26£ >0£
51.02£ 61.22£ >300£
50.15£ 60.18£ >1000£
Qty:
In stock



Specification:

Antenna Gain: 9–11 dBi
Cable length: 7.5 m

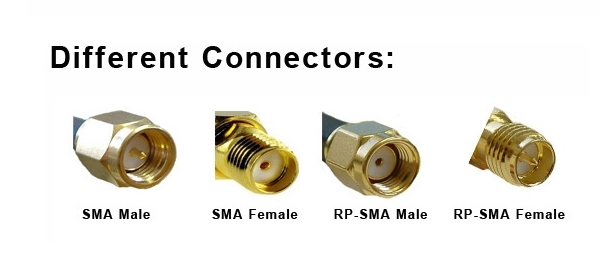

Connector: SMA male
Impedance: 50 oHm
Max. power connection: 50 W
Antenna length: 1070 mm
Number of elements: 58
Polarization: 2 × 45 degrees
Front-back ratio: 23 dB
Beam width H/V: 54/46°
VSWR: <1.6

Frequency ranges:
LTE 700 & 800: 698-862MHz / 9.5 dBi
LTE 1800: 1710-1880MHz / 11 dBi
LTE 2600: 2500-2700MHz / 11 dBi
3G 900: 880-960MHz / 10 dBi
3G 2100: 1920-2170MHz / 11 dBi
Wi-Fi (WLAN): 2401-2495MHz / 11 dBi

Additional product information:

Datasheet
