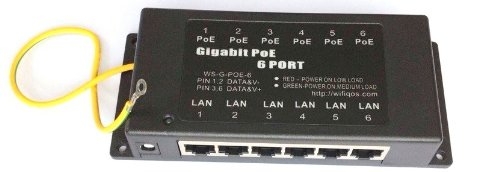

Passive Gigabit PoE Injector/Shielded Panel, 6 port (POE-INJ-6-G)

MPN: GIGABIT-POE-6
Order code: POE-INJ-6-G
Quick code: #712

6 port Gigabit PoE injector panel with metal case, Shielded, 2x input power jacks, max 90W DC power accepted.

Price exc. VAT: Price inc. VAT: For orders (total sum):
18.15£ 21.78£ >0£
17.86£ 21.43£ >300£
17.57£ 21.08£ >1000£
Qty:


Features:

The 6 port Gigabit PoE Panel is used 10/100/1000M Ethernet,The upper
RJ45 sockets is fo “LAN/Switch/PC ” 1/2&3/6&4/5&7/8 are transmitting data.
The RJ45(power+data) socket is to deliver data and power:1/2&3/6&4/5
&7/8 transmitting data,1/2(-)&3/6(+)for power.passive POE iscomposed of 12
set of Rj45 sockets and two 60V DC power jack.Input power requests 90W or
more AC TO Dcpower converter.The input dc hole diameter is 2.1mm and the
other end OD id 5.5mm.
Each socket provides protection against short overflow (current protection
650mA+15%-15%). The sum total output power must be lower than the MAX
input power of AC-DCpower converter. If not, it is necessary to consider taking
higher AC-DC power converter. The The configuration size of panel is 150mm(3.4U) L, 65mm(1.5U) W and 26mm(0.6U) T.

Specification:

Input 100-240V AC 50/60Hz
Output 24-48V 90W (Max)
Data 1/2&3/6&4/5&7/8
Power 3/6+ & 1/2- (48V) or 4/5 + 7/8 -
Data In Connects PC/HUB/Switch
Weight 6 Port 1.2Kg
Dimensions 150mm×65mm×26mm
Case of material metal work material
Ethernet Cable TIA/EIA 568 Cat. 5
Data rate 10/100/1000Mbps
Connector RJ-45
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C~+70°C
Operating Humidity 10%~80%RH
Storage Humidity 5%~90%RH
Certification CE
