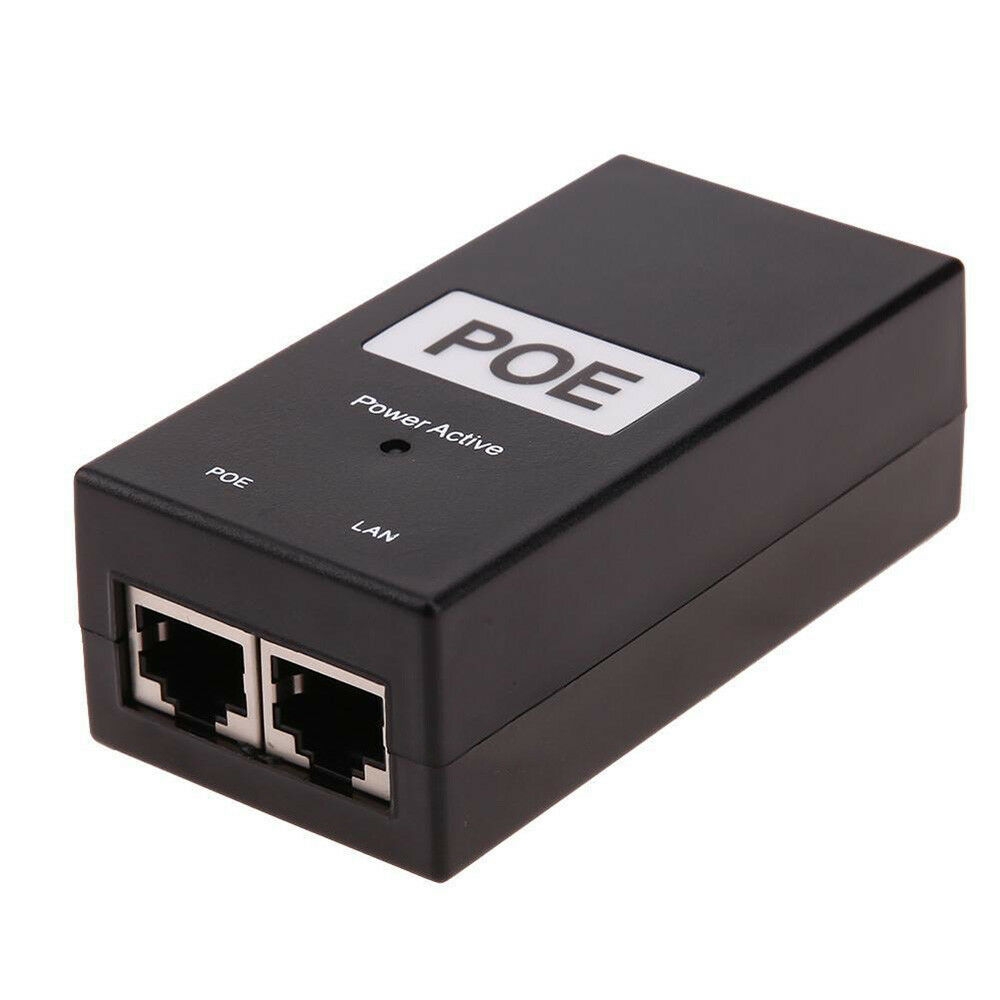

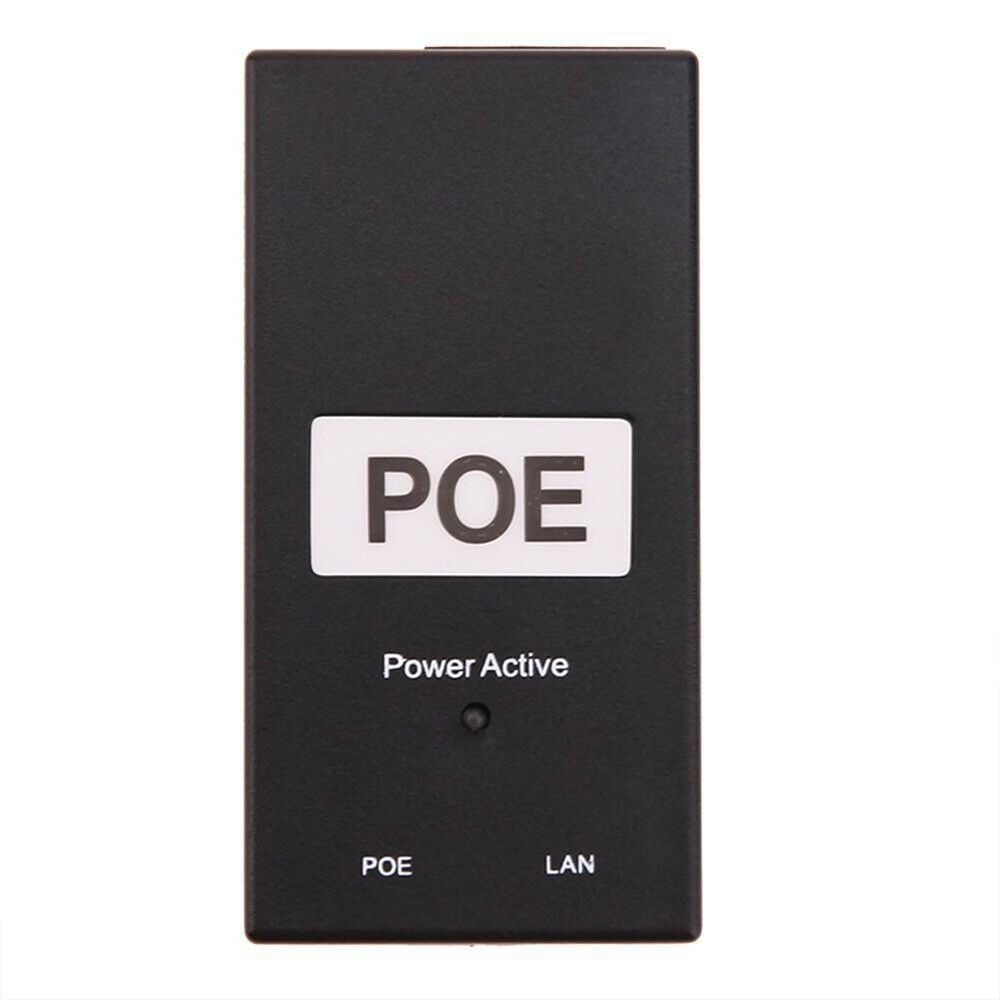

48V 0.5A Gigabit POE Adapter

Order code: POE-48V-24W-Gigabit
Quick code: #977

48V, 24W, 0.5A Gigabit Poe Adapter (POE-48V-24W-Gigabit), works with 802.3af/at or passive 48V POE

Price exc. VAT: Price inc. VAT: For orders (total sum):
5.42£ 6.50£ >0£
5.33£ 6.40£ >300£
5.24£ 6.29£ >1000£
  In stock


Passive 48V PoE power supply, support gigabit ethernet. Adapter is compatible with active 802.11af/at standart or passive 48V POE.
Fits very well for supply device which support both or only passive PoE supply like UBNT, RouterBoard, Cameras..
European type power cable included.


Electrical specifications

Input voltage: 100 – 240 VAC, 50/60 Hz
Output voltage: 48 VDC +/- 5%
Output power: 24 W
Data rate: 1000 Mbps
Protection: Short circuit, overvoltage, overcurrent

Physical specifications

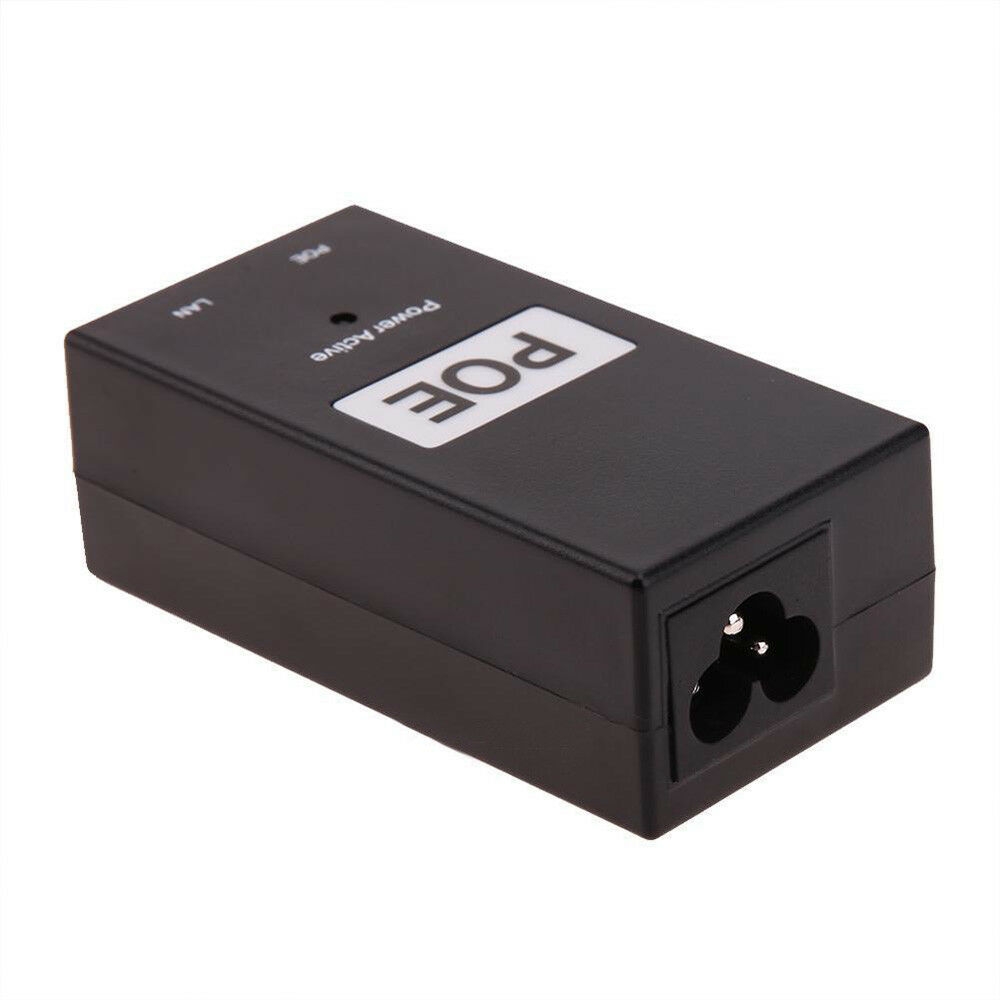

Input jack: IEC320 C6
Output jack: RJ-45
Data jack: RJ-45
Dimensions: 115 x 50 x 33 mm
Weight: 150 g
Operating temperature: -10 to +50 C
UTP/FTP cable length: 100 m total (from switch to the device)
Power cable: European type power cable included
