CC&C WA2204A + AP-ROUTER NG5 Software License

CC&C WA2204A + AP-ROUTER NG5 Software License

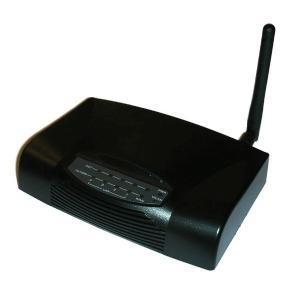

(CC&C) 802.11g/b AP/Bridge/Client/Router, 4x LAN, High Power , RTL8186 Chip W/ R-SMA connector

CC&C WA2204A + AP-ROUTER NG5 Software License
Price: Price inc VAT: For orders
(total sum):
10.86£ 13.03£ <300.00£
10.86£ 13.03£ >300.00£
10.86£ 13.03£ >1000.00£
10.86£ 13.03£ >3000.00£
10.86£ 13.03£ >7500.00£
Quantity:
In stock


Features

1. Realtek RTL8186 Chip
2. High Power unit with TX power control setting (up to 26dBm in 802.11b mode, up to 20dBm in 802.11g mode).
3. Working Modes: AP/Bridge/Client/Router/Switch
4. Bandwidth control inRouter mode( IP, MAC and Interface ) with groups option
5. Signal meter function
6. DHCP client/server
7. R-SMA connector for outdoor antenna
8. 4xLAN ports

Specifications

UNIT SPECIFICATIONS:
--------------------
Standard 802.11b/g(Wireless), 802.3(10BaseT), 802.3u(100BaseT)
Data Transfer Rate 54Mbps(Wireless), 100Mbps(Ethernet)
Modulation Method CCK(802.11b), OFDM(802.11g)
Frequency Band 2.4GHz V 2.484GHz ISM Band, DSSS
Adjustable RF Output Power: up to 400mW (802.11b), 100mw(802.11g)
Receiver Sensitivity 802.11b -80 dBm@8%, 802.11g -68 dBm@8%
R-SMA connector for External Antenna
LED Power, Active (WLAN), Act/Link (Ethernet)
Security 64 bit/ 128 bit WEP, WPA, WPA2, port filtering, IP filtering, MAC filtering, port forwarding and DMZ hosting
LAN interface One 10/100BaseT with RJ45 connector (WAN)
Four 10/100BaseT with RJ45 connectors (LAN)
Power Consumption 7.5V DC Power Adapter
Operating Temperature 0 ~ 50oC ambient temperature
Storage Temperature -20 ~ 70oC ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Dimension 137 x 96 x 35 mm

NG5 SOFTWARE FEATURES:
----------------------
--> MESH (OLSR) support: http://www.olsr.org
--> SSH Client support
--> Easy personal script /etc/script.sh file editing via web interface
--> Region Domain selection via WEB (11 or 14 channels)
--> Easy /etc/ethers file editing via web interface
--> Tx power control
--> Iptraf Utility
--> Tcpdump Utility
--> Remote access via SSH2
--> Cron daemon
--> Prende o MAC ao IP e fornece ip estaticamente baseado no MAC
--> Freedom to edit your own scripts
--> Bandwidth control ( IP, MAC and Interface ) with groups option
--> Ping based Watchdog
--> Block Relay
--> PPPoE Relay
--> DHCP Relay
--> Config Wizard
--> Auto Discovery Tool
--> 3 main operational modes: WISP, Gateway and Bridge
--> 802.1x, WPA and Radius
--> Mac, ip, ports filter
--> DMZ Host
--> PPPoE-Client
--> PPTP Protocol
--> DDNS Protocol
--> IAPP Protocol
--> Hide SSID
--> WEB Interface
--> Signal meter
--> AP, Client, WDS+AP, WDS and Ad Hoc modes
--> Site Survey
--> DHCP server
--> DHCP Client
--> Up to 5 IP Alias via WEB interface
--> uPNP
--> Spanning Tree Protocol
--> WAN Management protection
--> MAC clone ( for just one machine )
--> System commands via WEB interface
--> Log system ( local and remote )

Attachments

Datasheet - Datasheet_WA-2204A.pdf
Declaration of Conformity - CE declaration_for_WA2204A.pdf
Manual - WA2204A_manual.pdf
