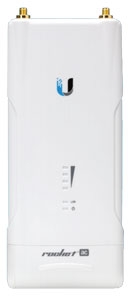

Ubiquiti Rocket AC R5AC-PTP airPrism

Ubiquiti Rocket AC R5AC-PTP airPrism

UBIQUITI Rocket 5AC PTP (R5AC-PTP), Powerful airMAX AC Bridge with AirPRISM technology, 27 dBm, Gigabit LAN, 2x RSMA, 5GHz 2X2 802.11ac

Ubiquiti Rocket AC R5AC-PTP airPrism
Price: Price inc VAT: For orders
(total sum):
166.11£ 199.33£ <300.00£
163.74£ 196.49£ >300.00£
161.34£ 193.61£ >1000.00£
160.15£ 192.18£ >3000.00£
157.75£ 189.30£ >7500.00£
Quantity:
In stock


Features

Featuring proprietary AirMAX AC technology, the R5AC-PTP is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. The new ac technology offers improved latency, noise immunity, scalability and significantly increases throughput performance. To enhance airMAX ac performance, Ubiquiti Networks introduced their patented airPrism™ technology featured on the R5AC-PTP., which improves SNR, removes interference, and facilitates AP co-location..

The R5AC-PTP radio can be paired with a RocketDish antennas: RD-5G31-AC, RD-5G30 and RD-5G34 to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul.

Specifications

Operating Frequency Worldwide: 5150 - 5875 MHz
Output Power 27 dBm
Dimensions 162 x 84 x 37 mm (6.38 x 3.31 x 1.46")
Weight 250 g (8.81 oz)
Enclosure Characteristics Outdoor UV Stabilized Plastic
Processor MIPS 74Kc
Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
Networking Interface (1) 10/100/1000 Mbps
RF Connections (2) RP-SMA (Waterproof)
LEDs Power, Ethernet, (4) Signal Strength
Max. Power Consumption 8.5W
Power Supply 24V, 0.5A Gigabit PoE Adapter
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
ESD/EMP Protection ± 24KV Air / Contact
Operating Temperature -40 to 80° C (-40 to 176° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4

Attachments

Datasheet - Rocket5ac_DS.pdf
Quick Start Guide - Rocket_R5AC-PTP_QSG.pdf
