Ubiquiti PowerBridge M10

Ubiquiti PowerBridge M10

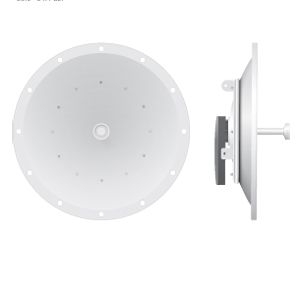

Ubiquiti AirMax PowerBridge M10, 10.5GHz High Capacity MIMO Bridge, 0.6m 34dBi Dish

Ubiquiti PowerBridge M10
Price: Price inc VAT: For orders
(total sum):
388.44£ 466.13£ <300.00£
370.51£ 444.61£ >300.00£
357.36£ 428.83£ >1000.00£
334.65£ 401.58£ >3000.00£
310.74£ 372.89£ >7500.00£
Quantity:
In stock


Features

PowerBridge M10 is a rugged, hi-power, 2x2 MIMO radio with enhanced receiver performance using the super-high 10 GHz radio frequency. It features incredible range performance (20+km) and breakthrough speed (150+Mbps real TCP/IP). The PowerBridge M10 radio pairs seamlessly with the included Carrier Class PowerBridge M10 dish antenna, to create powerful PtP bridging applications.

Robust, Efficient Mechanical Design
PowerBridge packs revolutionary performance in a compact and weatherproof design.

Advanced Antenna Technology
Super-Efficient Dual-Polarity Array Panel Design provides optimum MIMO performance at long distances.

Breakthrough Wireless Performance, AirMax and AirControl Support
150+Mbps of real outdoor throughput and up to 20km+ range. PowerBridge M products utilize Ubiquiti's revolutionary AirMax TDMA protocol enabling scalable, carrier-class PtMP network performance. Additionally, AirControl application allows operators to centrally manage 100's of devices.

Specifications

Frequency Range 10.322 GHz - 10.574 GHz
Gain 33.0 - 34.4 dBi
HPOL Beamwidth 3.0 - 3.7° over band
VPOL Beamwidth 3.0 - 3.7° over band
F/B Ratio 33 dB
Max VSWR < 1.4:1
Dimensions 2 ft / 648 mm
Weight 9.8 kg
Wind Survivability 120 mph
Wind Loading 113 lb @ 100 mph
Polarization Dual Linear
Cross-pol Isolation 35 dB min
ETSI Specification EN 302 326 DN2
Mounting Universal pole mount, PowerBridge M10 bracket
