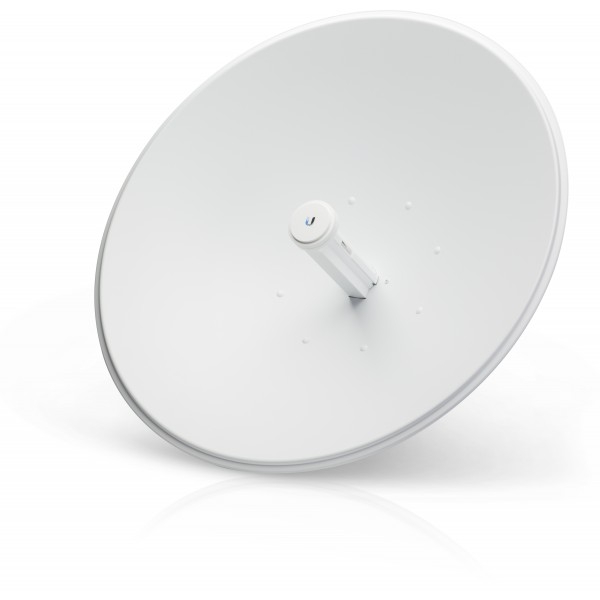

Ubiquiti Powerbeam PBE-5AC-620

Ubiquiti Powerbeam PBE-5AC-620

UBIQUITI PowerBeam PBE-5AC-620, AC, 802.11ac 29dbi gain antenna, 620mm, 450Mbps, Hi-performance MIMO Bridge device CPE

Ubiquiti Powerbeam PBE-5AC-620
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
166.11£ 199.33£ <300.00£
163.74£ 196.49£ >300.00£
161.34£ 193.61£ >1000.00£
160.15£ 192.18£ >3000.00£
157.75£ 189.30£ >7500.00£
Quantity:
In stock


Features

The Ubiquiti PowerBeam PBE-5AC-620 directs RF energy in a tighter beamwidth. With the focus in one direction, the PowerBeam ac blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.

PowerBeam ac PBE-5AC-620 Key Features:

Uniform Beamwidth Maximizes Noise Immunity
Innovative Mechanical Design
High-Speed Processor for Superior Performance

Ubiquiti’s InnerFeedTM technology integrates the radio into the feedhorn of an antenna, so there is no need for a cable. This improves performance because it eliminates cable losses. Featuring high performance and innovative mechanical design, the PowerBeam ac is versatile and cost-effective to deploy.

Specifications

Processor Specs Atheros MIPS 74Kc, 720 MHz
Memory 128 MB DDR2, 8 MB Flash
Networking Interface (1) 10/100/1000 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Dimensions 620 x 620 x 386 mm (24.41 x 24.41 x 15.2")
Weight 6.4 kg (14.11 lb)
Power Supply 24V, 0.5A Gigabit PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 8.5W
Antenna Gain 29 dBi
Wind Loading 872 N @200 km/h (196 lbf @125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Non-Condensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
5150 - 5875 MHz
5725 - 5850 MHz
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz

Attachments

Datasheet - PowerBeam5ac_DS.pdf
Quick Start Guide - PowerBeam_PBE-5AC-620_QSG.pdf
