UBIQUITI LiteBeam M5 23dbi HP Airmax

UBIQUITI LiteBeam M5 23dbi HP Airmax

UBIQUITI LiteBeam M5 23dbi AirMAX - outdoor 5 GHz, 1x LAN, incl. 23 dBi antenna, Hig Power, POE 24V

UBIQUITI LiteBeam M5 23dbi HP Airmax
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
37.06£ 44.47£ <300.00£
36.46£ 43.75£ >300.00£
35.85£ 43.02£ >1000.00£
35.25£ 42.30£ >3000.00£
34.66£ 41.59£ >7500.00£
Quantity:
In stock


Features

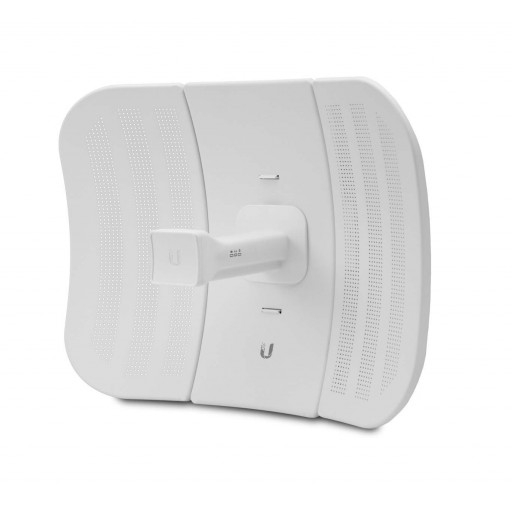

LiteBeam (LBE-M5-23) is a powerful outdoor unit consists of 23 dBi antenna for 5 GHz band. Ideal choice for PtP connection and PtMP clients.
LiteBeam is the latest evolution of a lightweight and compact outdoor wireless broadband CPE from Ubiquiti Networks. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.
The LBE-M5-23 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.
The LBE-M5-23 also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options.
The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
A lightweight form factor contained within ultra-compact packaging.

Specifications

Dimensions: 362 x 267 x 184 mm (14.25 x 10.51 x 7.24")
Weight: 750 g (24.11 oz)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 176.86 N @ 200 km/h (39.76 lbf @ 125 mph)
Enclosure Characteristics: Outdoor UV Stabilized Plastic
Mounting Kit: Pole Mounting Kit (Included)
Max. Power Consumption: 4W
Power Supply: 24V, 0.2A PoE Adapter (Included)
Power Method: Passive Power over Ethernet (Pairs 4, 5+; 7, 8 Return)
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibration: ETSI300-019-1.4
ETSI Specification: EN 302 326 DN2
Processor Specs: MIPS 74K
Memory: 64 MB
Networking Interface: (1) 10/100 Ethernet Port
Wireless Approvals: FCC, IC, CE
RoHS Compliance: Yes

Attachments

Datasheet - LiteBeam_LBE-M5-23_DS.pdf
Quick Start Guide - LiteBeam_LBE-M5-23_QSG.pdf
