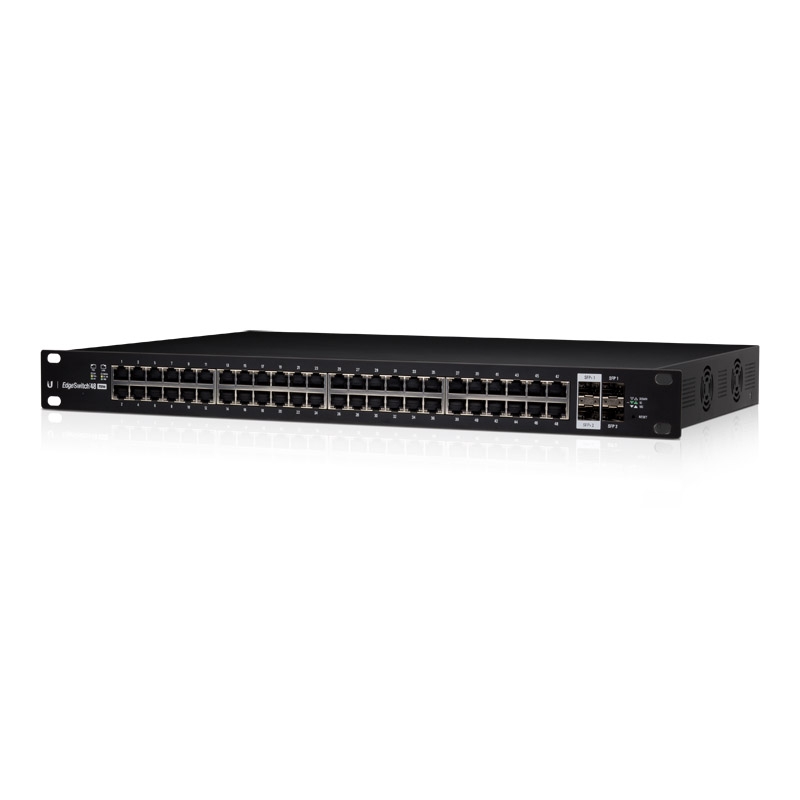

UBIQUITI EdgeSwitch 48 750W

UBIQUITI EdgeSwitch 48 750W

UBIQUITI EdgeSwitch 48 750W, ES-48-750W , 2 x SFP ports, 2x SFP+ ports, 48 x Gigabit POE LAN ports, Supports POE+ IEEE 802.3at/af and 24V Passive PoE

UBIQUITI EdgeSwitch 48 750W
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
735.03£ 882.04£ <300.00£
729.07£ 874.88£ >300.00£
723.07£ 867.68£ >1000.00£
717.11£ 860.53£ >3000.00£
711.14£ 853.37£ >7500.00£
Quantity:
In stock


Features

Ubiquiti Networks ES-48-750W EDGE SWITCH 48PORT 750W EdgeSwitch • (48) Gigabit RJ45 ports • (2) SFP+ ports • (2) SFP ports • Non-blocking throughput: 70 Gbps • Switching capacity: 140 Gbps • Forwarding rate: 104.16 Mpps • Maximum power consumption: 750W • Supports POE+ IEEE 802.3at/af and 24V Passive PoE • Rackmountable

Specifications

Dimensions 485.04 × 44.45 × 285.6 mm
Weight 5.3kg
Total Non-Blocking Throughput 70Gbps
Max. Power Consumption 750W
Power Method 100-240VAC/50-60Hz, Universal Input
Power Supply AC/DC, Internal, 250W DC
Networking Interfaces 48x 10/100/1000Mbps RJ45 Ethernet Ports
2x 1Gbps SFP Ethernet Ports
2x 1/10Gbps SFP+ Ethernet Ports
Management Interface Ethernet In/Out of Band
Certifications CE, FCC, IC
Rackmount yes, 1U
ESD/EMP Protection Air: ±24kV, Contact: ±24kV
Operating Temperature -5 to 40°C
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1,2+, 3, 6-)
24VDC Passive PoE (Pins 4,5+,7,8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50-57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Attachments

Datasheet - EdgeSwitch_DS.pdf
Edge Switch 48 500w Quick Start Guide - EdgeSwitch_ES-48_QSG.pdf
