UBIQUITI NETWORKS Products >

UBIQUITI Unifi Switch US-24-500w

UBIQUITI Unifi Switch US-24-500w

UBIQUITI Unifi Switch 24ports 500W, US-24-500W , 2x SFP ports, 24x Gigabit POE LAN ports, Supports POE+ IEEE 802.3at/af and 24V Passive PoE

UBIQUITI Unifi Switch US-24-500w
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
427.90£ 513.48£ <300.00£
425.48£ 510.58£ >300.00£
423.10£ 507.72£ >1000.00£
420.72£ 504.86£ >3000.00£
418.31£ 501.97£ >7500.00£
Quantity:
In stock


Features

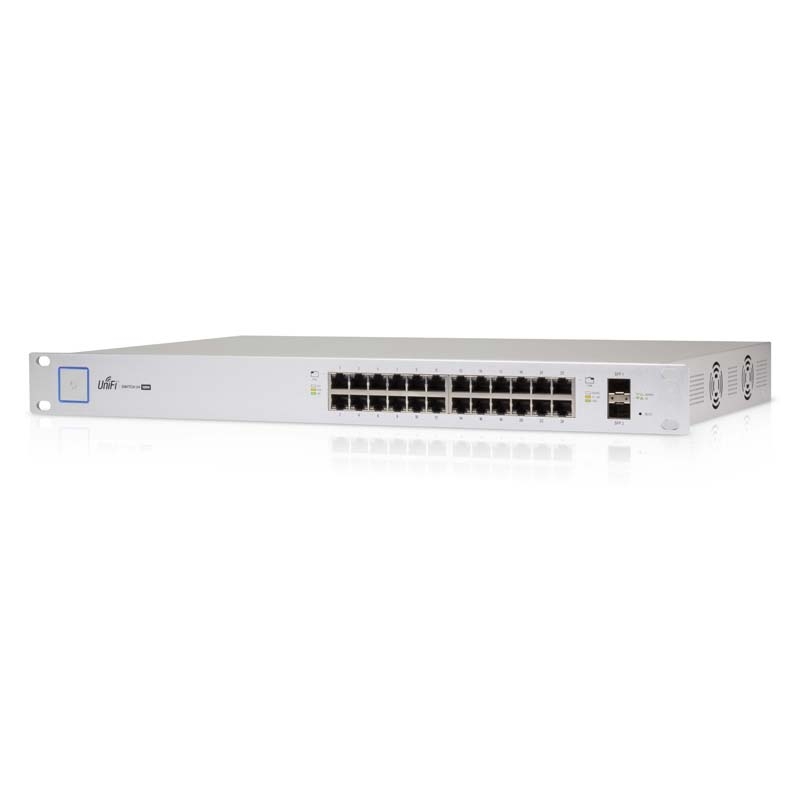

UniFi Switch US-24-500W is 24-Port, Managed PoE+ Gigabit switch with 500W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.


Features:
• (24) Gigabit RJ45 ports
• (2) SFP ports
• (1) Serial console port (reserved for future use)
• Total, non-blocking throughput: 26Gbps
• Switching capacity: 52Gbps
• Forwarding rate: 38.69Mpps
• Maximum power consumption: 500W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable
• Max power consumption: 500W

Specifications

Dimensions 485.04 x 44.45 x 285.6 mm (19.1 x 1.75 x 11.24")
Weight 3.7 kg (8.16 lb)
Total Non-Blocking Throughput 26 Gbps
Switching Capacity 52 Gbps
Forwarding Rate 38.69 Mpps
Max. Power Consumption US-24-500W - 500W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply: AC/DC, Internal, 500W DC
LEDs Per Port
Serial Console Port - N/A
RJ45 Data Ports - PoE, Speed/Link/Activity
SFP Data Ports - Speed/Link/Activity
Networking Interfaces (24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port, Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Attachments

Datasheet - UniFi_Switch_DS.pdf
Quick Start Guide - unifi_switch_us-24_qsg.pdf
