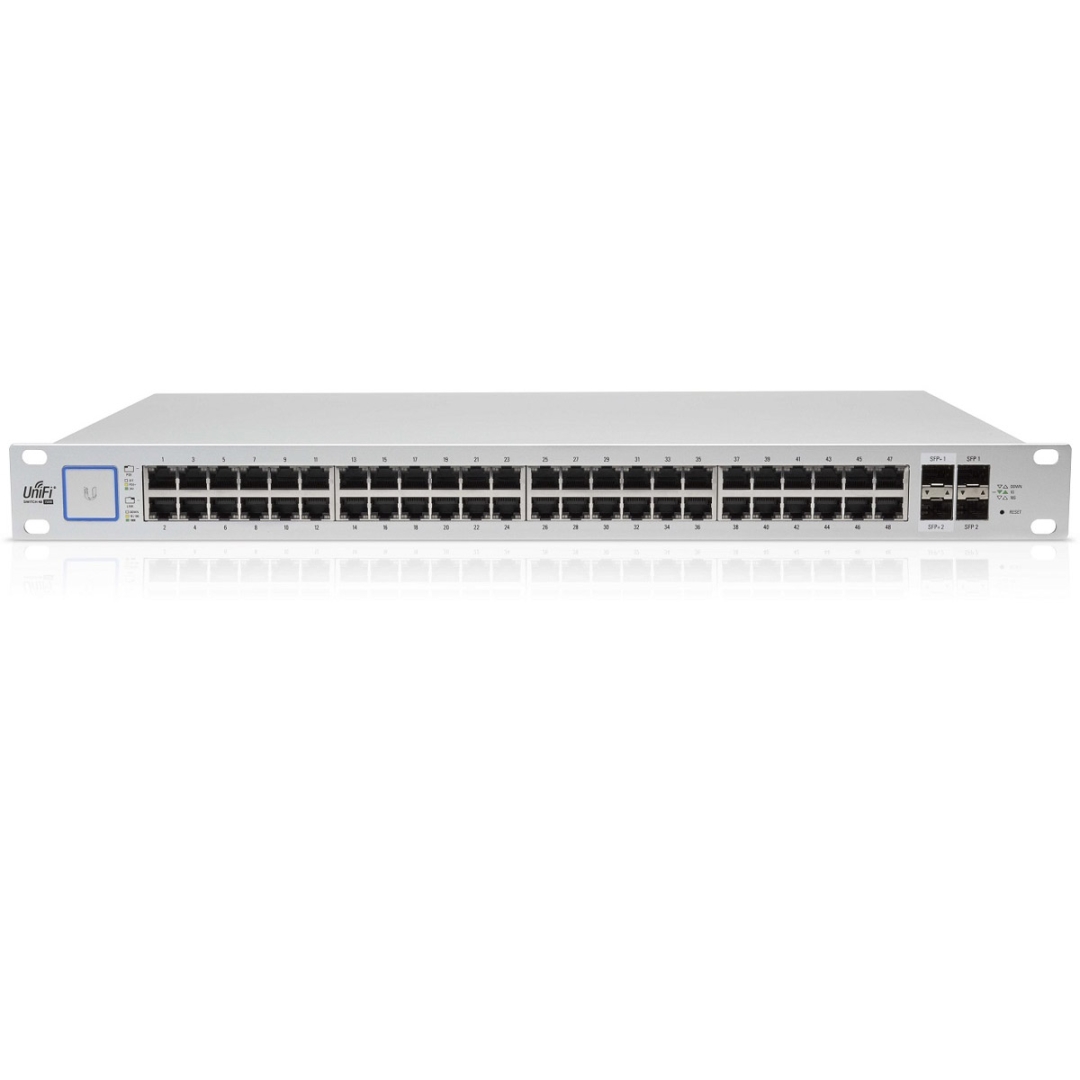

UBIQUITI Unifi Switch US-48-750W

UBIQUITI Unifi Switch US-48-750W

UBIQUITI Unifi Switch 48ports 750W, US-48-750W , 2 x SFP ports, 2x SFP+ ports, 48 x Gigabit POE LAN ports, Supports POE+ IEEE 802.3at/af and 24V Passive PoE

UBIQUITI Unifi Switch US-48-750W
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
773.27£ 927.92£ <300.00£
767.33£ 920.80£ >300.00£
761.31£ 913.57£ >1000.00£
755.36£ 906.43£ >3000.00£
749.39£ 899.27£ >7500.00£
Quantity:
Out of stock


Features

The UniFi Switch US-48-750W is 48-Port, Managed PoE+ Gigabit switch with 750W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+ and SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The UniFi Switch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.

Model: US-48-750W
• (48) Gigabit RJ45 ports
• (2) SFP+ ports
• (2) SFP ports
• (1) Serial console port (reserved for future use)
• Non-blocking throughput: 70 Gbps
• Switching capacity: 140 Gbps
• Forwarding rate: 104.16 Mpps
• Maximum power consumption: 750W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Specifications

Dimensions 485.04 x 44.45 x 347.6 mm (19.1 x 1.75 x 13.69")
Weight 5.3 kg (11.68 lb)
Total Non-Blocking Throughput 70 Gbps
Switching Capacity 140 Gbps
Forwarding Rate 104.16 Mpps
Max. Power Consumption 750W
Power Method 100-240VAC/50-60 Hz, Universal Input
Power Supply AC/DC, Internal, 750W DC
LEDs Per Port
Serial Console Port
RJ45 Data Ports
SFP+/SFP Data Ports
N/A
PoE, Speed/Link/Activity
Speed/Link/Activity
Networking Interfaces (48) 10/100/1000 Mbps RJ45 Ethernet Ports
(2) 1/10 Gbps SFP+ Ethernet Ports
(2) 1 Gbps SFP Ethernet Ports
Management Interface (1) RJ45 Serial Port (Reserved for Future Use), Ethernet In/Out Band
Certifications CE, FCC, IC
Rackmount Yes, 1U High
ESD/EMP Protection Air: ±24 kV, Contact: ±24 kV
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 5 to 95% Noncondensing
Shock and Vibration ETSI300-019-1.4 Standard
PoE Per Port
PoE Interfaces POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
24VDC Passive PoE (Pins 4, 5+; 7, 8-)
Max. PoE+ Wattage per Port by PSE 34.2W
Voltage Range 802.3at Mode 50–57V
Max. Passive PoE Wattage per Port 17W
24V Passive PoE Voltage Range 20-27V

Attachments

Datasheet - UniFi_Switch_DS.pdf
Quick Start Guide - UniFi_Switch_US-48_QSG.pdf
