UBIQUITI UniFi AC LR Long Range 5pack UAP-AC-LR-5

UBIQUITI UniFi AC LR Long Range 5pack UAP-AC-LR-5

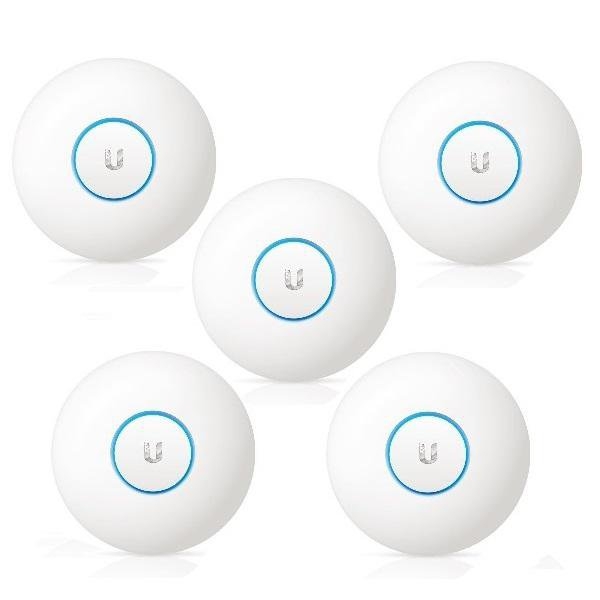

UBIQUITI UniFi AC Long Range 5-pack, UAP-AC-LR, 1317 Mbps AP/Hotspot 2,4/5 GHz, 802.11ac, MIMO 3×3 - indoor, 5 units in one box, POE Adapters NOT Included in Package!

UBIQUITI UniFi AC LR Long Range 5pack UAP-AC-LR-5
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
371.70£ 446.04£ <300.00£
369.30£ 443.16£ >300.00£
366.92£ 440.30£ >1000.00£
364.52£ 437.42£ >3000.00£
363.34£ 436.01£ >7500.00£
Quantity:
In stock


Features

5pcs of UAP-AC-LR devices in one box, 5-pack. POE Adapters NOT Included in Package and needs to be ordered separate if needed - http://www.wifi-stock.com/details/ubiquiti_poe-24-12w-gigabit.html

The UniFi AC LR AP features the latest Wi-Fi 802.11ac technology in a refined industrial design and is ideal for long-range deployment of high-performance wireless networks.
Dual-Radio Performance, Gigabit Speeds

The UniFi AC Long Range delivers 5x the performance of the first-generation UniFi AP while still maintaining Ubiquiti’s disruptive pricing strategy.

The UniFi AC Long Range can work with wireless data transfer up to 1317 Mbps, standard 802.11a/b/g/n/ac is supported, UniFi uses MIMO 3×3 antennas system 3dBi. The signal range is up to 183 m.

Innovative Antenna Design

The innovative antenna design provides a long-range, symmetrical-link coverage area, and the antenna gain of the UniFi AC LR AP performs better than one-way, high transmit power does for connecting distant clients.

Scalable Enterprise Wi-Fi Management

The UniFi Controller v4 software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller. Remotely access the UniFi Controller to upgrade deployed UniFi APs while in the field.

Specifications

Dimensions: 175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight: 240 g (8.5 oz)
Weight With Mounting Kits: 315 g (11.1 oz)
Networking Interface: (1) 10/100/1000 Ethernet Port
Buttons: Reset
Antennas: (1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Wi-Fi Standards: 802.11 a/b/g/n/ac
Power Method: Passive Power over Ethernet (24V), (Pairs 4, 5+; 7, 8 Return)
Power Supply: 24V, 0.5A Gigabit PoE Adapter*
Maximum Power Consumption: 6.5W
Maximum TX Power: 2.4 GHz, 24 dBm. 5 GHz, 22 dBm.
BSSID: Up to Four per Radio
Power Save: Supported
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Certifications: CE, FCC, IC
Mounting: Wall/Ceiling (Kits Included)
Operating Temperature: -10 to 70° C (14 to 158° F)
Operating Humidity: 5 to 95% Noncondensing

VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 200+

Standard Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23, HT 20/40)
802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

IMPORTANT NOTICE: POE Adapters NOT Included in 5-Package.

Attachments

Datasheet - UniFi_AC_APs_DS.pdf
Quick Start Guide - UniFi_AP-AC-LR_QSG.pdf
