UBIQUITI Powerbeam PBE-5AC-400 25dbi Airmax

UBIQUITI Powerbeam PBE-5AC-400 25dbi Airmax

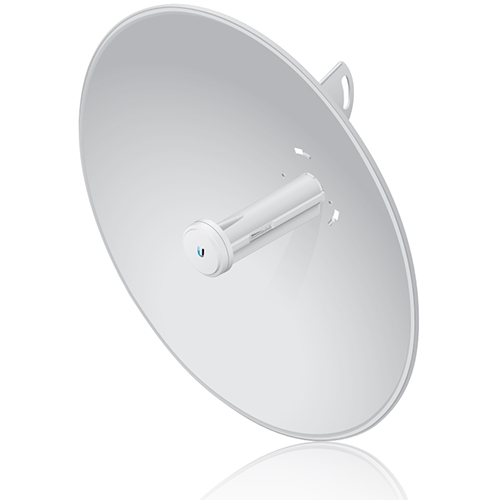

Ubiquiti PowerBeam PBE-5AC-400 25dbi Airmax - 5 GHz, 25dbi 802.11ac Hi-performance MIMO Bridging Device

UBIQUITI Powerbeam PBE-5AC-400 25dbi Airmax
Price: Price inc VAT: For orders
(total sum):
82.47£ 98.96£ <300.00£
81.28£ 97.54£ >300.00£
80.09£ 96.11£ >1000.00£
78.89£ 94.67£ >3000.00£
77.68£ 93.22£ >7500.00£
Quantity:
In stock


Features

PowerBeam (PBE-5AC-400) is powerfull all-in-one outdoor unit including 25 dBi 2x2 MIMO antenna for 5GHz band.

The form factor of the PowerBeam ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Since AirOs v.7.1 contains Real-Time Reporting. The main tab displays Persistent RF Error Vector Magnitude (EVM) constellation diagrams, Carrier to Interference-plus-Noise Ratio (CINR) histograms and Signal-to-Noise Ratio (SNR) time series plots.

New technology InnerFeed integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

PowerBeam ac is ideal for CPE deployments requiring maximum performance.

Specifications

Dimensions: 420 x 420 x 275 mm (16.54 x 16.54 x 10.83")
Weight (Mount Included): 1.753 kg (4.789 lb)
Operating Frequency: Worldwide: 5150 - 5875 MHz, USA: 5725 - 5850 MHz
Gain: 25 dBi
Networking Interface: (1) 10/100/1000 Ethernet Port
Enclosure: Outdoor UV Stabilized Plastic
Max. Power Consumption: 8W
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Survivability: 200 km/h (125 mph)
Wind Loading: 342.5 N @ 200 km/h (77 lbf @ 125 mph)
Certifications: CE, FCC, IC
Mounting: Pole Mounting Kit Included
Operating Temperature: -40 to 70° C (-40 to 158° F)
Operating Humidity: 5 to 95% Noncondensing
Shock and Vibrations: ETSI300-019-1.4

Attachments

Datasheet - PowerBeam5ac_DS.pdf
Quick Start Guide - PowerBeam_PBE-5AC-400_QSG.pdf
