UBIQUITI Powerbeam PBE-5AC-300 22dbi Airmax

UBIQUITI Powerbeam PBE-5AC-300 22dbi Airmax

Ubiquiti PowerBeam PBE-5AC-300 22dbi Airmax - 5 GHz, 22dbi 802.11ac Hi-performance MIMO Bridging Device

UBIQUITI Powerbeam PBE-5AC-300 22dbi Airmax
Price: Price inc VAT: For orders
(total sum):
77.68£ 93.22£ <300.00£
76.49£ 91.79£ >300.00£
75.29£ 90.35£ >1000.00£
74.10£ 88.92£ >3000.00£
71.73£ 86.08£ >7500.00£
Quantity:
In stock


Features

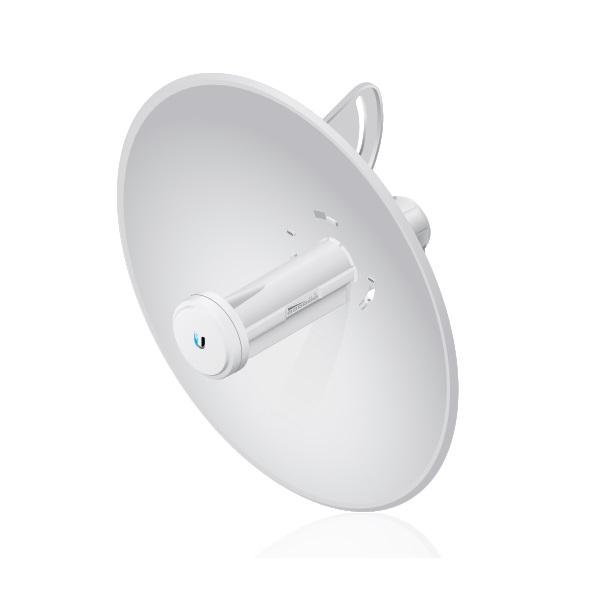

PowerBeam (PBE-5AC-300) is powerfull all-in-one outdoor unit including 22 dBi 2x2 MIMO antenna for 5GHz band.

The form factor of the PowerBeam ac features the highest gain for its size. The PowerBeam ac’s excellent beam directivity provides the best performance in high-noise environments.

The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Since AirOs v.7.1 contains Real-Time Reporting. The main tab displays Persistent RF Error Vector Magnitude (EVM) constellation diagrams, Carrier to Interference-plus-Noise Ratio (CINR) histograms and Signal-to-Noise Ratio (SNR) time series plots.

New technology InnerFeed integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

PowerBeam ac is ideal for CPE deployments requiring maximum performance.

Specifications

Frequence (GHz) 5
Transmission speed max (Mbps) 450
Standards 802.11ac
TX Power regulation ano
Max. output power (dBm) 25
Guaranteed lifetime (h) 8000
Sensitivity (dBm) -96
Modulation OFDM, QAM
Encryption WPA-AES, WPA2-AES
LAN port 1x RJ45 10/100/1000 Mbps
Default IP 192.168.1.20
Default name ubnt
Default password ubnt
Power supply (V) 24V, 0.5A GigE PoE
Mounting kit for mast
Interface LAN, WiFI
Consuption (W) 5,5
Gain (dBi) 22
Polarization Horizontal and vertical
SWR <1,5
Procesor Atheros MIPS 74KC, 560 MHz
RAM (MB) 64
Weight (kg) 1,203
OS AirOS VII
Height (mm) 325
Width (mm) 325
Depth (mm) 256
Powering min (PoE) (V) 20
Powering max (PoE) (V) 26
Min. operating temperature (°C) -40
Max. operating temperature (°C) 70

Attachments

Datasheet - PowerBeam5ac_DS.pdf
Quick Start Guide - PowerBeam_PBE-5AC-300_QSG.pdf
