UBIQUITI NETWORKS mFi Products >

Ubiquiti mPort Serial

Ubiquiti mPort Serial

Ubiquiti mPort Serial, 1 x DB9 Serial Port, 1 x Terminal Block Serial Port, 1 x Lan, 802.11b/g/n

Ubiquiti mPort Serial

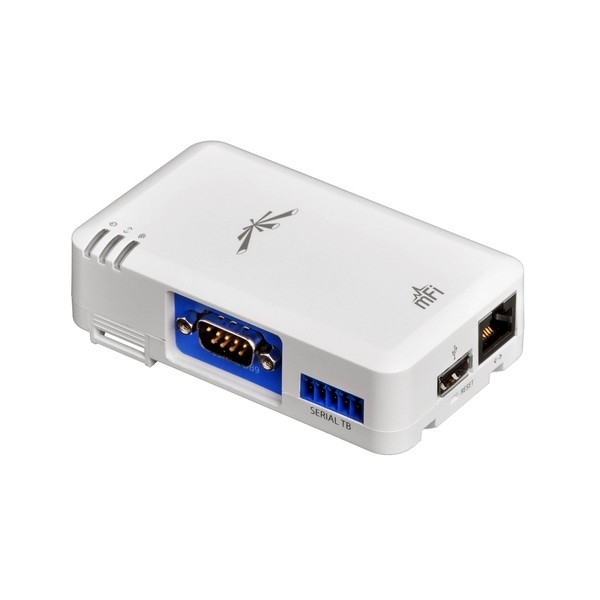

Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
66.00£ 79.20£ <300.00£
65.00£ 78.00£ >300.00£
64.00£ 76.80£ >1000.00£
63.00£ 75.60£ >3000.00£
62.00£ 74.40£ >7500.00£
Quantity:
In stock


Features

mPort Serial features RS232 serial connectivity through a standard DB9 serial port.
Once a machine is connected through the serial interface, the mPort Serial can attach to the IP network using built-in Wi-Fi or Ethernet.
From there, a terminal screen can be launched through the mFi controller software to control the connected machine.
The mPort Serial also features an external antenna connector to support longer range industrial applications.

mFi™ is a Machine-to-Machine management system from Ubiquiti Networks, Inc. The mFi hardware can be managed and monitored from the mFi Controller software. The mFi Controller software allows you to create rules that trigger actions based on data from your mFi sensors. For example, motion detection could turn a light on, or a high temperature reading could trigger a fan. The mFi platform is compatible with third-party devices, making the options unlimited!

Plug and Play Installation Use standard Ethernet cable to connect machines and sensors. Use WiFi to seamlessly connect mFi nodes to your IP network. Unlimited device scalability.
Powerful Functionality Create powerful relationships between sensors, machines, and powered devices. Cloud and Mobile Support Access multiple mFi networks from any remote location through a web browser. New devices can instantly be discovered and provisioned through the cloud. Sophisticated User Experience From auto-detection of machines through intuitive and powerful rule creation, the mFi Controller transforms a machine network into an automated symphony.

Specifications

Dimensions:
100 x 60 x 27.5 mm (H x W x D)
100 x 60 x 36.5 mm (with Bracket)
Weight: 119 g (with Bracket)
Power Supply: 24V, 0.5A Surge Protection, Integrated PoE Adapter (Included)
Max. Power Consumption: 3 W
Networking Interface: 1 x 10/100 Ethernet Port
Ports: 1 x DB9 Serial Port, 1 x Terminal Block Serial Port
WiFi Standards: 802.11b/g/n
Serial Protocols: RS232, RS422, RS485
Memory: 16 MB RAM, 8 MB Flash
LEDs: 3 LEDs (Power, Ethernet, Status)
Mounting: Wall-Mount Bracket (Included)
Operating Temperature: -10 to 70° C
Operating Humidity: 5 to 80% Condensing

Attachments

Datasheet - mFi_Datasheet_V10.pdf
Quick Start Guide - mFi-mPort_QSG.pdf
User Guide - MFi_User_Guide_V11.pdf
Declaration of Conformity - mPort-S_DoC.pdf
