Ubiquiti AM-5AC21-60 21dBi 5AC Sector antenna

Ubiquiti AM-5AC21-60 21dBi 5AC Sector antenna

Ubiquiti AM-5AC21-60 -5GHz 21dBi 60deg 802.11AC Sector Antenna (2x2 MiMo)

Ubiquiti AM-5AC21-60 21dBi 5AC Sector antenna

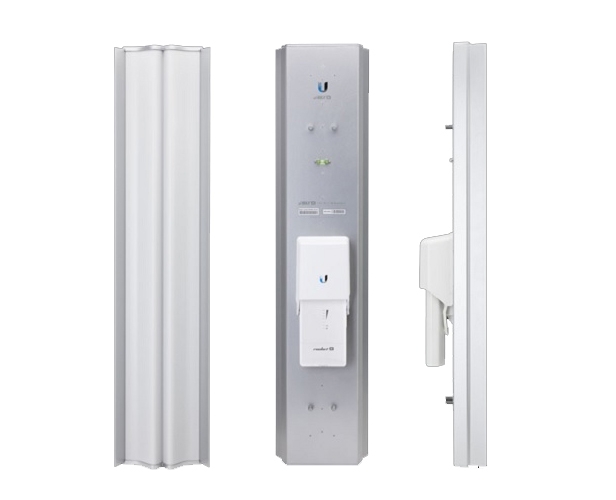

Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
151.80£ 182.16£ <300.00£
150.59£ 180.71£ >300.00£
149.39£ 179.27£ >1000.00£
147.02£ 176.42£ >3000.00£
145.78£ 174.94£ >7500.00£
Quantity:
In stock


Features

The airMAX® 802.11ac Sector Antenna is a 2x2 MIMO sector antenna from Ubiquiti Networks that features significant advances in scalability, noise isolation, and beam performance to complement the Rocket™ 5ac radios.

The airMAX 802.11ac Sector Antenna is highly resistant to noise interference in co-location deployments and feature an innovative deflector design, together with the reduced sidelobes and backlobes, reject interference from other transmitters in the area – potentially on the same tower.

With improved Signal-to-Noise Ratio (S/N or SNR), the airMAX 802.11ac Sector Antenna allows a higher-order modulation to be used, for example, 256QAM rather than 16QAM. This increases the number of bits per second for a fixed bandwidth (or data rate).

Specifications

The airMAX ac Sector Antennas feature significant advances in scalability, noise isolation and beam performance to complement the Rocket5ac radios in Point-to-MultiPoint (PtMP) networks. They are compatible with RocketM5 models; however, optimal performance requires the Rocket5ac.

Frequency Range: 5.10-5.85 GHz
Gain: 21dBi
Polarization: Dual Linear
Cross-pol Isolation: 25dB min
Max VSWR: 1.5:1
Hpol Beamwidth (6dB): 60 deg.
Vpol Beamwidth (6dB): 60 deg.
Elevation Beamwidth: 4 deg.
Electrical Downtilt: 2 deg.
ETSI Specification: EN 302 326 DN2
Dimensions: 29.53 x 8.47 x 3.70in (750 x 173 x 78mm)
Weight: 10.58 lbs (4.8kg)

Pleas note: Rocket Radio not included in package.

Attachments

Datasheet - airmax_ac_sector_antennas_datasheet.pdf
Quick Start Guide - AM-5AC21-60_QSG.pdf
