UBIQUITI AirFiber AF24

UBIQUITI AirFiber AF24

UBIQUITI AF-24, AirFiber 24 GHz Point-to-Point 1.4Gbps+ Radio, worldwide license free

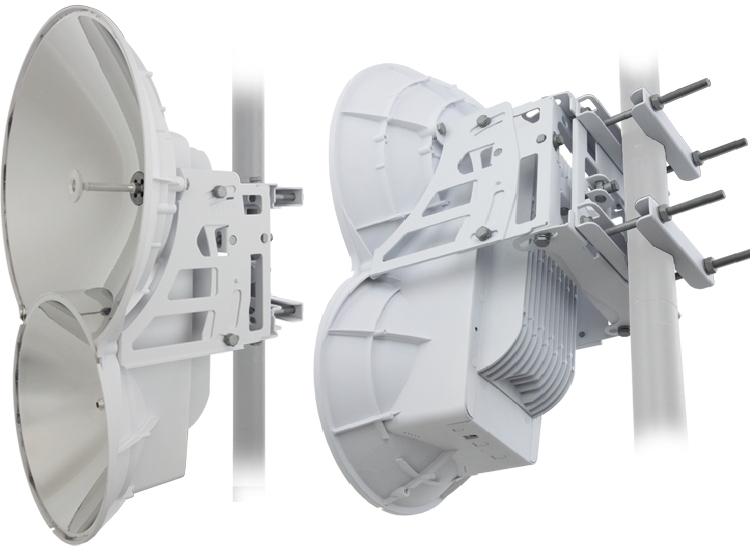

UBIQUITI AirFiber AF24
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
1139.00£ 1366.80£ <300.00£
1139.00£ 1366.80£ >300.00£
1139.00£ 1366.80£ >1000.00£
1119.00£ 1342.80£ >3000.00£
1009.00£ 1210.80£ >7500.00£
Quantity:
In stock


Features

Addressing the Under-served
airFiber core networks backbones can be instantly and cost-effectively deployed anywhere, bringing Internet deep into the unserved areas of the world.

Plug and Play Deployment
Utilizing the worldwide license-free 24GHz band, airFiber can be freely purchased and deployed nearly anywhere. Additionally, the product was designed to be instantly setup and configured.

Revolutionary Performance
With true 1.4Gbps+ data throughput and up to 13 km range, airFiber provides a breakthrough in 24GHz backhaul performance

Hybrid Division Duplex (HDD)
HDD provides the best of both worlds — latency performance of Frequency Division Duplex (FDD) with the spectral efficiency of Time Division Duplex (TDD).

Plug and Play Installation
Utilizing precision mounting hardware combined with a dynamic RSSI indicator, airFiber can be easily deployed by a single installer. Integrated GPS receivers automatically calculate position and timing parameters in the background, providing a true plug and play installation experience.

Specifications

Operating Frequency 24.05 – 24.25 GHz
Dimensions 649 x 426 x 303 mm
Weight 10.5 kg (Mount Included)
Max. Power Consumption < 50W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Operating Temperature -40 to 55°C (-40 to 131° F)
LEDs (8) Status LEDs: Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.4+ Gbps
Maximum Range 13+ km
Packets per Second > 1 Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed

Radio Frequency

GPS GPS Clock Synchronization
Transceiver
EIRP ~33 dBm
Frequency Accuracy ±2.5 ppm without GPS Synchronization
±0.2 ppm with GPS Synchronization
Channel Bandwidth 100 MHz
Operating Channels 24.1 GHz, 24.2 GHz
Modulation 64QAM MIMO
16QAM MIMO
QPSK MIMO
QPSK SISO
Integrated Split Antenna
TX Gain 33 dBi
RX Gain 38 dBi
Beamwidth < 3.5°
Front-to-Back Ratio 70 dB
Polarity Dual-Slant Polarization
Cross-Polarity Isolation > 28 dB

Attachments

Airfiber Datasheet - airFiber_DS.pdf
Airfiber Case Study - airFiber_Case_Study_1.pdf
Airfiber Design Guide - airFiber_Design_Guide.pdf
Airfiber User Guide - airFiber_AF24_UG.pdf
Airfiber Quick Setup Guide - airFiber_AF24_QSG.pdf
Airfiber CE Declaration - AirFiber24_CE_Declaration.pdf
