UBIQUITI NETWORKS Products >

Ubiquiti TOUGH Cable Carrier

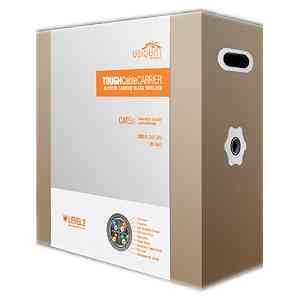

Ubiquiti TOUGH Cable Carrier

Ubiquiti TOUGH Cable Carrier - Category 5e Outdoor Carrier Class Shielded Cable. Sold in 1000ft (304.8m) lengths and 24 AWG

Ubiquiti TOUGH Cable Carrier
Price: Price inc VAT: For orders
(total sum):
164.94£ 197.93£ <300.00£
162.54£ 195.05£ >300.00£
160.15£ 192.18£ >1000.00£
157.75£ 189.30£ >3000.00£
155.38£ 186.46£ >7500.00£
Quantity:
In stock


Features

Protect your networks from the most brutal environments with Ubiquiti’s industrial-grade shielded Ethernet cable, TOUGHCable.

Increase Performance

Dramatically improve your Ethernet link states, speeds, and overall performance with Ubiquiti TOUGHCables.

Extreme Weatherproof

TOUGHCables have been built to perform even in the harshest weather and environments.

ESD Damage Protection

Protect your networks from devastating electrostatic discharge (ESD) attacks.

Extended Cable Support

TOUGHCables have been developed to increase power handling performance for extended cable run lengths.

TOUGHCable is currently available in two versions: PRO Shielding Protection and CARRIER Shielding Protection.
TOUGHCable Carrier

Category 5e outdoor carrier-class shielded cable that features an Anti-Crosstalk Divider, additional shielding and is rated to provide optimal performance on Gigabit Ethernet networks.

Specifications

Cable CAT5e, Shielded
Ethernet Support Up to 1 Gbps
Conductor Wire Gauge 24 AWG
Conductor Solid Bare Copper
Conductor Diameter 0.500 ± 0.005 mm
Insulation Type Solid PE
Insulation Thickness AVG: 0.295 mm, MIN: 0.29 mm
Insulation Diameter 1.16 ± 0.02 mm
Separation (Polyester Wrapping) Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk Divider LDPE: 4.2*0.3 mm
Cable Shield (Aluminum Foil) Thick: 0.060 mm, Extent: 20 mm
ESD Drain Wire 0.4 TC
Rip Cord Yes
Secondary Cable Shield (Braid) 16*8*0.16AA Density: 95%
Jacket Material PE
Jacket Thickness AVG: 0.52 mm, MIN: 0.46 mm
Jacket Outer Diameter 6.8 ± 0.30 mm
Jacket Color Gray
Reference Standard ISO/IEC 11801, TIA/EIA568B.2

Attachments

Datasheet - TOUGHCable_Datasheet.pdf
Quick start guide - TOUGHCable_CARRIER_QSG.pdf
