Ubiquiti Airmax Titanium 5Ghz AM-V5G-TI Sector

Ubiquiti Airmax Titanium 5Ghz AM-V5G-TI Sector

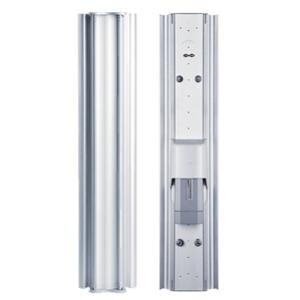

Ubiquiti Airmax Titanium 5Ghz AM-V5G-TI Variable Beam Sector 60-120 Deg Antenna

Ubiquiti Airmax Titanium 5Ghz AM-V5G-TI Sector
Price: Price inc VAT: For orders
(total sum):
166.11£ 199.33£ <300.00£
161.34£ 193.61£ >300.00£
157.75£ 189.30£ >1000.00£
154.18£ 185.02£ >3000.00£
150.59£ 180.71£ >7500.00£
Quantity:
In stock


Features

Revolutionary, Cost/Performance Breakthrough Carrier Class, 5GHz AirMax 2x2 MIMO Basestation Sector Antennas.

Adjustable 60-120 Degree 5 Ghz MIMO 19-21 dbi Sector cable
Powerful airMAX™ BaseStation Platform

Building upon our market-leading Rocket™ series, the Rocket™M Titanium features enhanced radio perfomance and superior durability. Thoughtfully engineered with Gigabit Ethernet, RocketM Titanium models achieve massive throughput increase along with unleashed speed. Its Carrier-Class capabilities link distances up to 50+ km and provide breakthrough speed of up to 150+ Mbps real TCPI/IP throughput.

The RocketM Titanium enclosure was specifically designed to improve performance in harsh RF environments and in extreme weather conditions. Enclosed in aircraft-grade aluminum, the RocketM Titanium is a rugged, high-power, linear 2x2 MIMO radio.

Rocket devices may be deployed in PtP bridging or PtMP airMAX BaseStation applications. They can be paired with your choice of airMAX BaseStation™ Sector or RocketDish™ antennas. This versatility gives network architects unparalleled flexibility and convenience.
airMAX Technology

Unlike standard WiFi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller. This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It significantly improves performance in throughput, reduces latency, and increases scalability compared to all other outdoor systems in its class.

Intelligent QoS Priority is given to voice or video for seamless streaming.

Scalability High capacity and scalability.

Long Distance Capable of high-speed links up to 50+ km.

Latency Multiple features dramatically reduce noise.
GPS Synchronization*

RocketM5 Titanium units have integrated Ubiquiti airSync™ technology. airSync enhances the hardware and software of the Rocket to utilize GPS signals for precision timing.

GPS Signal Reporting airOS™ was upgraded to take full advantage of the new GPS hardware in Rocket GPS units. Easily manage and monitor GPS satellite signals.

No Co-Location Interference Synchronized transmission among Rocket GPS powered BaseStations effectively eliminates co-location interference.

External GPS Antenna The RocketM5 Titanium includes a weatherproof external GPS antenna.
**Antenna with Rocket Accessories – Rocket not included

Specifications

Dimensions 721 x 149.1 x 75.7 mm
Weight 3.72 kg (with Brackets)
Frequency Range 5.45 - 5.85 GHz
Beamwidth Angles 60˚/ 90˚/ 120˚
Gain (Beamwidth Dependent) 21 dBi @ 60˚
20 dBi @ 90˚
19 dBi @ 120˚
Electrical Downtilt 2˚
Polarization Dual Linear
Cross-Pol Isolation 20 dB Min.
F/B Ratio 30 dB
Max. VSWR 1.5:1
RF Connectors 2 SMA Connectors (Weatherproof )
Compatible Radios RocketM5
RocketM5 GPS
RocketM5 Titanium
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC
Wind Survivability 160 mph
Wind Loading 37 lbs @ 120 mph
