Ubiquiti Airmax Titanium 2.4Ghz AM-V2G-TI Sector

Ubiquiti Airmax Titanium 2.4Ghz AM-V2G-TI Sector

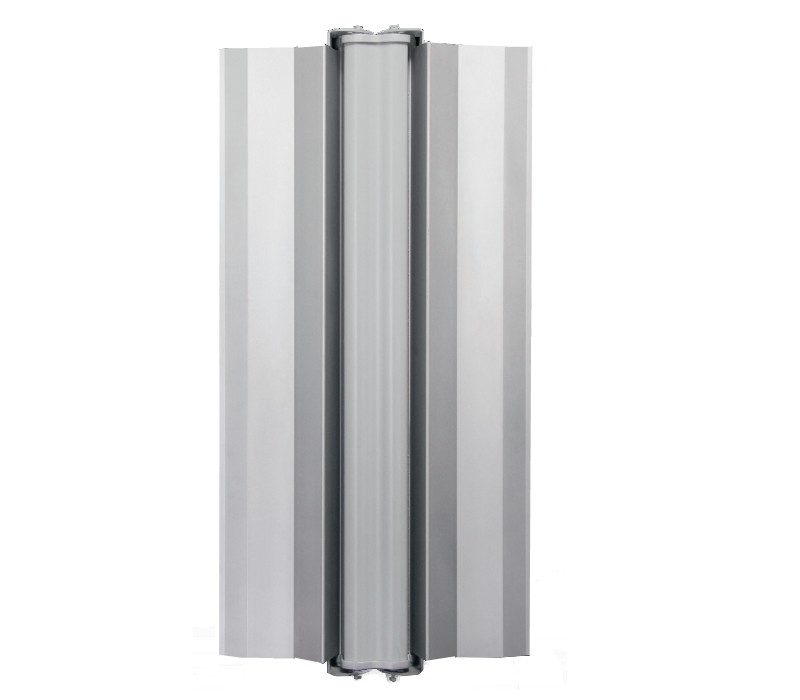

Ubiquiti Airmax Titanium 2.4Ghz AM-V2G-TI Variable Beam Sector 60-120 Deg Antenna

Ubiquiti Airmax Titanium 2.4Ghz AM-V2G-TI Sector
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
205.57£ 246.68£ <300.00£
203.18£ 243.82£ >300.00£
200.78£ 240.94£ >1000.00£
197.19£ 236.63£ >3000.00£
194.84£ 233.81£ >7500.00£
Quantity:
In stock


Features

Advanced Carrier-Class PtMP Basestation Antenna

Introducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology.

Reduced Co-Location Interference

Drawing on Ubiquiti’s depth of electrical and mechnical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co-location deployments.

Adjustable Beamwidth Configuration

Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60°, 90°, or 120° sector. Antenna gain increases respectively with each decrease in beamwidth. Gain is 19 dBi at 120°, 20 dBi at 90°, and 21 dBi at 60°.

Increased Performance

The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket™M Titanium.

20% increase in performance with PtMP networks
Up to 90% performance improvement in a co-location environment
Increased durability in harsh weather

Easily Mount and Protect Your Rocket

The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom-designed Protective Shroud helps to shield your Rocket from the elements.

Specifications

Dimensions 773 x 372 x 120 mm
Weight 6.40 kg (with Brackets)
Frequency Range 2.3-2.6 GHz
Beamwidth Angles 60˚/ 90˚/ 120˚
Gain
(Beamwidth Dependent)
17 dBi @ 60˚
16 dBi @ 90˚
15 dBi @ 120˚
Electrical Downtilt 4˚
Wind Survivability 125 mph
Wind Loading 92 lbf @ 100 mph
Polarization Dual Linear
Cross-Pol Isolation 25 dB Typ.
F/B Ratio 30 dB Typ.
Max. VSWR 1.5:1
RF Connectors 2 SMA Connectors (Weatherproof)
Compatible Radios RocketM2 Titanium
RocketM2
Mounting Pole Mount (Kit Included)
ETSI Specification EN 302 326 DN2
Certifications CE, FCC, IC

Attachments

Datasheet - airMAX_Ti_Sector_DS.pdf
Quick Start Guide - airMAX_Sector_AM-V2G-Ti_QSG.pdf
