ITELITE SECTOR-50017V

ITELITE SECTOR-50017V

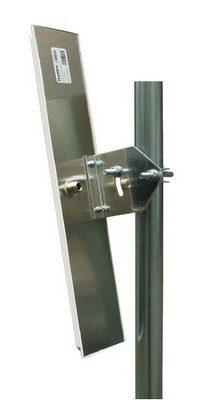

17dBi 5Ghz Sector Microstrip Antenna (V-pol.), 90 degree, with low side lobe level (RSLL technology)

ITELITE SECTOR-50017V
Price: Price inc VAT: For orders
(total sum):
56.18£ 67.42£ <300.00£
53.79£ 64.55£ >300.00£
51.40£ 61.68£ >1000.00£
49.00£ 58.80£ >3000.00£
46.62£ 55.94£ >7500.00£
Quantity:
In stock


Features

Sector antenna working in 5 GHz band with 17 dBi gain and vertical polarization. Because of reduced sidelobes, antenna keeps clear strong signal even in crowded radio enviroment. It�s resistant to interference from other networks and does not disrupt to other. Antenna features no beam squint due to frequency change, it means that decreasing of data throughput or even loss of a link after frequency channel change does not occur. Perfectly designed for operation under severe weather conditions. A proper materials allow operation in the salt water environment without corrosion. High quality construction of pole mounting elements guarantees an easy elevation adjust.

Specifications

Electrical Properties:

Frequency 4900� 6000 MHz
Gain 17 dBi
Polarization vertical
Beamwidth deg horizontal 90�
Beamwidth deg vertical 7�
VSWR < 1.5
Impedance 50 Ohm
Sidelobe suppresion > 20 dB
Front to back ratio > 25 dB
Lighting protection DC ground

Mechanical Properties:

Technology Microstrip
Input Connector N-type / female
Dimensions 450x93x18 mm / 18x3.7x0.7"
Weight 0.6 kg / 1.3 lbs
Radome material UV � resistant plastic
Color White
Base material High quality aluminium alloy
Construction All � weather operation
Mounting Kit 50.8 mm / 2"
