UBIQUITI NETWORKS Products >

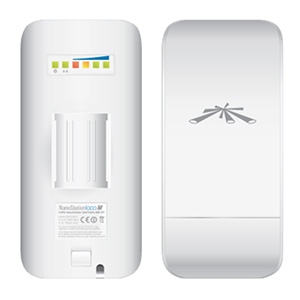

NSLM5 UBIQUITI NanoStation Loco M5

NSLM5 UBIQUITI NanoStation Loco M5

Ubiquiti NanoStation M5 loco Wireless CPE with integrated 2x13dBi Mimo antenna

NSLM5 UBIQUITI NanoStation Loco M5
Price: Price inc VAT: For orders
(total sum):
55.59£ 66.71£ <300.00£
54.98£ 65.98£ >300.00£
54.25£ 65.10£ >1000.00£
53.56£ 64.27£ >3000.00£
52.58£ 63.10£ >7500.00£
Quantity:
In stock


Features

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

150+ Mpbs real outdoor throughput and up to 15km+ range. Featuring 2x2 MIMO technology, the new NanoStation links significantly faster and farther than ever before. New antenna array designs featuring 16dBi dual-polarity gain at 5GHz and 11dBi dual-polarity 11dBi at 2.4GHz. Both with optimized cross-polarity isolation and in a compact form-factor. Secondary ethernet port with software enabled POE output for seamless IP Video integration. Remote hardware reset circuitry of NanoStation M allows for device to be reset remotely from power supply location. In addition, any NanoStation can easily become 802.3af 48V compliant through use of Instant 802.3af adapter.

Specifications

SYSTEM INFORMATION

Processor Specs Atheros MIPS 24KC, 400MHz
Memory Information 32MB SDRAM, 8MB Flash
Networking Interface 1 X 10/100 LAN (Cat. 5, RJ-45) Ethernet Interface

REGULATORY / COMPLIANCE INFORMATION

Wireless Approvals FCC Part 15.247, IC RS210, CE
RoHS Compliance YES


PHYSICAL / ELECTRICAL / ENVIRONMENTAL

Enclosure Size 163 x 31 x80
Weight 0.18kg
Enclosure Characteristics Outdoor UV Stabalized Plastic
Mounting Kit Pole Mounting Kit included
Max Power Consumption 5.5 Watts
Power Supply 24V, 0.5A surge portection integrated, EU power cord.
POE adapter Included
Power Method Passive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature -30C to +80C
Operating Humidity 5 to 95% Condensing
Shock and Vibration ETSI300-019-1.4

INTEGRATED 2x2 MIMO ANTENNA

Frequency Range 4.9-6.0 GHz
Max VSWR 1.4:1
Gain 13 dBi
H-pol Beamwidth 45 deg.
V-pol Beamwidth 45 deg.
Polarization Dual Linear
Cross-pol Isolation 20 dB minimum
Elevation Beamwidth 45 deg.

OPERATING FREQUENCY 5470MHz-5825MHz

Attachments

Datasheet - loco_m5_datasheet.pdf
