Routerboards (Mikrotik) >

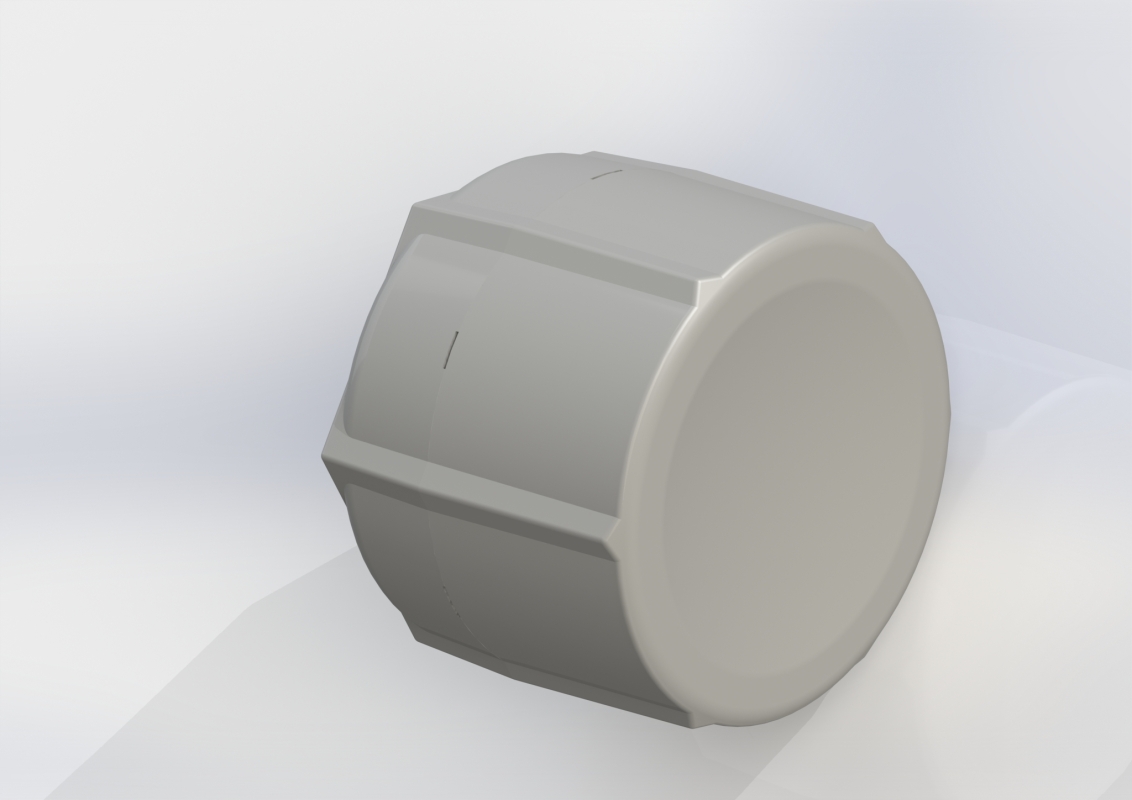

MIKROTIK SXT HG5 ac RBSXTG-5HPacD-HG

MIKROTIK SXT HG5 ac RBSXTG-5HPacD-HG

MIKROTIK SXT HG5 ac RBSXTG-5HPacD-HG unit with 17dBi 24 degree Dual Chain 5Ghz 802.11ac integrated antenna, 720MHz CPU, 128MB RAM, Gigabit Ethernet, USB, POE, PSU, pole mount, RouterOS L4

MIKROTIK SXT HG5 ac RBSXTG-5HPacD-HG
Price: Price inc VAT: For orders
(total sum):
80.09£ 96.11£ <300.00£
78.89£ 94.67£ >300.00£
77.68£ 93.22£ >1000.00£
76.49£ 91.79£ >3000.00£
75.29£ 90.35£ >7500.00£
Quantity:
In stock


Features

The new SXT HG5 ac RBSXTG-5HPacD-HG High Gain version of our popular SXT G 802.11ac model, equipped with an improved 5GHz 17dBi 24 degree antenna, Gigabit Ethernet port and
RouterOS L4 license.
Like all our SXT units, this is a neat and compact outdoor device that comes
with all necessary accessories included. Use it as a wireless AP, for point
to point, or as a CPE unit. 802.11ac technology provides data rates up to
866Mbit, but is also backwards compatible with 802.11a/n.
The SXT HG supports 10-57V 802.3af/at and passive PoE power input.

Specifications

CPU QCA9557 720MHz CPU
Memory 128MB DDR2 RAM
Ethernet 1x 10/100/1000 Mbit/s Gigabit Ethernet with Auto-MDI/X
Wireless cards Onboard dual chain 5GHz 802.11ac QCA9882 wireless module;
10kV ESD protection on each RF port
Extras Reset switch, beeper, USB 2.0 port, voltage and temperature monitors
LEDs Power LED, Ethernet LED, 5 wireless signal LED
Power input PoE in: 10-57V 802.3af/at and passive PoE
Packaged with 24V DC 0.8A power adapter and passive Gigabit PoE injector
Dimensions 140x140x56mm. Weight without packaging, adapters and cables: 265g
Max consumption 12W at 24V
Operating Temp -30C .. +80C
OS MikroTik RouterOS, Level4 license (AP support)
Package contains SXT wireless device with integrated antenna, pole mounting bracket, mounting ring,
Gigabit PoE injector, power adapter, quick setup guide
TX/RX at MSC9 22dBm / -72dBm
TX/RX at MCS0 30dBm / -96dBm
TX/RX at MCS7 27dBm / -77dBm
TX/RX at 6Mbit 31dBm / -96dBm
TX/RX at 54Mbit 28dBm / -81dBm
Antenna Dual pol. 24deg, 5GHz antenna, 17dBi gain, -30db port to port isolation

Attachments

Datasheet - RBSXTG_5HPacD_HG.pdf
CE Declaration - SXT_HG5_ac_CE_DoC.pdf
