MIKROTIK RB922UAGS-5HPacD (RouterOS Level 4)

MIKROTIK RB922UAGS-5HPacD (RouterOS Level 4)

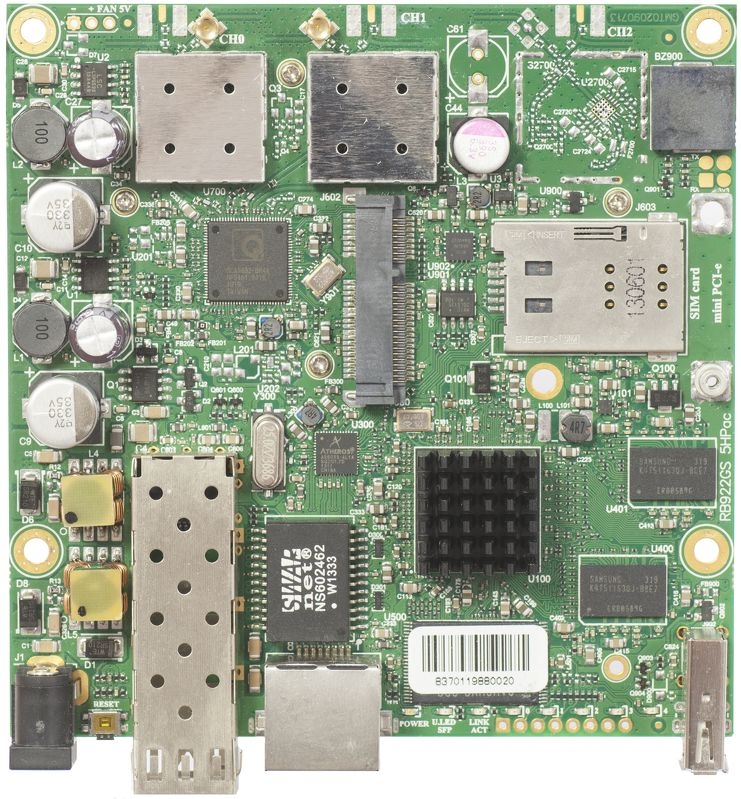

RouterBOARD 922UAGS-5HPacD with 720MHz Atheros CPU, 128MB RAM, 1xGigabit LAN, USB, 1xSFP, miniPCIe, SIM slot, built-in 5Ghz 802.11a/c 2x2 two chain wireless, 2xMMCX connectors

MIKROTIK RB922UAGS-5HPacD  (RouterOS Level 4)
Click on photo to expand
Price: Price inc VAT: For orders
(total sum):
68.12£ 81.74£ <300.00£
66.94£ 80.33£ >300.00£
65.73£ 78.88£ >1000.00£
64.54£ 77.45£ >3000.00£
63.36£ 76.03£ >7500.00£
Quantity:
Out of stock


Features

RouterBOARD RB922UAGS-5HPacD is a very versatile wireless router, perfect for assembling your own solution. It supports the new 802.11ac standard for high speed wireless (up to 866Mbit datarate and 20/40/80MHz channels). The device has ports and slots for many uses: 1x SFP cage, miniPCIe slot with SIM for 3G/4G modem or another wireless card, USB port, Gigabit Ethernet port and two MMCX connectors for the built in powerful 1300mW 802.11ac 2x2 radio. Comes with RouterOS L4 (AP) license.

Specifications

Product code RB922UAGS-5HPacD
CPU nominal frequency 720 MHz
SFP DDMI yes
CPU core count 1
Size of RAM 128 MB
10/100 Ethernet ports None
10/100/1000 Ethernet ports 1
MiniPCI slots 0
MiniPCI-e slots 1
Wireless chip model QCA9882-BR4A-R
Wireless standards 802.11ac
Number of USB ports 1
Power Jack 1
802.3af support no
Supported input voltage 8 V - 30 V
PoE out No
PoE in Yes
Voltage Monitor Yes
CPU temperature monitor No
PCB temperature monitor Yes
Dimensions 105x105mm
Operating System RouterOS
License level 4
Antenna gain DBI No
Current Monitor No
CPU QCA9557-AT4A-R
Max Power consumption 17 W
SFP ports 1
SFP+ ports None
USB slot type USB type A
Number of chains 2
Serial port None

Attachments

Datasheet - rb922UAGS-5hpacd_Datasheet.pdf
CE Declaration - NetBox5_CE_DoC.pdf
