MIKROTIK RB/411 (RouterOS Level 3)
MIKROTIK RB/411 (RouterOS Level 3)

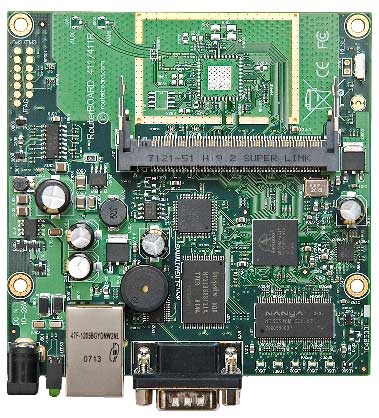

RouterBOARD RB411 Atheros AR7130 300MHz CPU, 32MB RAM, one LAN, one MiniPCI, 64MB NAND Storage with RouterOS Level 3 (CPE support)
Features
OS Mikrotik RouterOS Level 3
CPU Atheros AR7130 300MHz
Memory 32MB onboard SDRAM
Storage 64MB onboard NAND
Ethernet One 10/100Mbit port
One miniPCI slot
Compliance CE certified
Specifications
CPU Atheros AR7130 300MHz network processor
Memory 32MB DDR SDRAM onboard memory
Boot loader RouterBOOT
Data storage 64MB onboard NAND memory chip
Ethernet One 10/100 Mbit/s Fast Ethernet port with Auto-MDI/X
miniPCI One MiniPCI Type IIIA/IIIB slot
Extras Reset switch, Speaker
Serial port One DB9 RS232C asynchronous serial port
LEDs Power, NAND activity, 5 user LEDs
Power options Power over Ethernet: 12..28V DC (except power over
datalines). Power jack: 12..28V DC
Dimensions 10.5 cm x 10.5 cm (4.13 in x 4.13 in) Weight: 82 g (2.9 oz)
Power consumption ~3W without extension cards, maximum – 12 W
Operating System MikroTik RouterOS v3, Level3 license
Attachments
User Manual -
RB411_series_user_manual.pdf
Startup guide -
RB411_startup_guide.pdf
Datasheet -
RB411_datasheet.pdf
RouterOS installation program -
netinstall.zip
Routerboard configuration console -
winbox.exe
Declaration of conformity -
RB411_declaration_of_conformity.pdf
